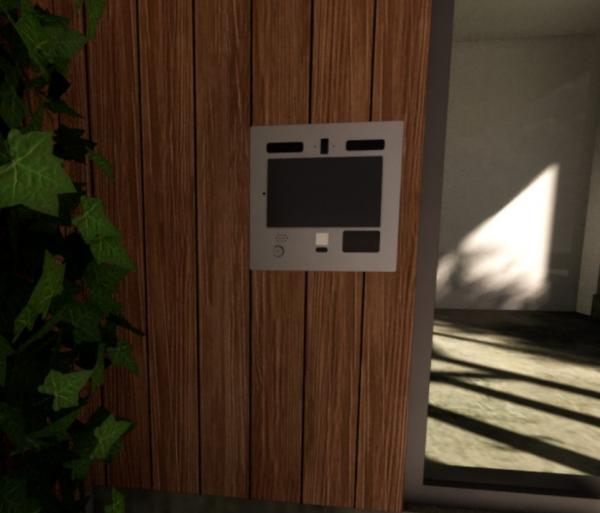

A quick model of the Butterfly MX 11.6" screen recessed entry panel for entry access for apartment buildings.

This family is wall hosted, but you can also open the hosted panel family to insert into a different family type if desired.

Materials are parameter controlled, dimensions are not.  I included a parameter for wall assembly depth in case you need to offset the box for any specific additional depth at unique conditions.

Enjoy!

Product Version: Revit Architecture 2020

Uploaded By: stohner26
Uploaded On: Wed, Aug 5, 2020
