GLB with SLope Cut Ends

Login or Join to download.
150 Downloads

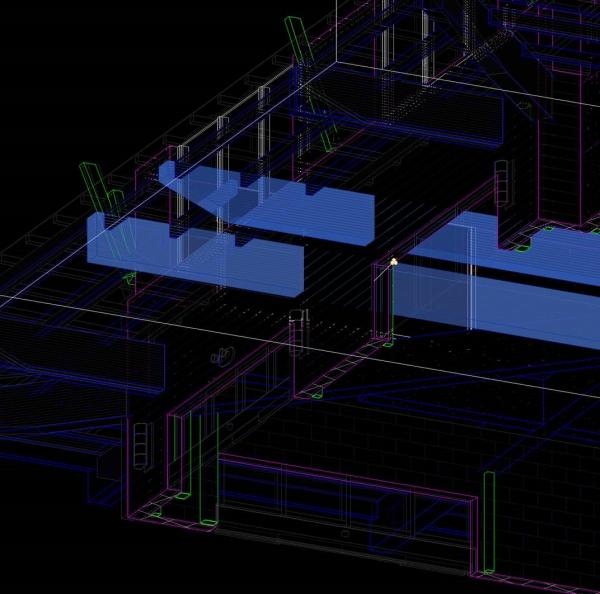

Uses STD REvit GLB family modified to slope cut ends of beams to match architectural requirements Use SlopeHeight and SlopeLength variables to cut the beam. These are schedulable.

CSI Division: 06 70 00 Structural Composites RevitCity Division: Structural > Framing Product Version: Revit Structure 2016	Uploaded By: robt Uploaded On: Mon, Mar 26, 2018

Login or Join to download.

Comments

Tue, Mar 27, 2018 at 2:01:15 PM

itsmyalterego

active

itsmyalterego Avatar

Joined Thu, May 28, 2009
4 Stars from 16 Votes

This user is offline

I made this exact same family for Glulam and wideflanges a few weeks back--was very curious who you were until I saw it was version 2016 whereas I use 2018.

Funny coincidence!

Mon, Apr 2, 2018 at 4:04:32 PM

robt

active

Joined Wed, Jan 21, 2009
5 Stars from 1 Votes

This user is offline

Seems like a happy coincidence... We had a project come up that seemed worth to put in the effort...

I did v 2016 to keep it backward compaitible with our current office standard...
