Corrugated Mullion
8717 Downloads
|
 |
| |
This is a profile for a corrugated mullion to make walls with corrugated metals.
To use the file load the profile into the project. Go to mullion and create a duplicate of the mullion and name it corrugated and select the profile you loaded in and set the material you want and click ok. Now Create a new curtain wall set the vertical grid to fixed distance and the spacing to 6-1/2" check the box for adjust for mullion size.
Set the horizonatl grid to none. Set the interior type vertical mullion to the mullion youy made. Now you are ready to draw currgated metal walls.

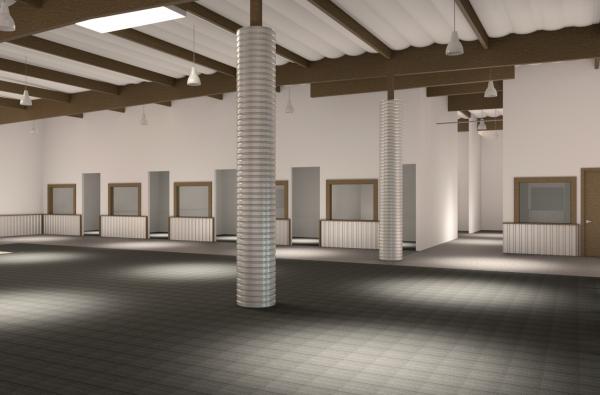

Renders perfectly and works for walls and roofs. |
|
CSI Division: 05 75 00 Decorative Formed Metal
RevitCity Division: Walls > Curtain Wall Panels
|
Uploaded By: webb64b
Uploaded On: Mon, Dec 16, 2013
Original Creator: Brandon Webb
|
|
Comments
|
Thu, Jun 14, 2018 at 1:10:16 PM
#1
|
|
active
Joined Mon, Apr 30, 2012
No rating This user is offline |
Everything works fine except the 6 1/2" spacing- when you try to get the mullions spaced perfectly for butt-joining, Revit says the spacing is too small and it cannot create the mullions, so it will delete them. Any spacing above 6 1/2" works...
|
|
|
Tue, Aug 27, 2019 at 11:47:14 PM
#2
|
|
active
Joined Fri, Mar 15, 2019
No rating This user is offline |
This method is awesome!!! Thanks!!!!!
|
|
|
Wed, Feb 12, 2020 at 6:54:39 PM
#3
|
|
active
Joined Wed, Jan 15, 2014
No rating This user is offline |
This is fantastic! I was not sure at first but instructions made it perfectly doable and so easy. Thank you!
|
|
|
Fri, Jul 2, 2021 at 5:09:42 PM
#4
|
|
active
Joined Tue, Jan 9, 2018
No rating This user is offline |
thanks a lot
|
|
|
Thu, Mar 31, 2022 at 4:11:33 AM
#5
|
|
active
Joined Tue, Oct 17, 2017
No rating This user is offline |
Brilliant!!!!
|
|
|
