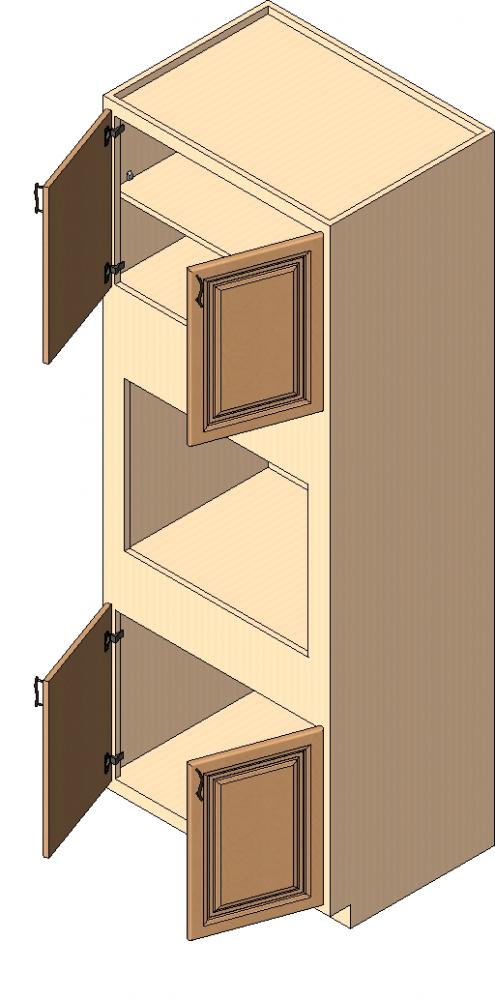

This American Woodmark model is their single oven, 90" high, 4 butt doors with shelf cabinet.   American Woodmark offers this cabinet in three widths:   27", 30", and 33" and those are the three family types. All doors operate independently. The oven width for each cabinet size is preset to the published size, but I've exposed the oven opening parameters as instance parameters if you want to cut a custom opening.

The best practice for operating the doors is to open and close them in angular increments of something less than 90° in a single operation. For example, if you want to open them to 90°, you could open them initially to 50° and then go to 90°.  Close them the same way.

Product Version: Revit Architecture 2013

Uploaded By: kilmer
Uploaded On: Sat, Mar 16, 2013
Original Creator: Eugene N. Kilmer/American Woodmark
