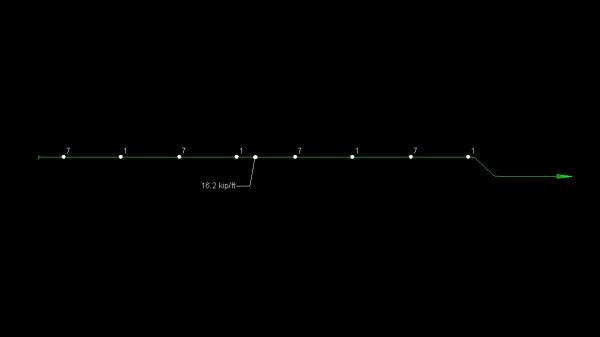

These is a 2d Post Tension Cable call out and symbols. Below is a list of the files that are used with it. Please let me know if you see something that would make these better.

PT - Post Tension.rfa is the main file. It's the one will use to place your cable. I have 4 Family Types setup in it. It can be easily changed up to do what ever you need.

PT - Force Tag.rfa is the tag that you need to call out the Force on that Cable. There are 2 types setup here. one for Kips Per FT and one for Total Kips.

PT - Text is used to show the height of the cable. PT-text are just symbols you can place them were ever you need them.

PT - Offset End. I made it up so if i need to work around an opening in the slab. It's still in Beta. It will get you around the opening but you are going to have to work for it. I'm hoping to think of a better way to do it later on.

You will also need to add two Parameters to your Shared Parameters. One called FORCE for Discipline Structural and Type of Parameter Force. The other is FORCE PER FOOT for Discipline Structural and Type of Parameter Linear Force.

Product Version: Revit Structure 2013

Uploaded By: Cadman202
Uploaded On: Tue, Feb 5, 2013
Original Creator: cadmam202
