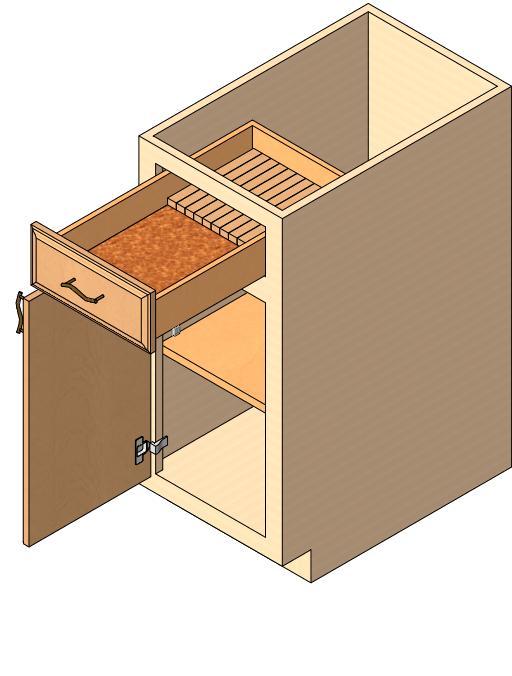

This rather complicated casework family is American Woodmark's one door, one drawer, one adjustable shelf, one factory installed drawer accessory kit base cabinet.  American Woodmark offers four standard cabinet widths with eight drawer accessory kit permutations per width.  I've made all permutations family types, so there are 32 types.  The door opens and the drawer slides out.  There is a control for sliding the accessory back to clear the drawer, although some of the accessories shouldn't be moved.  For example, the chopping block is designed to slide back into the cabinet so you have access to the drawer contents, but the spice accessory sits in the bottom of the drawer and should not be moved.

I've noticed that sometimes it is problematic to try to change the type of a model you've already inserted.  If this happens, delete the inserted model and reinsert it with the desired type pre-selected.

Product Version: Revit Architecture 2012

Uploaded By: kilmer
Uploaded On: Mon, May 21, 2012
Original Creator: Eugene N. Kilmer/American Woodmark
