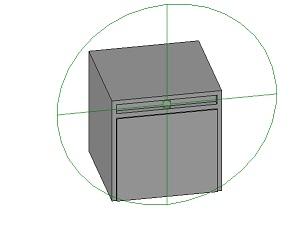

Simple Transformer.  The origin is the bottom center.  Similar to transformer thats out of the box.  I created an elevation parameter.  Many times we have xfmr's hanging to conserve space.  Since there isnt a set houskeeping pad size thats ever used I didnt include it.  Sketch out an extrusion and make the pad 3".  So the elevation of the transformer would be 3".  Hope that makes sense.  Let me know if it works.  Its been tested an no issues that I can see.

Product Version: Revit MEP 2010

Uploaded By: CADDmancan
Uploaded On: Wed, Feb 2, 2011
Original Creator: Rob McC
