Forums >> Revit Building >> Technical Support >> Help needed with external brick leaf wrap to cover window frame. RA2008

Gils

active

Joined: Fri, Sep 7, 2007
12 Posts
No Rating

I'm sure someone already has had this issue.

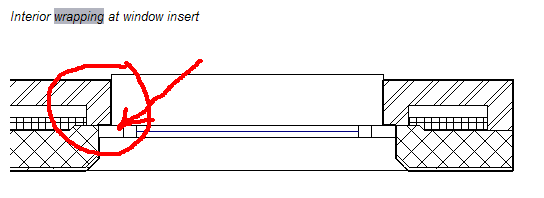

 I'm trying to create window type that fits into brick cavity wall. External brick leaf should cover the window frame 20mm on each side as seen on the image. Image was taken from the help file so it is possible, but how?

 Thanks in advance.
