Forums >> Revit Building >> Technical Support >> vertical joints in hosted wall sweep?

skibum71

active

Joined: Wed, Dec 6, 2006
16 Posts

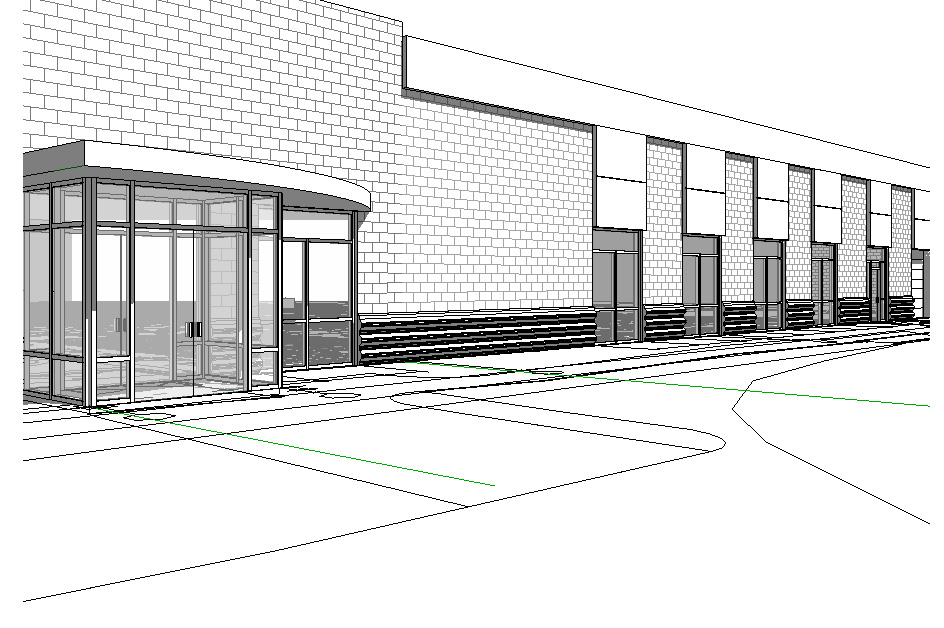

Hi all.  I'm using revit architecture 2008 and am trying to figure out how to add vertical joints in a wall sweep.  i'm showing dryvit added to an existing masonry wall (above windows), and need to show these joints but don't have much experience in making families.  I only have about a month of revit use.  Making the horizontal joints was easy enough, but I can't seme to figure out the vertical ones.  Any ideas?  Is there a way to edit these in place with a void extrusion or something???  Any help would be appreciated!  Thanks in advance.

Attached Images
