Forums >> Revit Building >> Technical Support >> Rendering Curved Surfaces
|
|
active
Joined: Sat, Oct 25, 2003
411 Posts
![3.5 Stars: 5 Votes](/images/stars_3.5.gif) |

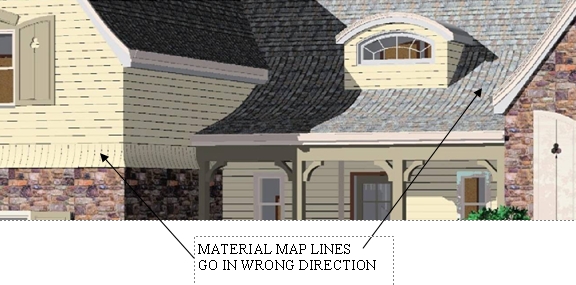

Is there a way to make rendering maps NOT go in the wrong direction on curved surfaces as in the attached jpg?
|
This user is offline |
View Website
|
![](images/spacer.gif) |
|
active
![rkitect Avatar](user_avatar/4651.jpg)
Joined: Thu, Dec 16, 2004
792 Posts
![4 Stars: 29 Votes](/images/stars_4.gif) |
My only solution is not one you'll like.. make a material (material a rotated) witht the material map rotated 90deg and apply it to that part of the geometry.
There's probably a better way.. I just don't know it =(
-----------------------------------
-//------------------------
Carl - rkitecsure[at]gmail.com
Need help? I'm probably in my chat room!
You fell victim to one of the classic blunders. The most famous is never get involved in a land war in asia, but only slightly less well known is this! Never go in against a Sicilian when death is on the line! |
This user is offline |
View Website
|
![](images/spacer.gif) |
active
Joined: Sat, Oct 25, 2003
411 Posts
![3.5 Stars: 5 Votes](/images/stars_3.5.gif) |

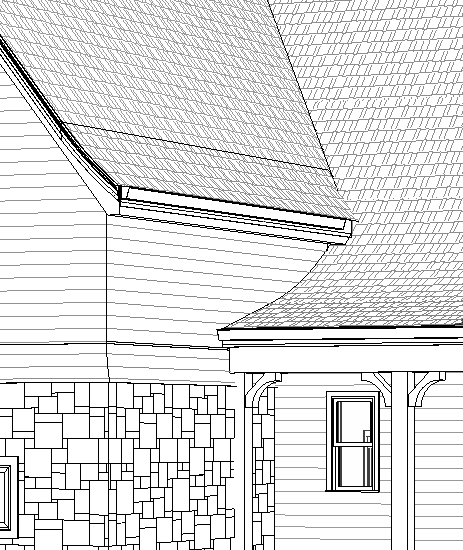

That's not a bad idea. There area limited number of curved surfaces. The part that is nutty is that the curved surfaces behave correctly in "surface pattenr", see atached. Somethimes Revit feels like a work in progress, lo these many years.
|
This user is offline |
View Website
|
![](images/spacer.gif) |
active
Joined: Sat, Oct 25, 2003
411 Posts
![3.5 Stars: 5 Votes](/images/stars_3.5.gif) |

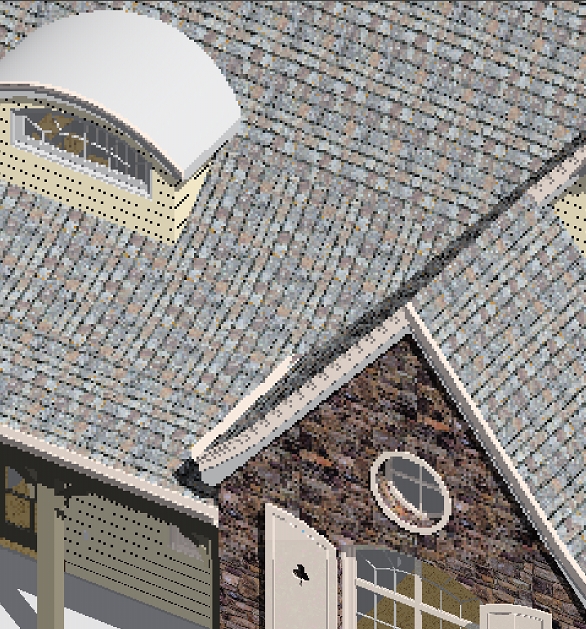

The idea works where the materials are separated into "curves" and "straights". Bad results where there is a straight line and curve all in one solid. See attached. A Revit based solution is needed. But good try by you, I used it as much as possible.
|
This user is offline |
View Website
|
![](images/spacer.gif) |
active
![rkitect Avatar](user_avatar/4651.jpg)
Joined: Thu, Dec 16, 2004
792 Posts
![4 Stars: 29 Votes](/images/stars_4.gif) |
The only other option I can give is to make an in-place family that is extruded to the same sahape as the roof, apply the material to the new in-place family which should work correctly since it is a single geometry and not multiple geometries joined together.
GL
-----------------------------------
-//------------------------
Carl - rkitecsure[at]gmail.com
Need help? I'm probably in my chat room!
You fell victim to one of the classic blunders. The most famous is never get involved in a land war in asia, but only slightly less well known is this! Never go in against a Sicilian when death is on the line! |
This user is offline |
View Website
|
![](images/spacer.gif) |
