Forums >> Revit Structure >> Technical Support >> Roof plane Ridge, Hip and Valley locations. (Roof bu footprint)

purgeme2

active

Joined: Tue, Jul 5, 2011
5 Posts
No Rating

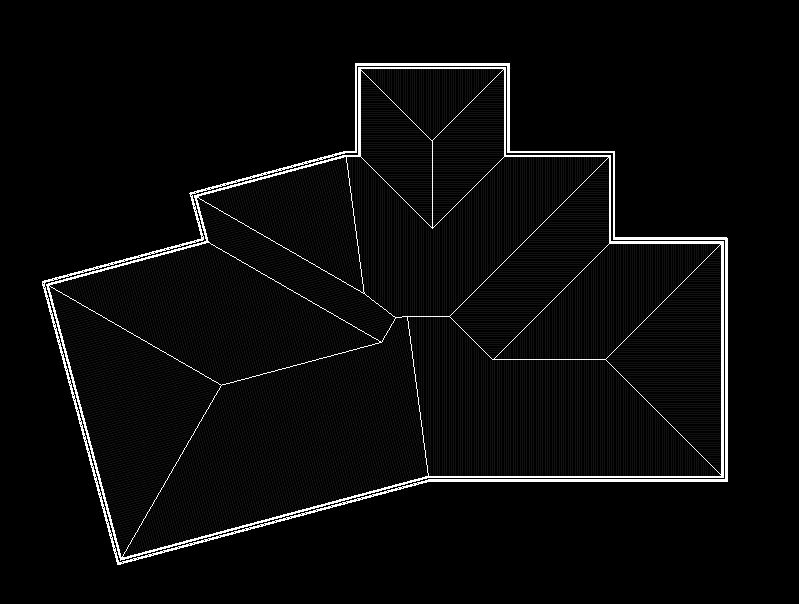

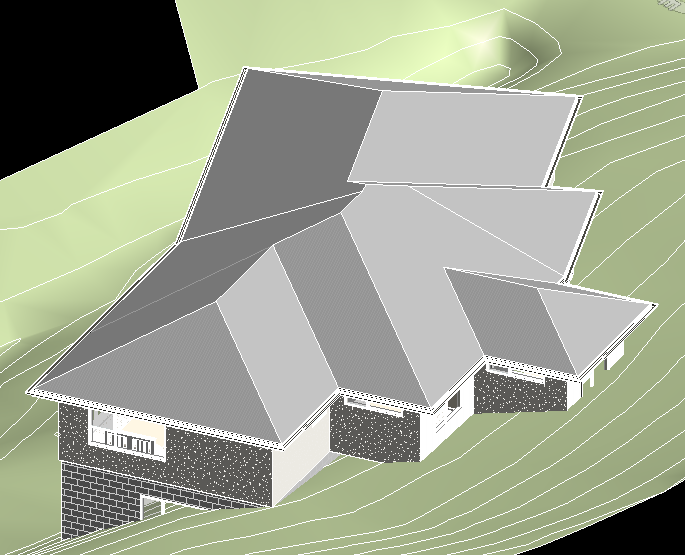

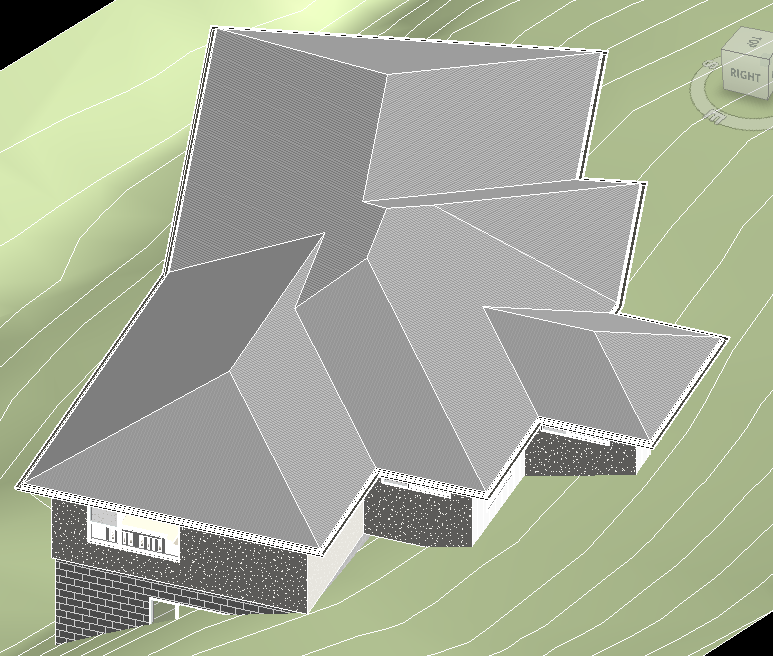

Hi there, i have had a few jobs recently were Revit has created awkward roof shapes from basic roof designs and wondering if there are any known quick workarounds to correct them. Roof A images is what is created with same soffit overhangs and roof pitches (eaves are aligned), revit has created an internal valley, Roof B images have been created with two joined separate roofs which is not ideal (Other Basic 3d software would create this as standard), anyone able to offer advise on how to create roof B with one roof?
