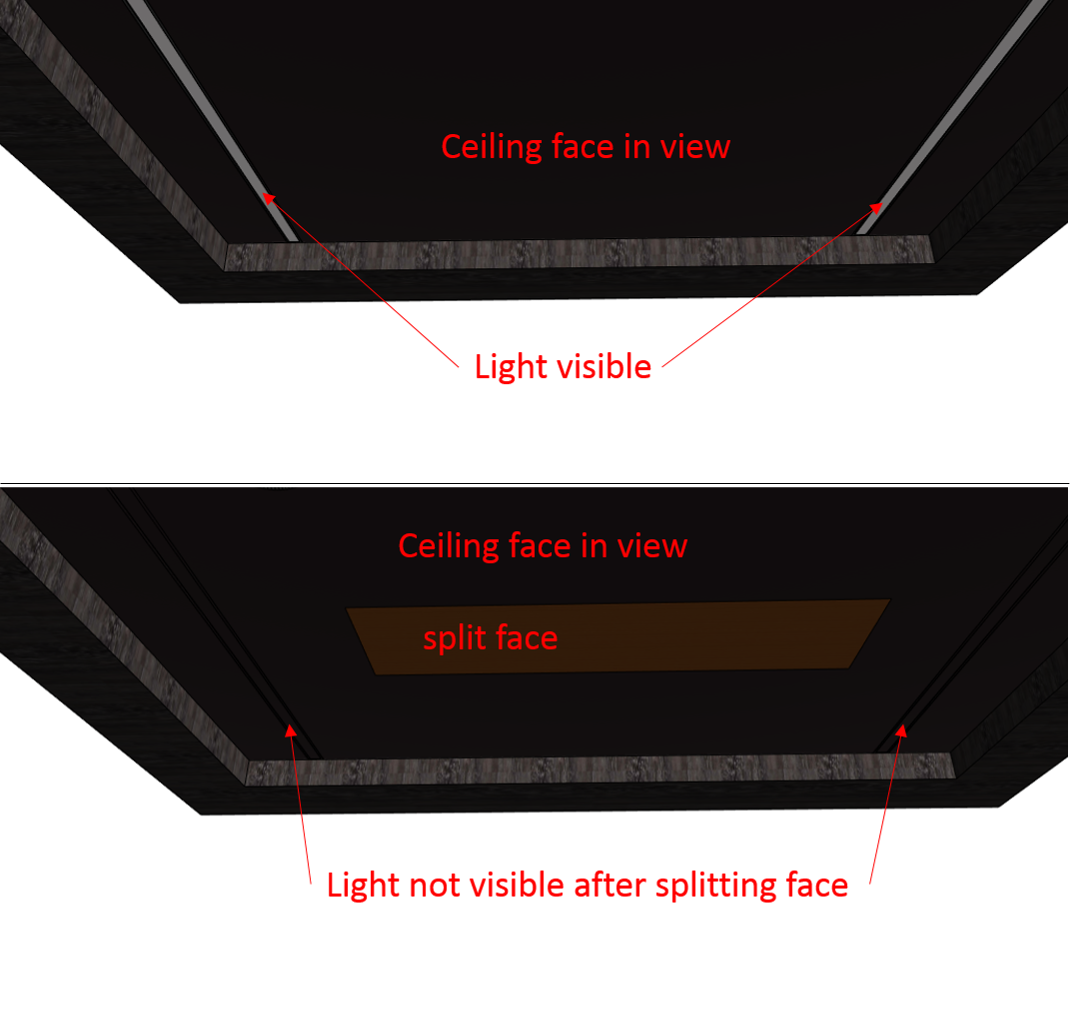

I want to apply differnt colours to my ceiling surface . I split that surface using split face command . now I could apply different colours through paint command but my light fixture commponent void would not cut in entire split ceiling face . Does split face creat an entire new layer on the face ? How to cut commponent void through it ?

Attached Images
