Forums >> General Discussion >> Revit Project Management >> Hipped lines don't meet the corners

kambizforouzan

active

Joined: Wed, Dec 1, 2010
0 Posts
No Rating

Hi,

I am new to Revit and I'm trying to design a roof for one of my projects and I have been struggling to make the corners right and the more I try the less I succeed.  Could anyone let me know the answer to my problem please?  Please see the attached pdf.

Thanks,

Kam

This user is offline

dgcad

active

Joined: Thu, Mar 17, 2005
1231 Posts

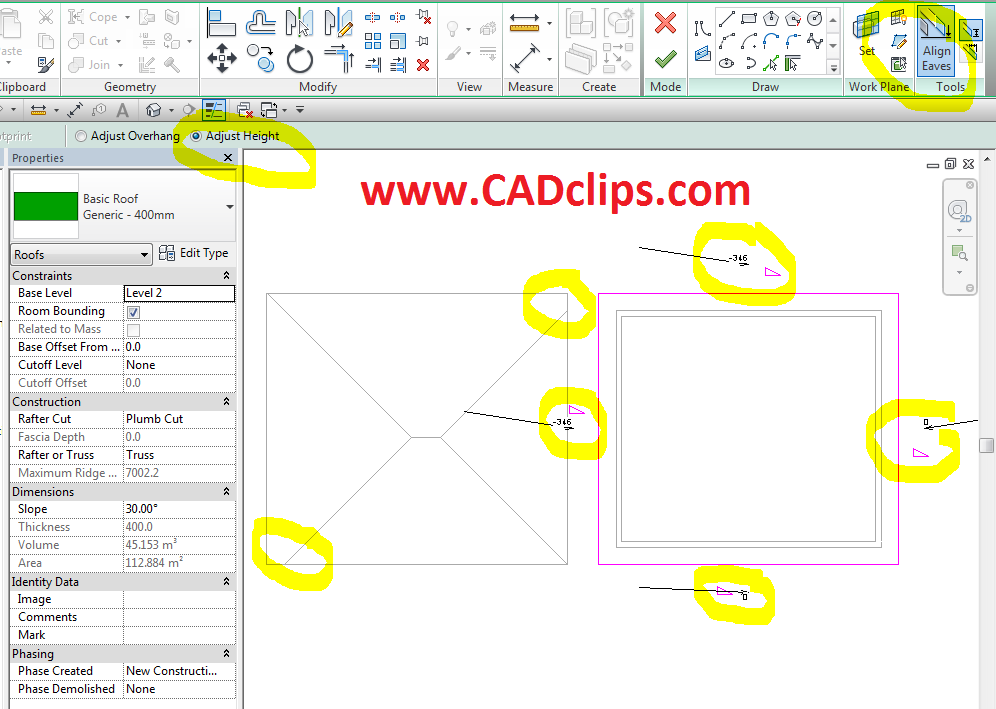

Use the 'Align Eaves' tool from within the roof sketch mode and when using Align Eaves select the Adjust Height' option. The reason it's happening is probably because you're mixing the 'Pick Walls' option with other sketching tools to create the roof.
