Forums >> Revit Building >> Technical Support >> Image applied in texture editor is inserted in the middle of surface

brookecanderson

active

Joined: Fri, Mar 21, 2014
0 Posts
No Rating

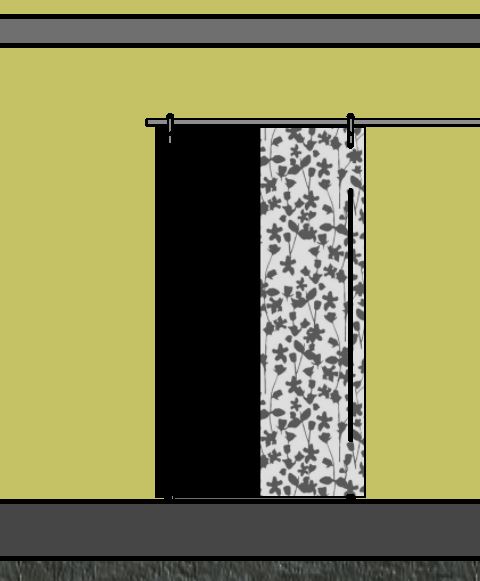

I've created a sliding door panel, and when I attach an image for the panel finish it comes in centered on the door panel.  How do I change the insertion point of the image file???  I'm using Revit LT 2014.

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Is this image one item that should cover the whole door?  If so then don't use a material, use a decal.

This user is offline

brookecanderson

active

Joined: Fri, Mar 21, 2014
0 Posts
No Rating

The image is just supposed to cover the door panel, not the track or frame.  I've never used decals before, can you pick which surface you want them to be applied to?

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

A decal is face based.  If your panel is a seperate face, then the decal will only be placed there.

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Be sure you understand decals... they only show in 3D views, not 2D elevations.

This user is offline

brookecanderson

active

Joined: Fri, Mar 21, 2014
0 Posts
No Rating

A decal won't work then, I need the image to show up in a 2d elevation.  Any other ideas?

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

You need to associate a model hatch with your material.   Then you can use that in a 2D view to adjust where your pattern file is.

Look here and here and here.
