Forums >> Revit Building >> Technical Support >> Door family question, Revit 2017

maddyjdelaney

active

Joined: Thu, Nov 2, 2017
0 Posts
No Rating

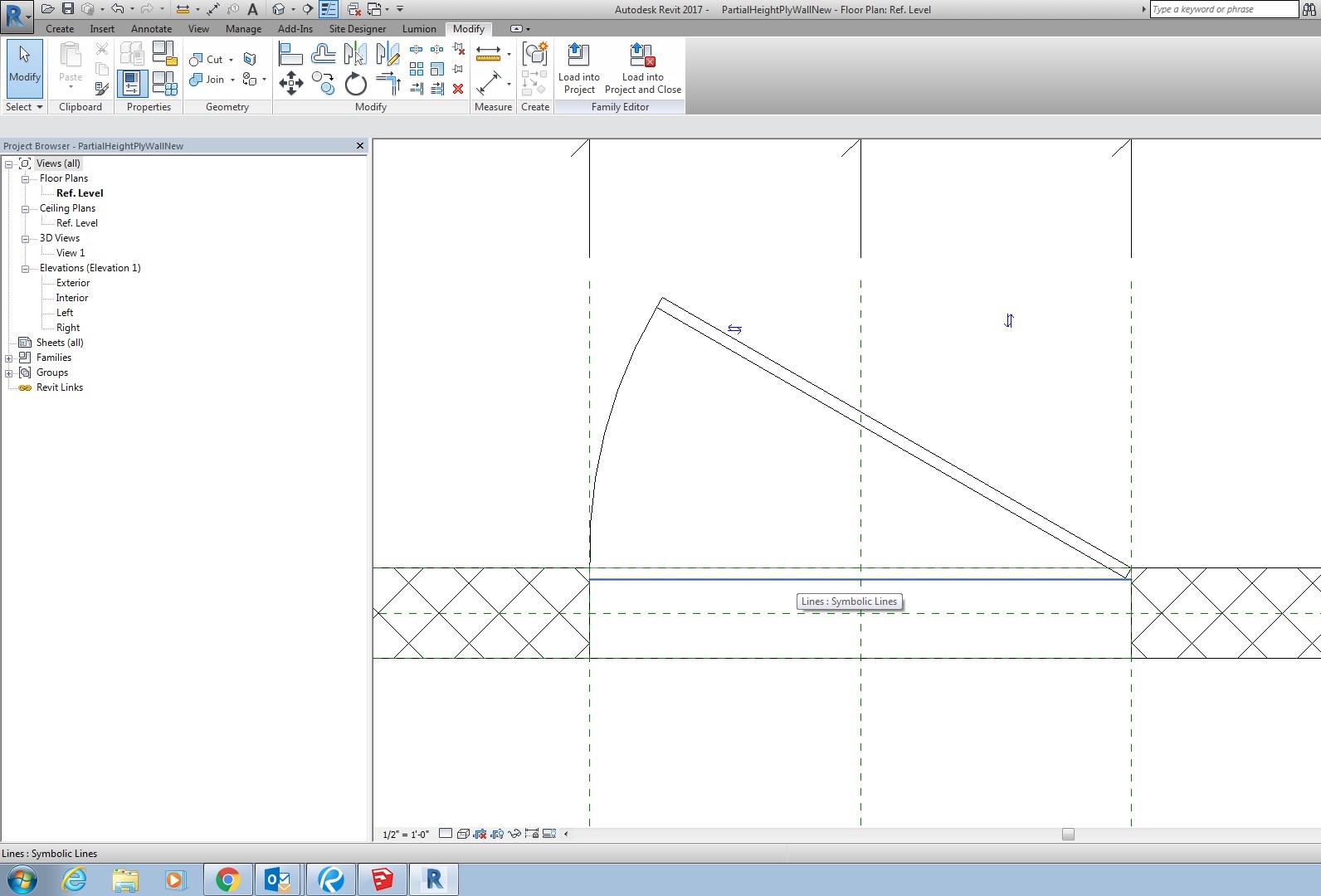

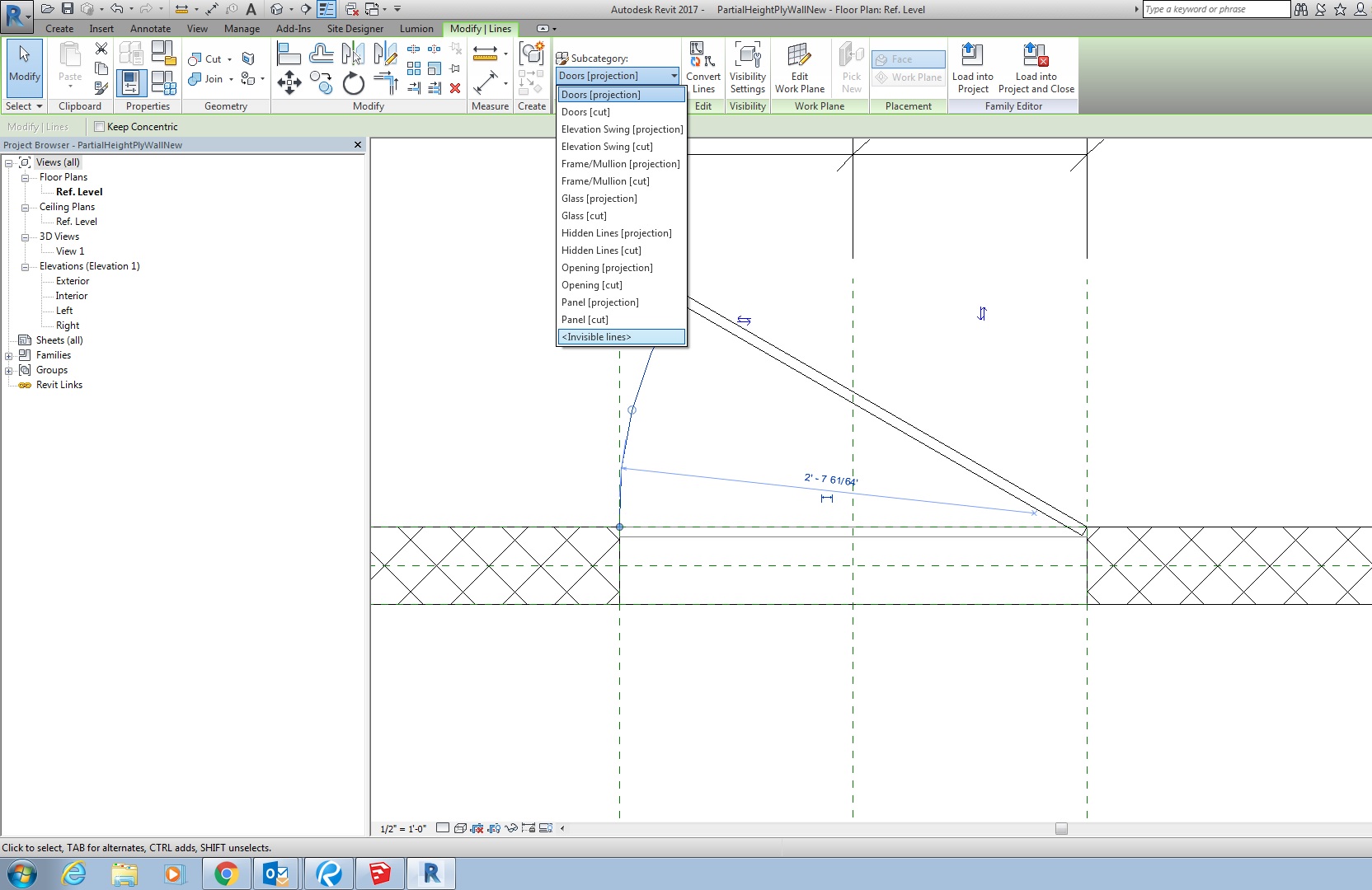

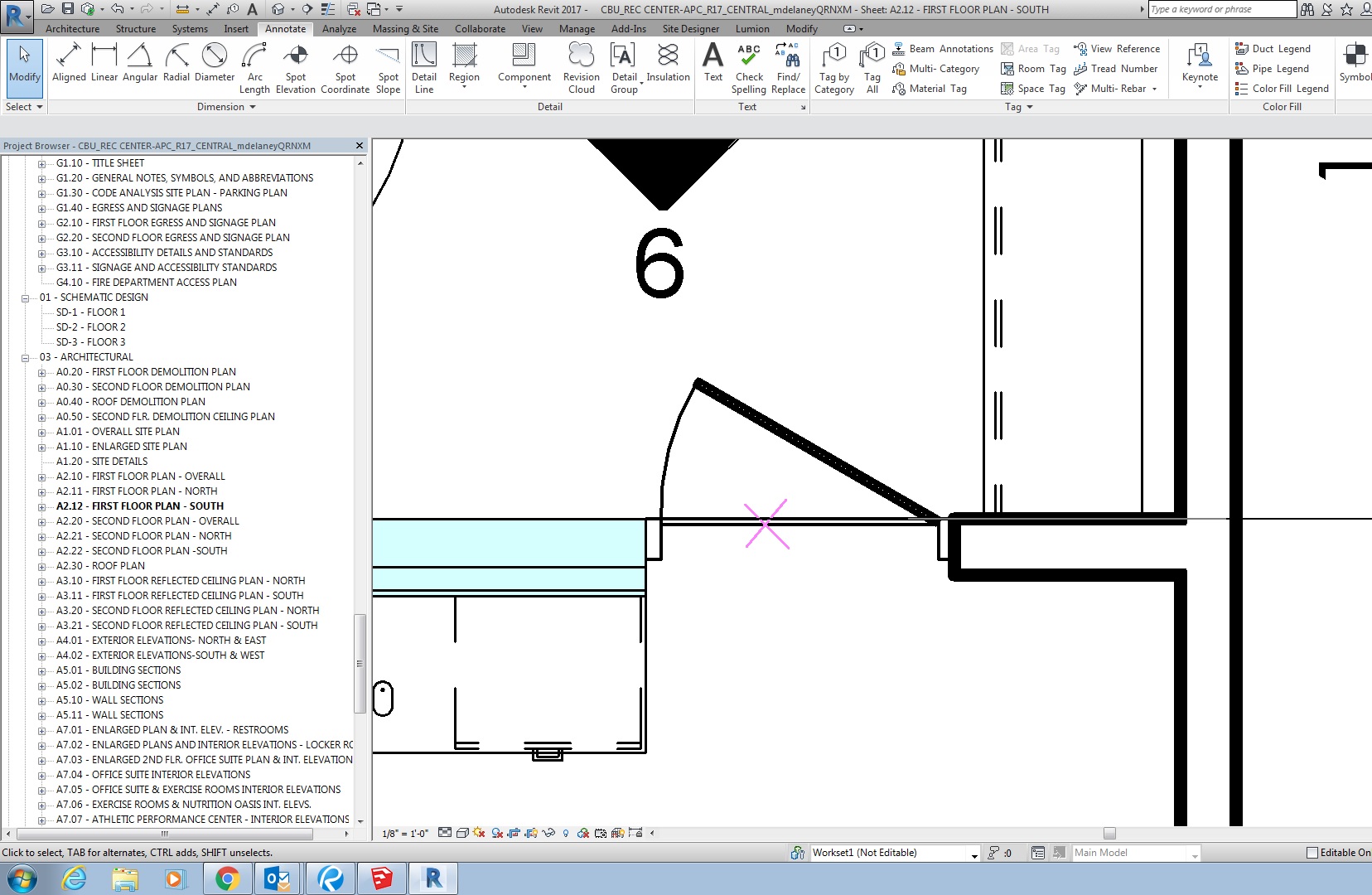

I have again what i think should be two fairly simple issues to solve. First, I do not want the door extrusion to show in plan view (I put invisible symbolic lines over the extrusion in the family editor, but i suppose that does not work?! because the lines are still visible) (see two related images below) and Second: The symbolic line for the door swing shows fine, but it is not on the subcategory it is supposed to be on, Plan swing [projection) (That is not an option in my subcategories), so how do i make a new subcategory? ANY ADVISE GREATLY APPRECIATED yet again !!!

maddy

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

How you start your family is very important.  You need to follow the advice given in a video like this one.

This user is offline

Beaucoupnice

active

Joined: Mon, Nov 19, 2007
93 Posts

In the family editor, select the door extrusion and go to your ribbon. There is a Visibility Settings Tool there. Click it and turn on / off how you want that 3D object to appear.

To add new lines,  go to manage object styles, find the relevant tab and add them in accordingly.

-----------------------------------

__________I'm the guy they come to when they didn't follow my recommended workflows.__________
