Forums >> Revit Structure >> Technical Support >> False Gable
|
|
active
Joined: Fri, Jun 23, 2017
0 Posts No Rating |
Hello! I am new to Revit. Coming from basic 2D line drawing. I have stumbled my way through quite a bit, but I cannot seem to figure out how to create a false gable. Can some share a best practice for this?
Thanks in advance
|
This user is offline |
|
![](images/spacer.gif) |
|
active
![pijpiwo Avatar](user_avatar/187179.jpg)
Joined: Fri, Sep 3, 2010
0 Posts
![5 Stars: 25 Votes](/images/stars_5.gif) |
Please provide a sketch/screenshot of what you have in mind. What revit version?
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Fri, Jun 23, 2017
0 Posts No Rating |
I am using Revit LT 2018. See attachment.
|
This user is offline |
|
![](images/spacer.gif) |
active
![pijpiwo Avatar](user_avatar/187179.jpg)
Joined: Fri, Sep 3, 2010
0 Posts
![5 Stars: 25 Votes](/images/stars_5.gif) |

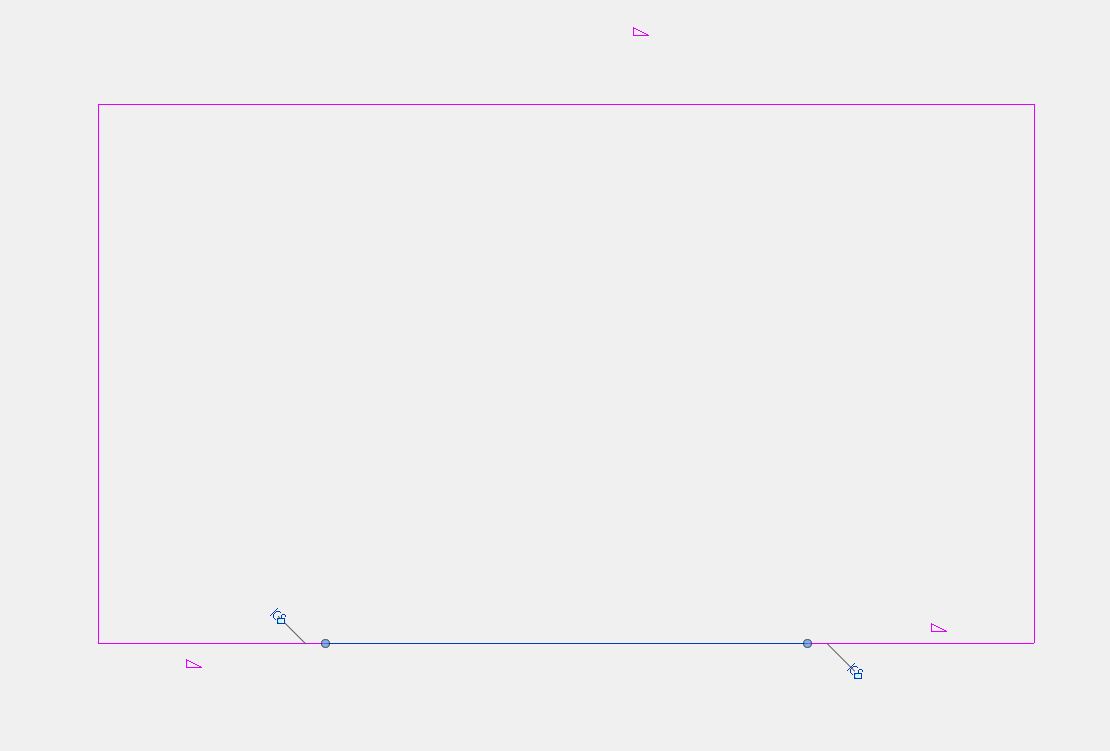

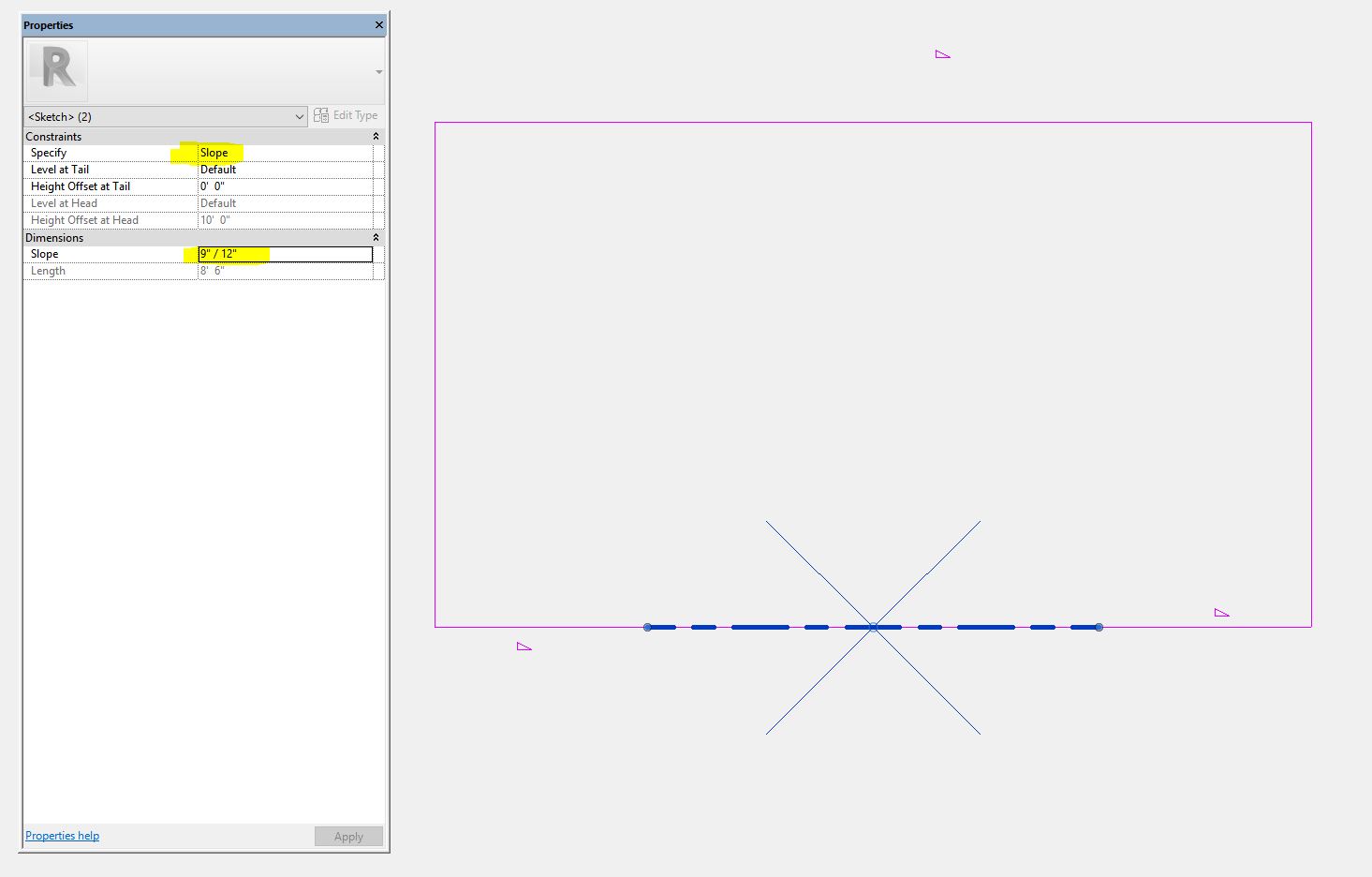

Split the segment where false gable. Do not apply slope to that segment (pic1). Add slope arrows and adjust their slope (pic 2).
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Fri, Jun 23, 2017
0 Posts No Rating |

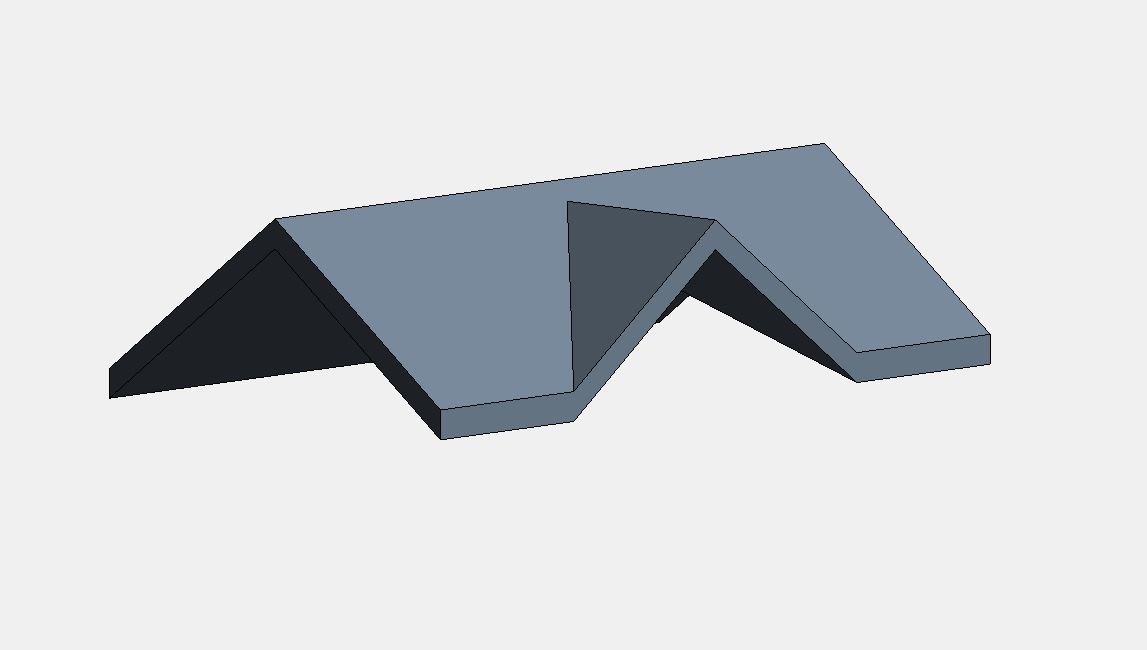

That worked! Thank you for your help!
|
This user is offline |
|
![](images/spacer.gif) |
![](images/spacer.gif) |
