I have been using AutoCAD from the DOS ages, R10, and up to 2014. Moving to Revit 2013, a delight to be frank.
Recently I was asked to build a template for a Revit 2013 Template. Not too hard usually with AutoCAD but I have found a problem with making a complex line styles with line styles. We are dealing with water, gray, black, hot, cold, gas etc.
I have read as many of the posts in this forum and found quite a few of the similar lines, but I cannot get centre, phantom, long dash, triple dash etc.

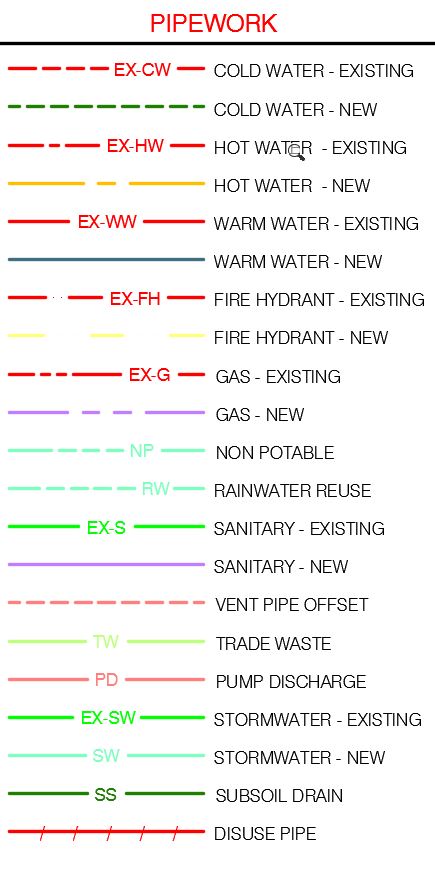

Does anyone have a solution for this?? i have an image of what I am try to make,
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |
Linestyles in Revit are only lines, they never contain letters or symbols. "centre, phantom, long dash, triple dash" are never a problem, center is already a default. Just follow the HELP instructions.
Creating lines with symbols or letters requires a line-based family such as this one. I think there are better ones if you search.
|
