Hello everyone,

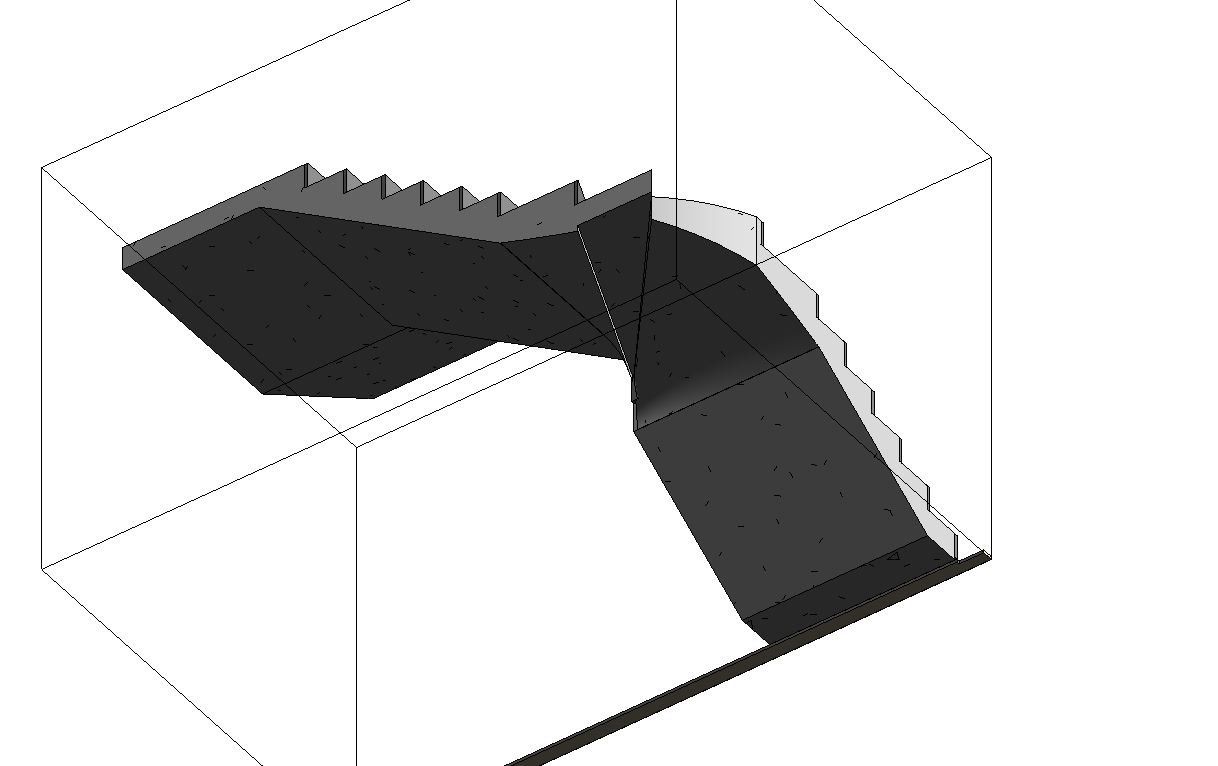

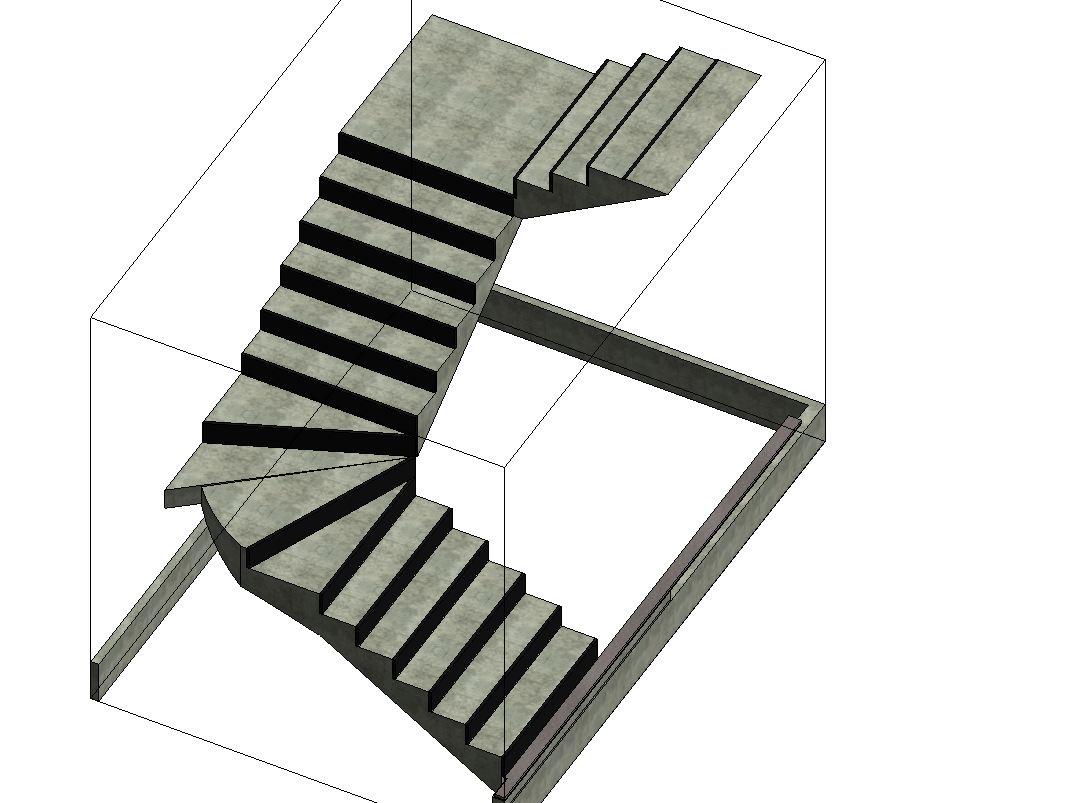

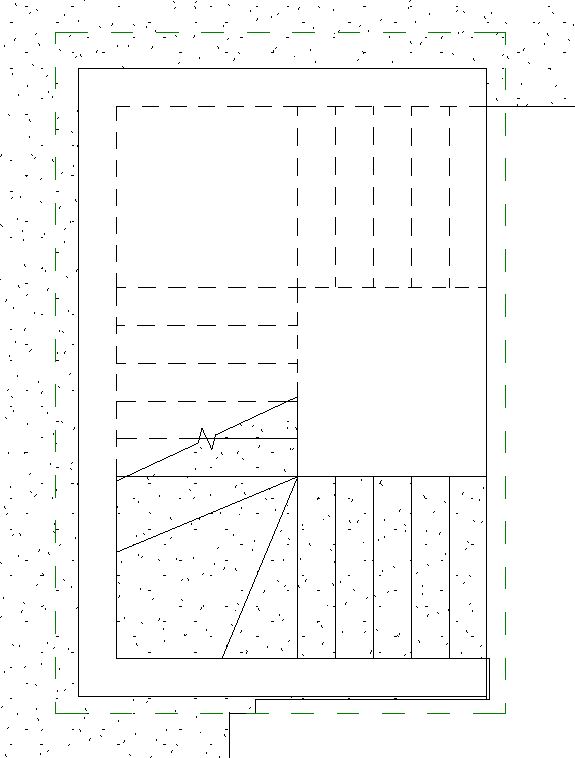

I created a stair from component stair by changing it to sketch based. In plan view stair looks fine. But resulting 3D geometry looks really bad. Especially bottom surface of the stair....Do you have any idea why it is so?

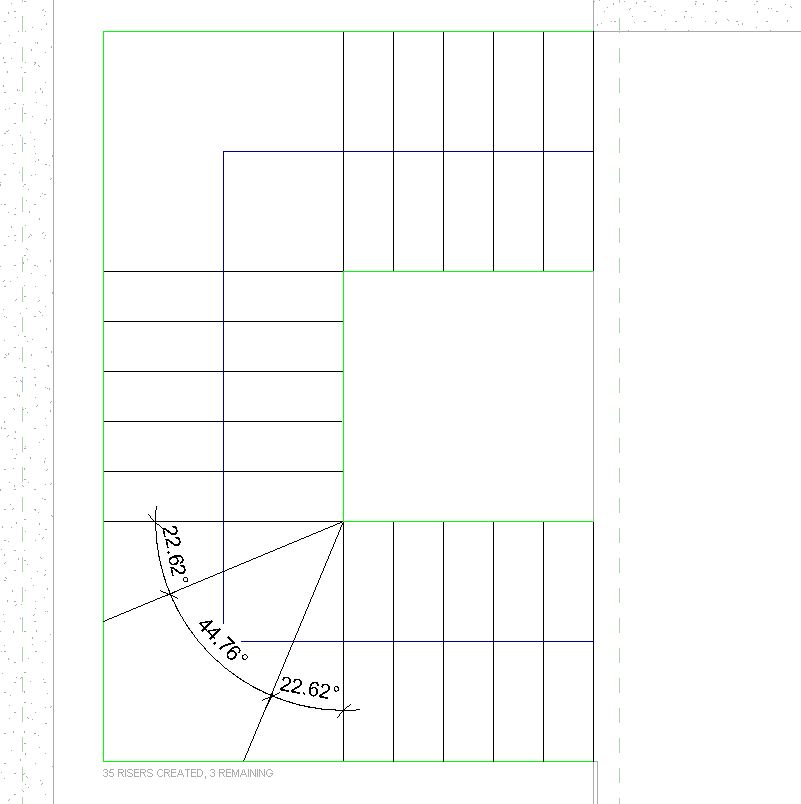

..I saw in a youtube video that inequal radial riser lines might cause. So I checked it and everything looks ok there.

Attached Images

This user is offline

marmiketin1

active

Joined: Wed, Aug 19, 2015
0 Posts

try making the radial riser lines eqaul angle (30)

This user is offline

yigitti

active

Joined: Mon, Apr 20, 2015
0 Posts
No Rating

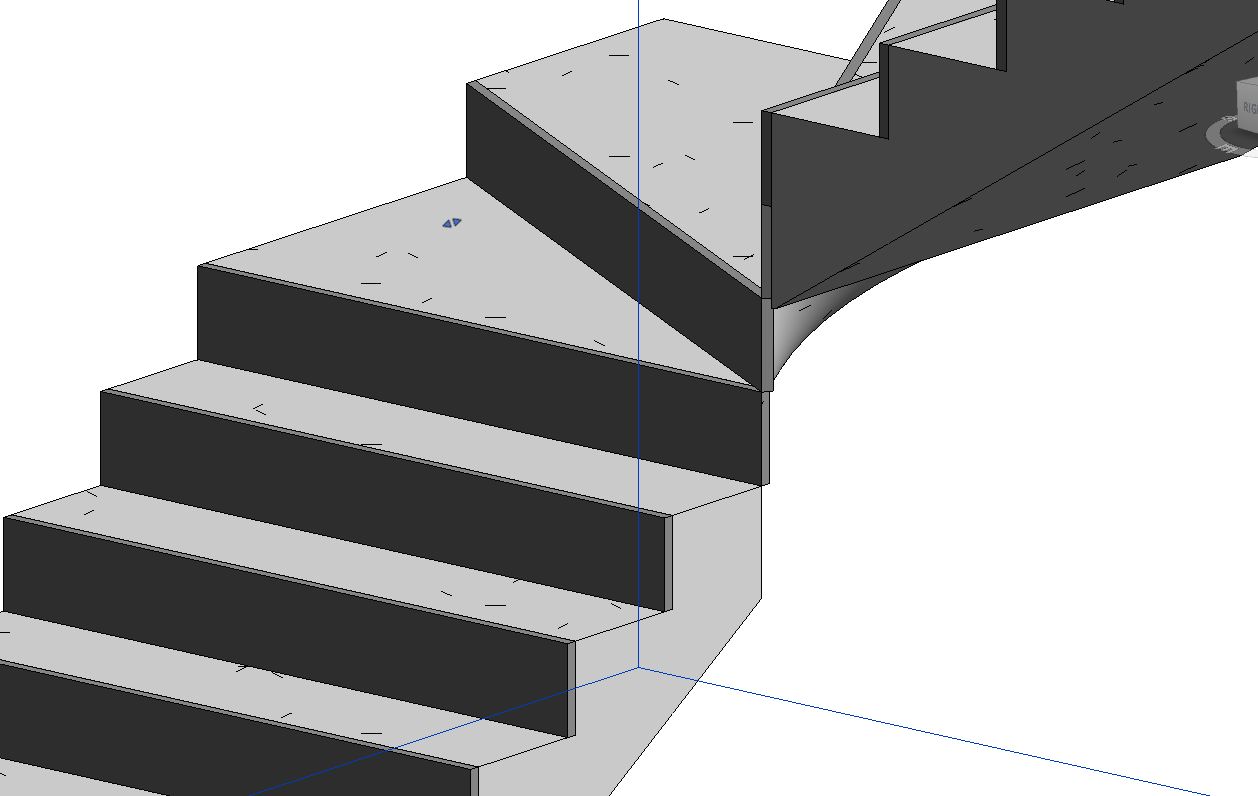

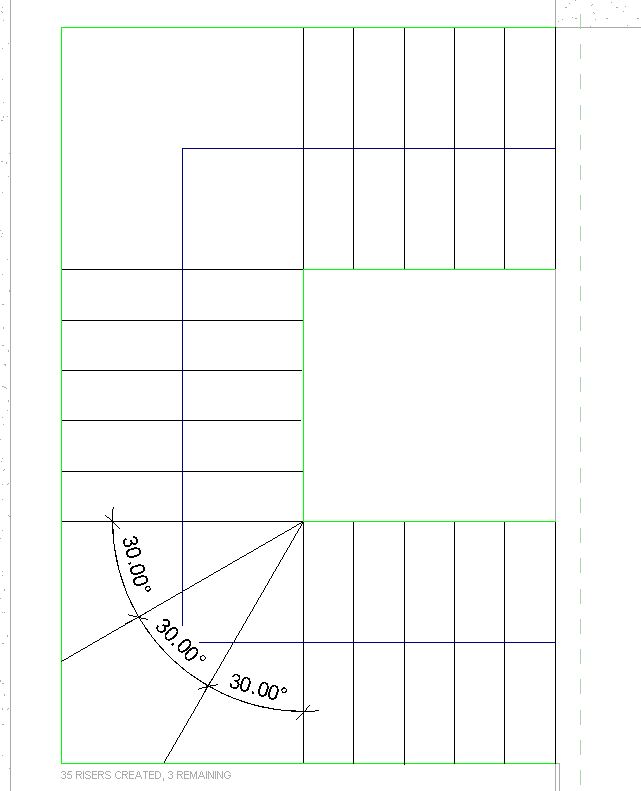

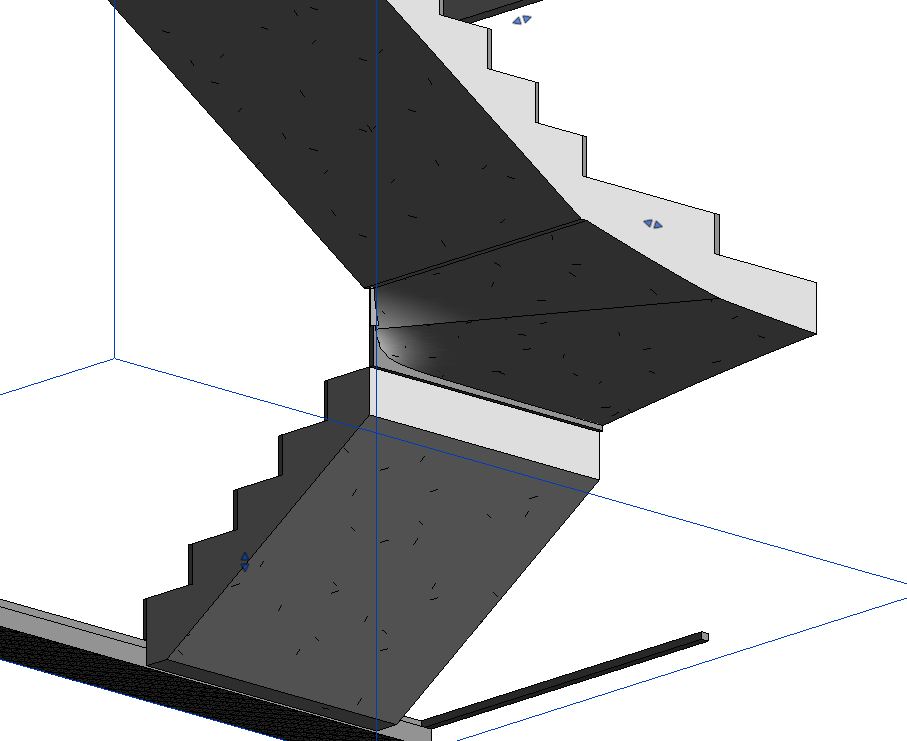

Thanks for the reply, but it didn' t work. I attached two screenshots showing the resulting geometry after I changed as you said.

Attached Images

This user is offline
