Hi!

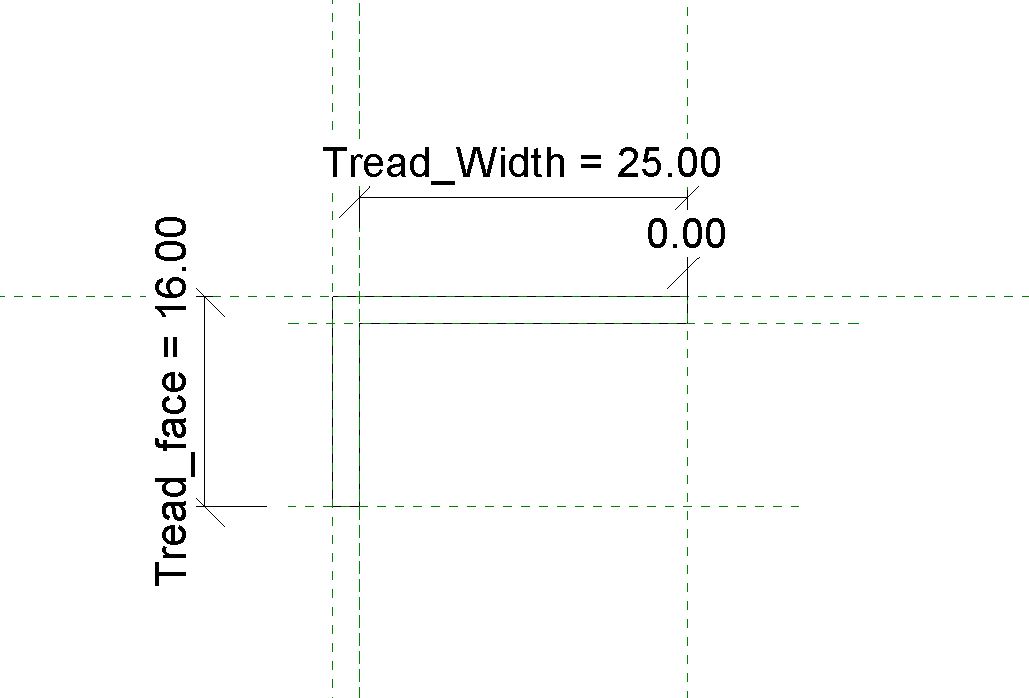

I made custom profiles for the stair that I'm working on. Everyting works fine in section views. But because it is a profile, it only sweeps along the edge of the stair I guess. But 'default' tread profile covers all the area. How can I achieve this with my customized profile? I attached the screenshots.

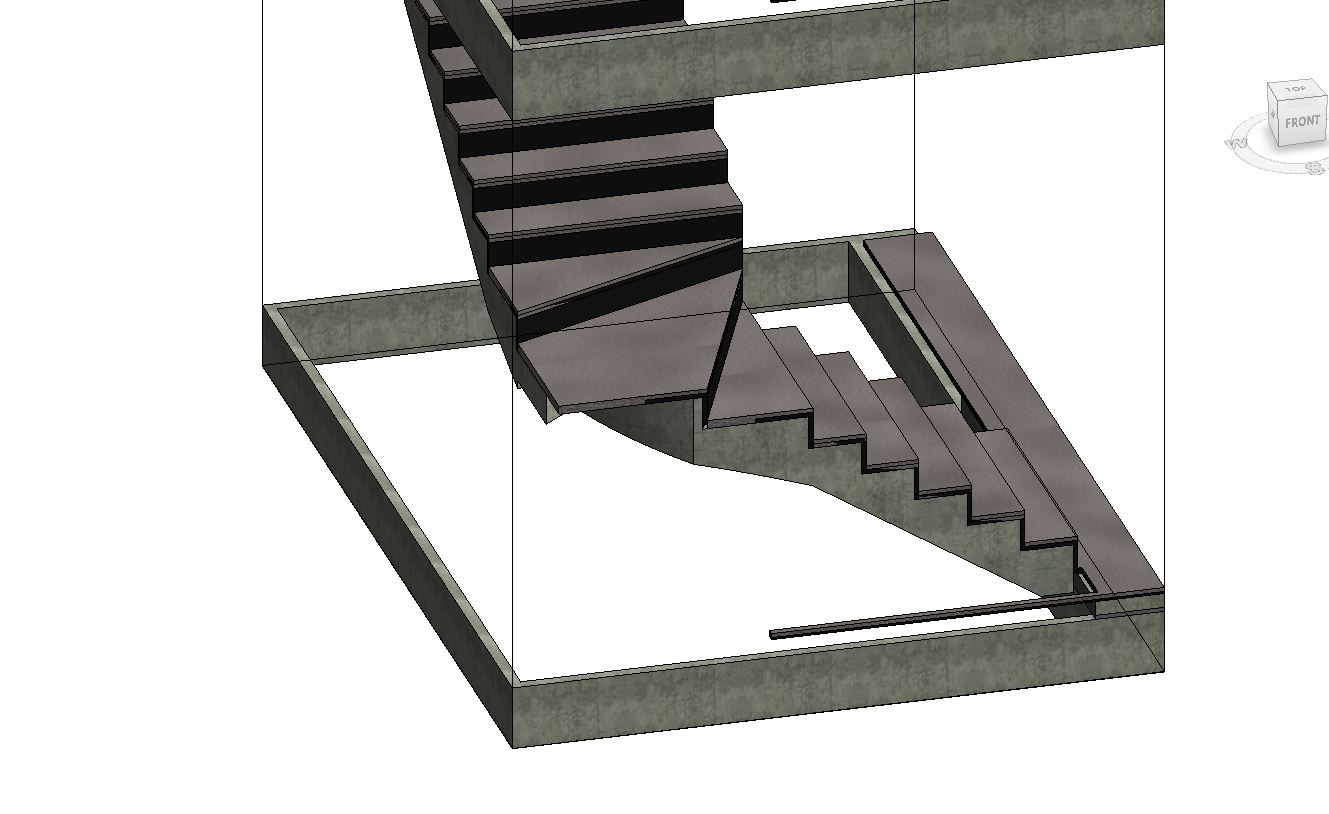

Default_Tread: It shows partially what I want to achieve in 3D. Tread covers all the winder stair areas.

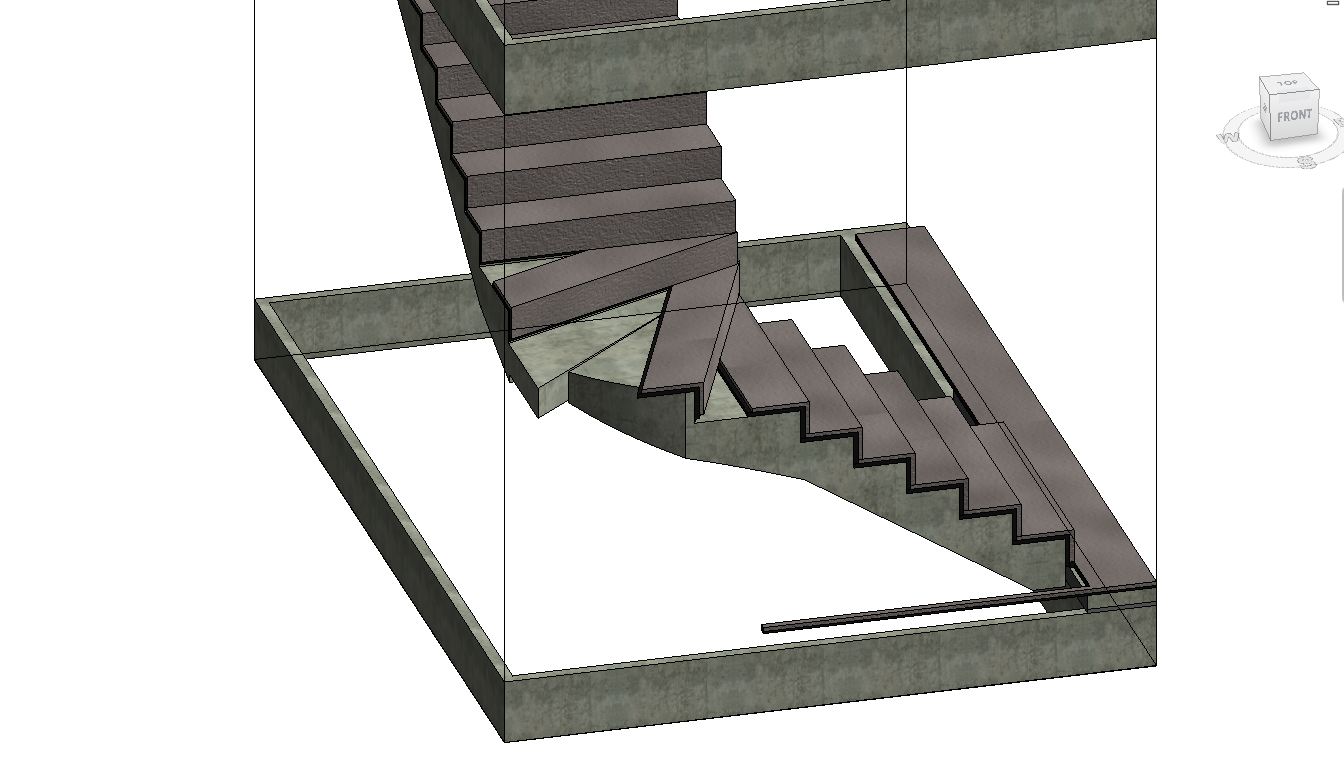

Stair_Tread Profile: Undesired 3D which resulted because of the customized profile.

Any help is much appreciated.Thanks.

Attached Images

Attached Files 152547_CustomStairTread.rfa

This user is offline

rivnovo

active

Joined: Thu, Jan 11, 2018
0 Posts
No Rating

I'm experiencing the same issue. Did you have any luck finding a solution?

This user is offline

yigitti

active

Joined: Mon, Apr 20, 2015
0 Posts
No Rating

Unfortunately not

This user is offline

CDWdavid

active

Joined: Mon, Aug 4, 2008
153 Posts

First, you can open “Stair Nosing – Pan” in Families under “Profiles”. Modify it to any shape you like.

Then, see the attached picture, you can change the Nosing Profile to the name you just created.

Play with it. Just keep in mind that the nosing is placed along the front of the tread.
