Forums >> General Discussion >> Revit Project Management >> Cylender House

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Jan 5, 2017 at 3:18:16 AM | Cylender House

#1

Revitnoob123


active

Joined: Thu, Jan 5, 2017
0 Posts
No Rating


Hello there

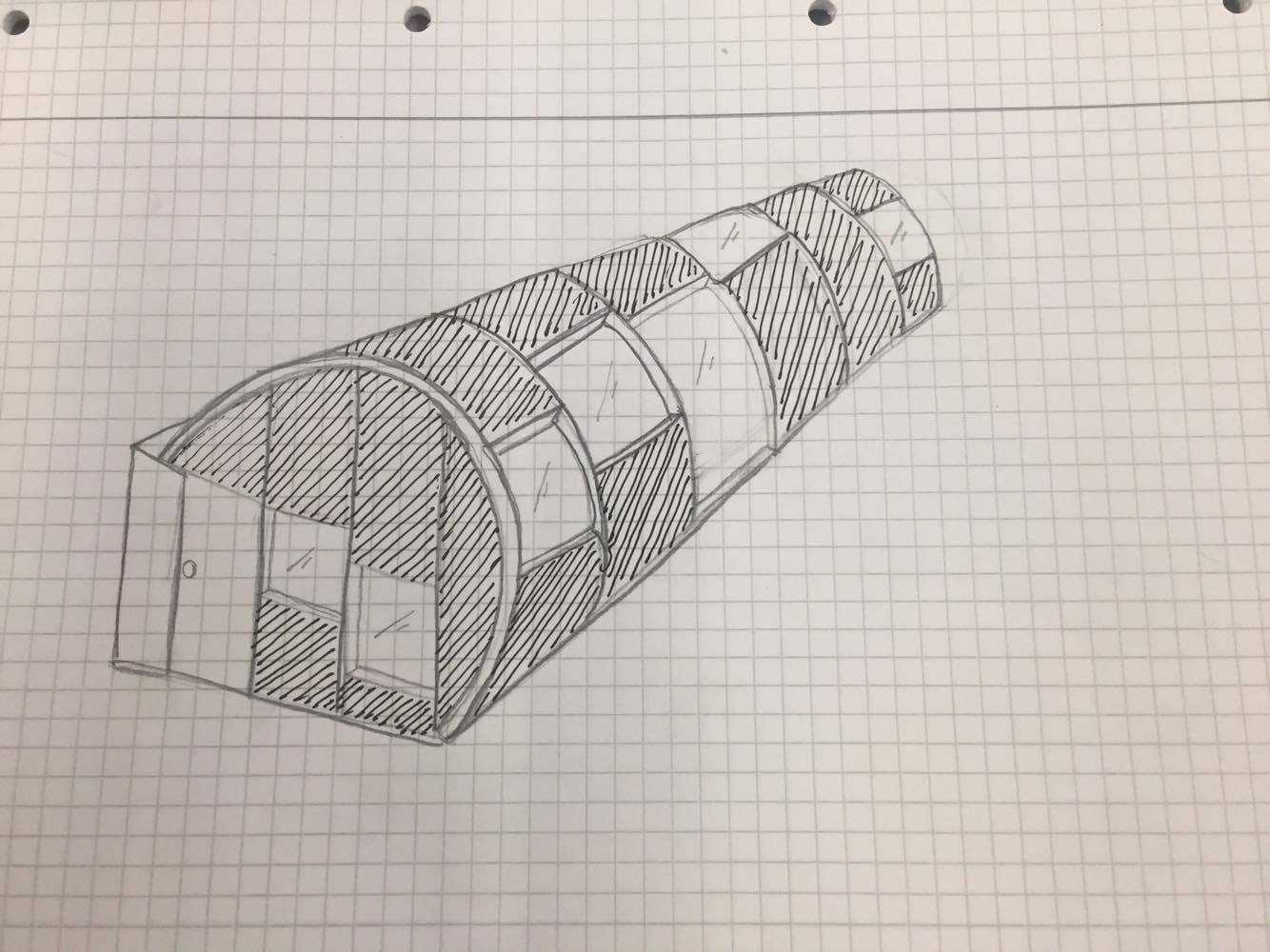

I am building af house in the form of a cylender. But I cannot seem to make Revit make curved windows. Anyone who knows how this would be done? Or that can lead me in the right direction? See drawn picture for model.



Attached Images


This user is offline



Thu, Jan 5, 2017 at 8:16:40 AM | Cylender House

#2

Beaucoupnice


active
Beaucoupnice Avatar

Joined: Mon, Nov 19, 2007
93 Posts
3.5 Stars: 6 Votes


To create that building to quickest, I would do the following:1) Draw floor in plan.2) Draw a reference plane where one of the circular frames sits and then draw the frame using an in-place family shape. You extrude a shape or draw a profile and make it follow a sweep ( depending on the profile shape of your frame)3) Copy that Circular frame, wherever you want that frames spaced out to be.4) On the (2) reference plance, extrude glass along a given profile to achieve the specific pane. Adjust length to sit between frame. Copy to the same place and change to solid and change the profile to cover the areas not covered in glass.5) Copy (4) to the next circular frame and edit the profiles to suit the required profile and repeat to the end of the cyclinder.6) Draw vertical walls at the ends of the tube / or place vertical steel members if that is what you need.7) Add doors to the end walls.Shadey Add vertical wall to the long side where yoi show it running behind the sketch.9) Add a small roof in plan between (Shadey and the curved face of the circular frame/panel.I hope this helps.


-----------------------------------

__________I'm the guy they come to when they didn't follow my recommended workflows.__________
