Normally I make a sketch with Area's and bounderies and it works all fine. But today my area covers every line I put there? Can I make my area's transparent?

Revit 2017

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Are you creating an area plan using the area plan tools?

This user is offline

ronWu

active

Joined: Thu, Oct 21, 2010
6 Posts
No Rating

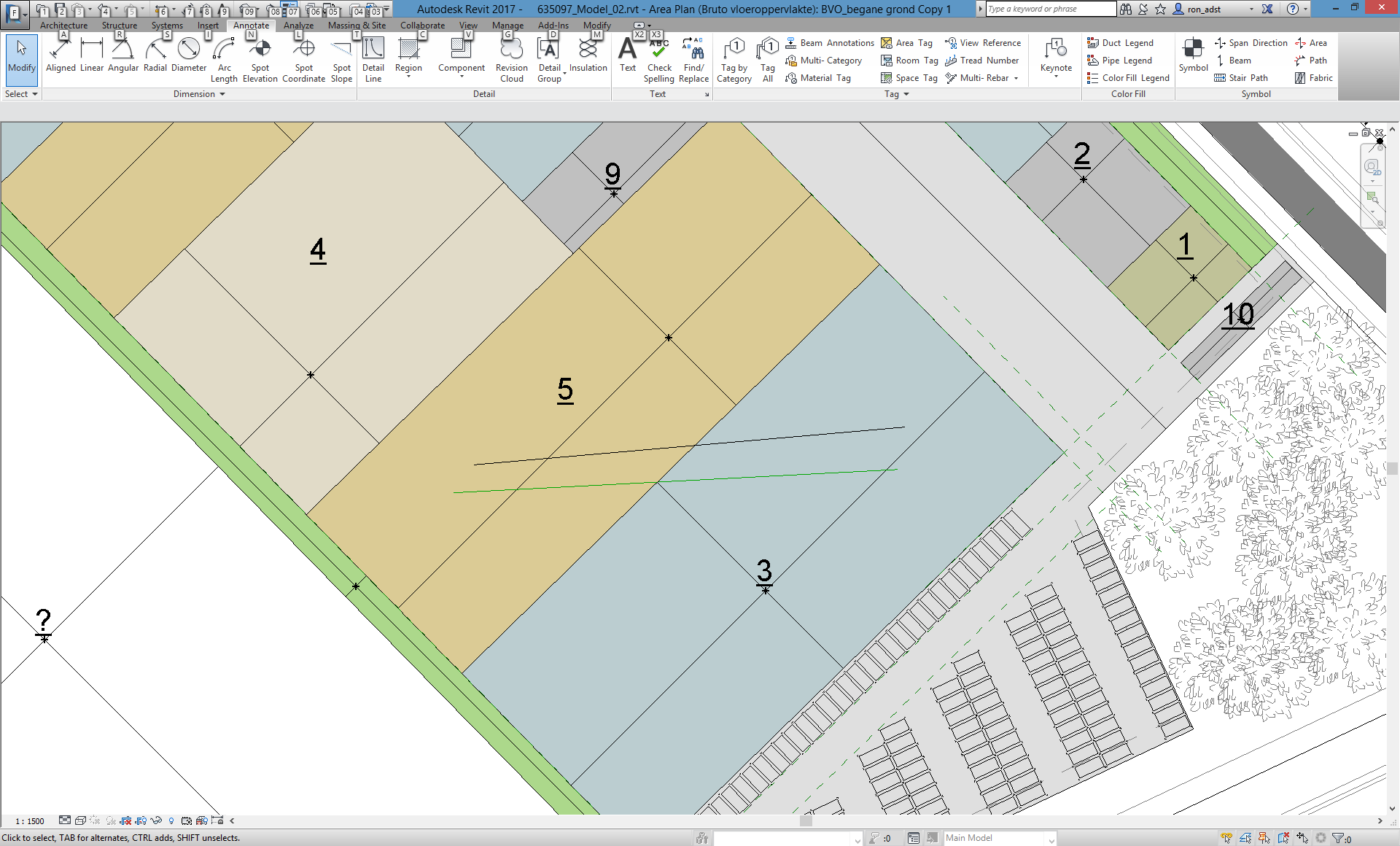

I'm using Area plans like I do for 6 years now. Never had anything like this. Never had problems. And now the colors area's are hiding the lines. "funny" but I could expect it, the lines on the sides of an area show only half.

I normally only change the color of the line to black

Attached Images

This user is offline

ronWu

active

Joined: Thu, Oct 21, 2010
6 Posts
No Rating

Nobody any idea?

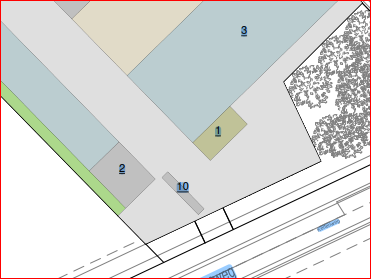

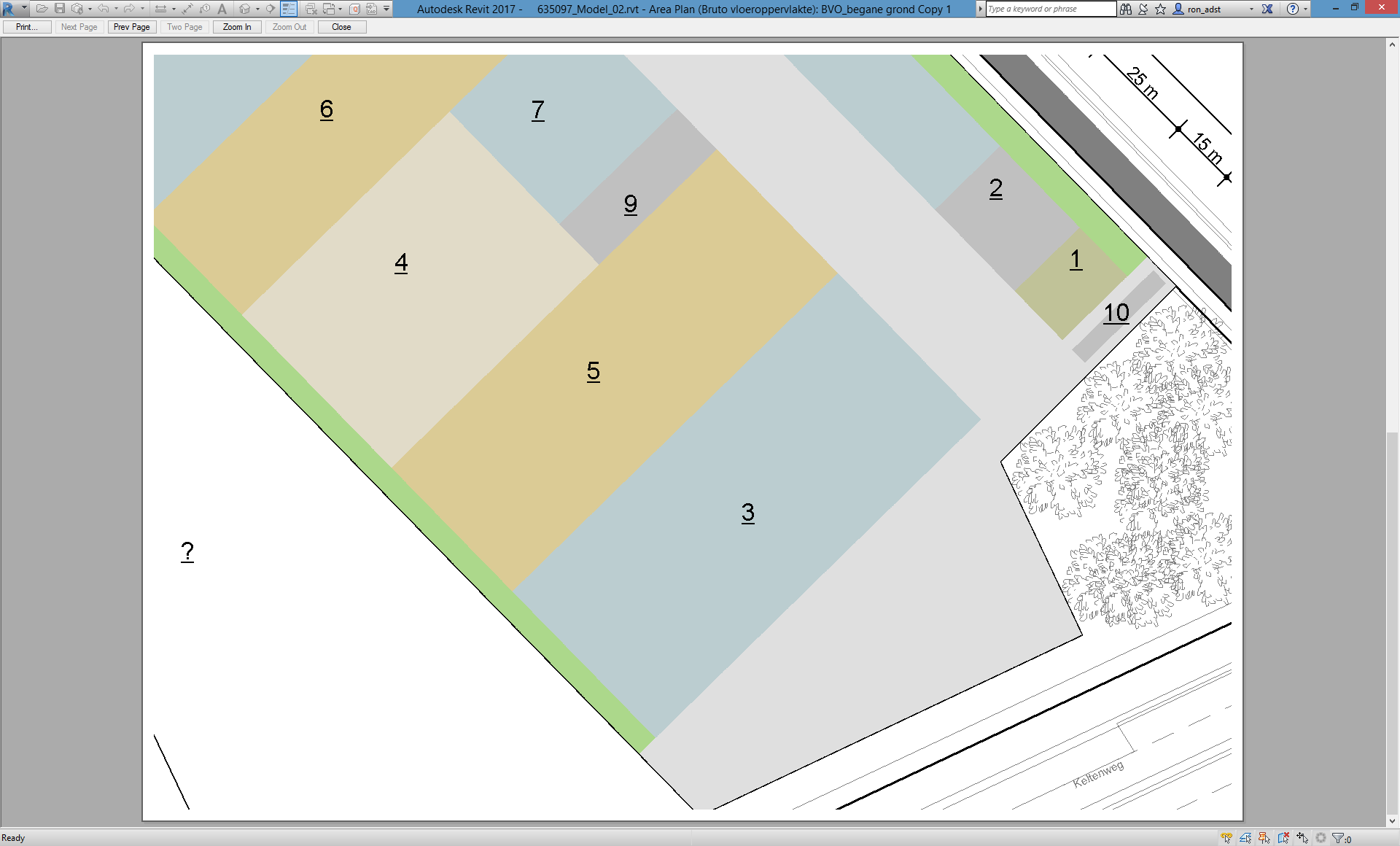

A - my areas will block everything that I will put there except the Areatags. No Bounderylines, No detail lines - no model lines - no families

B - a line on the border of my area will be shown half.

I never had this? What is happening?

Attached Images

This user is offline

ronWu

active

Joined: Thu, Oct 21, 2010
6 Posts
No Rating

Stress is bad company. Jing Jang your life and everything will look so much different. And importantly way better. Lets just say I was stupid......

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Plese enlighten those that did not know.
