Forums >> Community >> Newbies >> Stair cut pattern in plan
|
|
active
Joined: Fri, Jan 18, 2013
0 Posts No Rating |
Hi everyone,
How do I get stairs to appear cut in the same way as walls appear when cut?
I want to the cut plane that is cut to appear filled, in the same way that it appears in a section for instance.
This helps understand the space better.

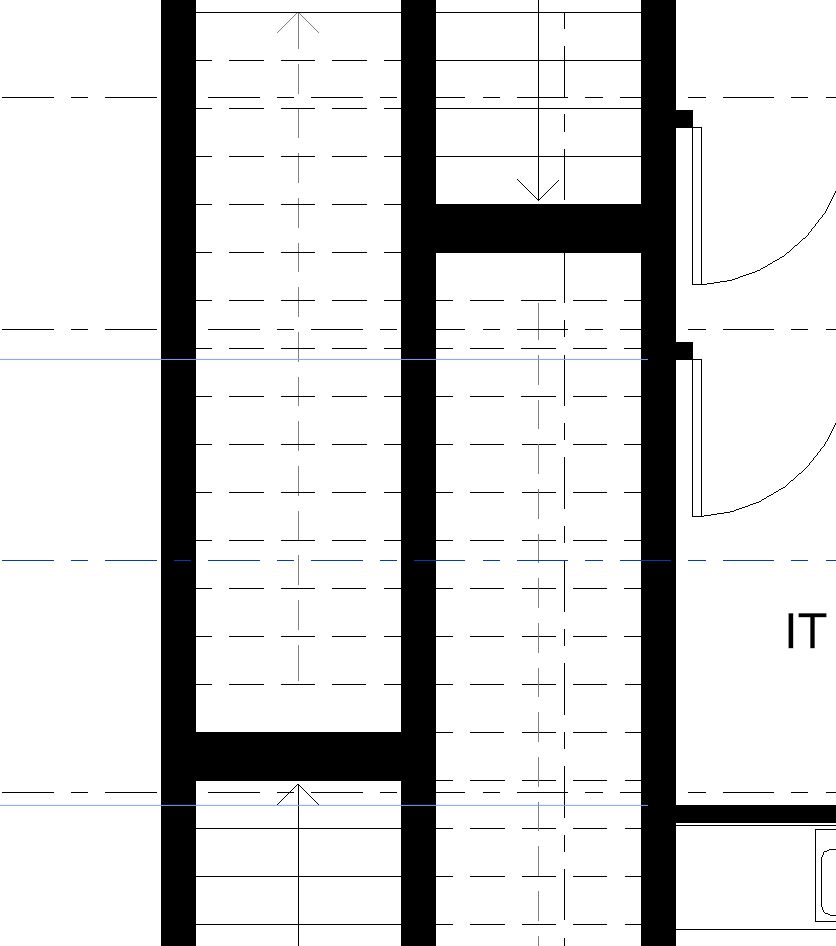

Below is an example of the end result expected. (I used a hatch region to work around the problem, but this is very "un-Revitly").
|
This user is offline |
|
![](images/spacer.gif) |
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 393 Votes](/images/stars_3.5.gif) |
Revit will not do that, it only cuts the stairs 'vertically' using a break symbol.
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Fri, Jan 18, 2013
0 Posts No Rating |
Thank you WWHub,
Is there a way however to get revit to consider the stair as a solid volume and cut through it?
Or is there a way to creat e a custom cut symbol to do the trick?
|
This user is offline |
|
![](images/spacer.gif) |
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 393 Votes](/images/stars_3.5.gif) |
You can create any detail element that you want.
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Fri, Jan 18, 2013
0 Posts No Rating |
Ciuld you please tell me what would be the first steps to create a detail element?
|
This user is offline |
|
![](images/spacer.gif) |
