Forums >> Revit Building >> Technical Support >> Same model group, different hatch.
|
|
active
Joined: Mon, May 19, 2014
0 Posts No Rating |
Hi
Revit 2014 R2

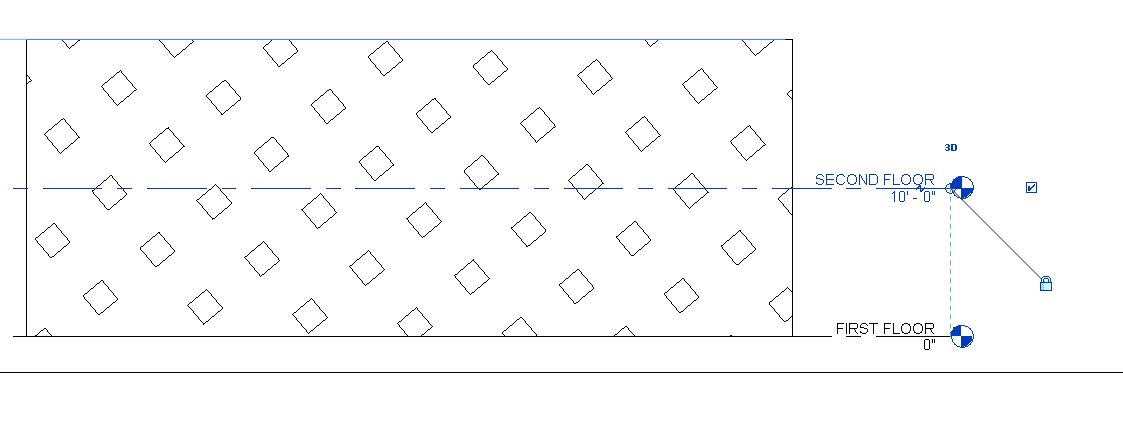

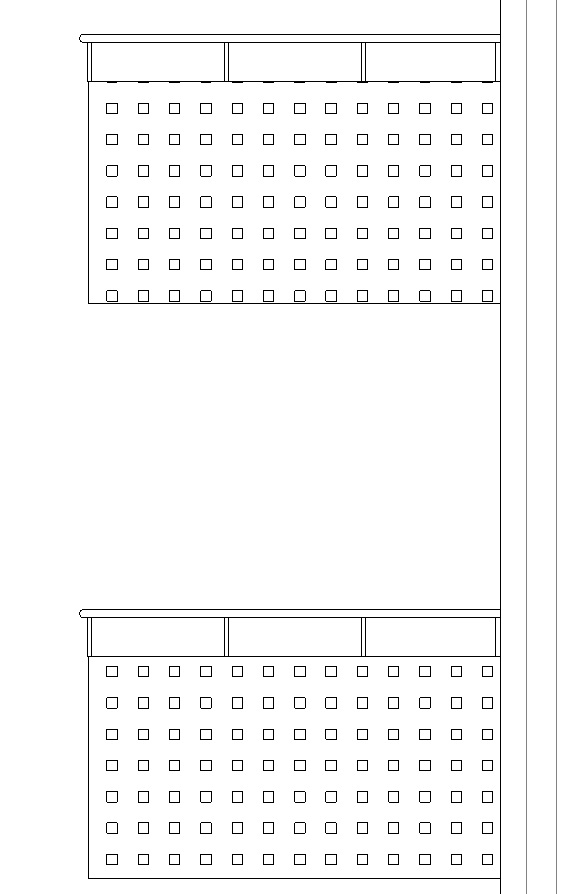

I'm having a problem where I have a model group of a railing/balchony on two different floor plans, but the material pattern differ in elevation. (see attached)
They're in the same view, its a drafting pattern. Tried changing it to a model pattern to move the lines of the pattern but it doesn't seem to work, probably due to how the pattern is constructed.
Any suggestions/solution to how to fix this?
Edited on: Tue, Mar 15, 2016 at 5:43:20 AM
|
This user is offline |
|
![](images/spacer.gif) |
|
active
Joined: Wed, Aug 19, 2015
0 Posts
![4.5 Stars: 10 Votes](/images/stars_4.5.gif) |
open up your pat file for the hatch and insert this line of text before the numerical data to make it a model pattern
;%TYPE=MODEL
Currently what is happening is that the two patterns are lined up with themselves as if it is one large pattern that is only visible on the elements
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Mon, May 19, 2014
0 Posts No Rating |
Ah yes, didn't realise that fixed it the first time I made it to a model pattern.
Can't move the hatch lines though, but I guess i just have to find another pattern (or repair it myself).
Thanks for your help!
|
This user is offline |
|
![](images/spacer.gif) |
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 393 Votes](/images/stars_3.5.gif) |
If it is a model pattern and that is what you have assigned to the material, then it will move! Tab select a horizontal or vertical line in the pattern and move it. It will change color when selected.
If you still can't move it the something in your process is incorrect.
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Mon, May 19, 2014
0 Posts No Rating |
Hm yeah that's the process I usually do, but can't make it work with this pattern though. (a pattern I downloaded from somewhere)
Never had the problem before, but feel free to try the pattern yourself, maybe it's something else going on.
|
This user is offline |
|
![](images/spacer.gif) |
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 393 Votes](/images/stars_3.5.gif) |
Not a problem, here it is rotated.
You never actually imported this pattern if you tried. You have to name the pattern to import it.
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Mon, May 19, 2014
0 Posts No Rating |
Ah my bad, you're absolutly right.
Stupid of me not to even try another pattern on the railing to see if I could move them.
Maybe it's something I don't understand about railings then. When I assign the material to a wall I can move the pattern.
But not when i assign it to one of my rail profiles under the Rail Structure tab.
Ah well, I managed to solve it anyway so it doesn't really matter right now.
Edited on: Tue, Mar 15, 2016 at 8:36:07 AM
|
This user is offline |
|
![](images/spacer.gif) |
![](images/spacer.gif) |
