Forums >> Revit Structure >> Technical Support >> Hilti kwik bolt not rendering properly
|
|
active
Joined: Thu, Feb 9, 2012
0 Posts No Rating |
Hello,

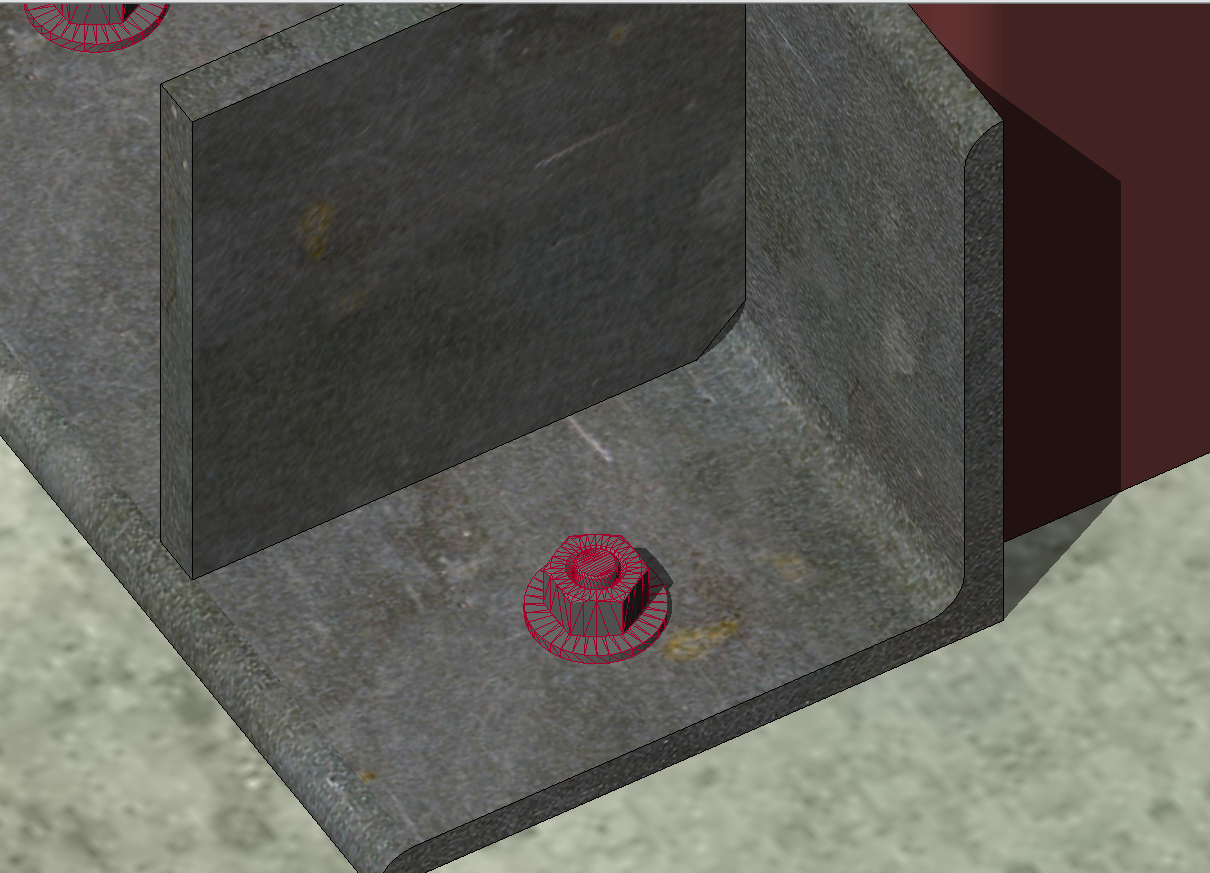

I'm trying to render a structural connection in Revit 2016. I'm using Hilti's plug to their modeled fasteners. However, when I render the model, the bolts still show the construction lines. Any tips?
|
This user is offline |
|
![](images/spacer.gif) |
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 391 Votes](/images/stars_3.5.gif) |
You have to look at their settings.... Look under the family category for that element.
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Thu, Feb 9, 2012
0 Posts No Rating |
Can you walk me through what I'm looking at/for?
|
This user is offline |
|
![](images/spacer.gif) |
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 391 Votes](/images/stars_3.5.gif) |
I could if I had the family ... but I don't. It looks like they may be under specialty equipment.
|
This user is offline |
|
![](images/spacer.gif) |
active
![dgcad Avatar](user_avatar/6183.jpg)
Joined: Thu, Mar 17, 2005
1231 Posts
![3.5 Stars: 36 Votes](/images/stars_3.5.gif) |
This doesn't look like a native revit rfa element. It's a family that has an old DWG block inserted and then saved as an rfa file but it's not actually revit solids. This is comman and a simple way for people to use the old 3D CAD blocks in REVIT. ie: Not going to render.
-----------------------------------
.
