Forums >> Revit Building >> Technical Support >> Pattern - Running Bond

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Nov 23, 2015 at 12:17:44 PM | Pattern - Running Bond

#1

benlink


active

Joined: Fri, Jun 6, 2008
42 Posts
5 Stars: 1 Votes


I'm basically trying to creat a larger running bond pattern.  I started by copying the 8 x 16 CMU text in the .pat file and changed the numbers to what I thought would get the larger spacing:



*Clap Board 18x72,  18 x 72 blocks running bond

;%TYPE=MODEL

0,             0,             0,             0,             18

90,            0,             0,             36,             36,             36,             -36

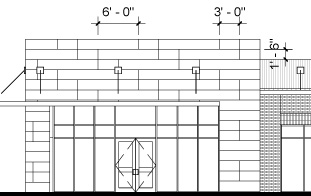

However, my results are not what I'm looking for.  See attached.  What am I doing wrong?

I've read over the instructions at the top, but I suppose I'm completely missing something.  Thanks.



I'm in 2015.



Attached Images


This user is offline



Mon, Nov 23, 2015 at 1:08:50 PM | Pattern - Running Bond

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 395 Votes


Your first 36 in the second row needs to be 18


This user is offline



Mon, Nov 23, 2015 at 1:35:34 PM | Pattern - Running Bond

#3

benlink


active

Joined: Fri, Jun 6, 2008
42 Posts
5 Stars: 1 Votes


I had thought that too, but it winds up with the attached pattern.

I'm trying to get 18" in height for horizontal lines, by 72" spacing of vertical lines.



See attached.



Attached Images


This user is offline



Mon, Nov 23, 2015 at 1:36:40 PM | Pattern - Running Bond

#4

benlink


active

Joined: Fri, Jun 6, 2008
42 Posts
5 Stars: 1 Votes


This being the pattern:



*Clap Board 18x72,  18 x 72 blocks running bond

;%TYPE=MODEL

0,             0,             0,             0,             18

90,            0,             0,             18,            36,             36,             -36


This user is offline



Mon, Nov 23, 2015 at 2:28:23 PM | Pattern - Running Bond

#5

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 395 Votes


Sorry ... I missed this

0,             0,             0,             0,             18

90,            0,             0,             18,             36,             18,             -18


This user is offline



Mon, Nov 23, 2015 at 3:39:36 PM | Pattern - Running Bond

#6

benlink


active

Joined: Fri, Jun 6, 2008
42 Posts
5 Stars: 1 Votes


Ah!



I need to study how these work more.

Thanks.


This user is offline



Tue, Dec 1, 2015 at 2:29:45 PM | Pattern - Running Bond

#7

marmiketin1


active

Joined: Wed, Aug 19, 2015
0 Posts
4.5 Stars: 10 Votes


The biggest tip for anyone trying to get started in patterns is that the x,y planes for the origin values are locked but the x,y planes for the shift values rotates with the angle.

You can test this by simply changing the 5th numbers, in the 0 degree row the 5th number shifts the horizontal lines up or down but in the 90 degree row the 5th number shifts the vertical lines left and right. This seems odd as both values are y-shifts but it is very useful when dealing with complex patterns that have many different angled lines.


This user is offline



Tue, Dec 1, 2015 at 3:18:32 PM | Pattern - Running Bond

#8

benlink


active

Joined: Fri, Jun 6, 2008
42 Posts
5 Stars: 1 Votes


Thannks for the info, marmiketin1.


This user is offline
