Forums >> Revit Systems >> Technical Support >> What happened to the surface of my model?
|
|
active
Joined: Fri, Oct 23, 2015
0 Posts No Rating |

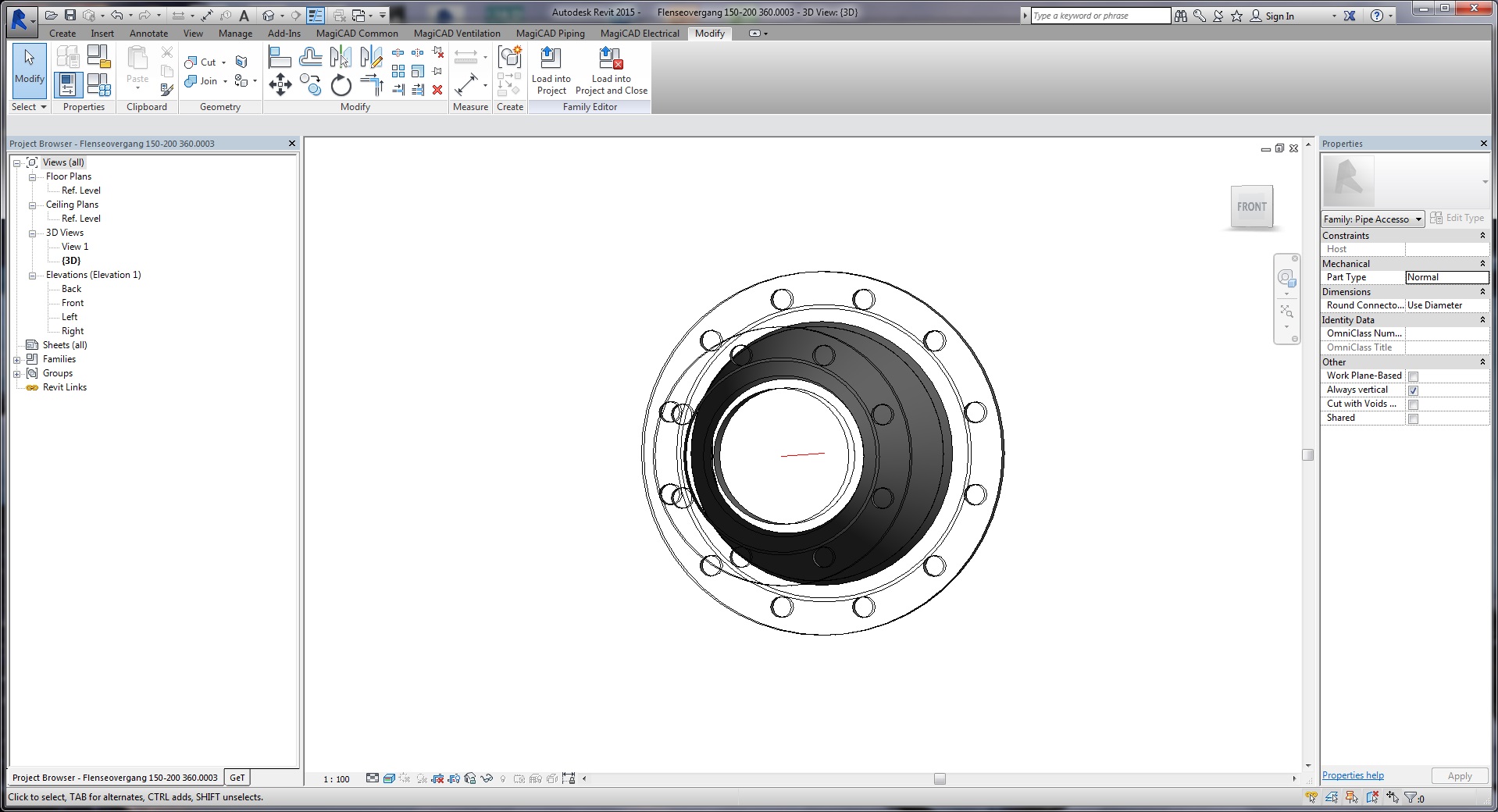

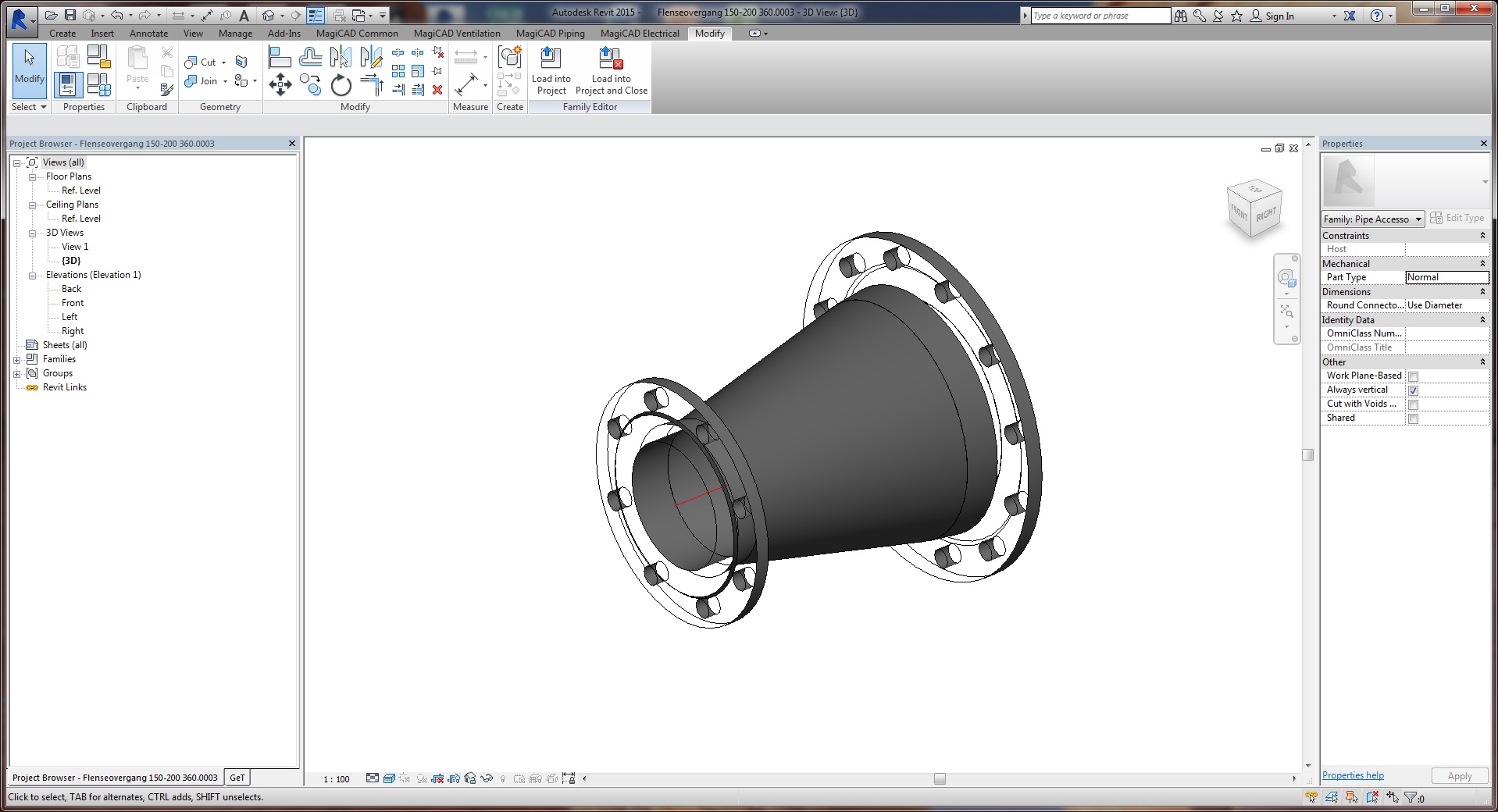

I have imported a 3D .dwg file into a new revit family. Usually the surface is consistently gray, however this time the flanges became transparent or white or at least not consistent. I have tried to change the material and the pattern without success. See attached image. Does anybody have any tips? Perhaps its is with the way i import models. I just use the Import CAD function.
|
This user is offline |
|
![](images/spacer.gif) |
|
active
![dgcad Avatar](user_avatar/6183.jpg)
Joined: Thu, Mar 17, 2005
1231 Posts
![3.5 Stars: 36 Votes](/images/stars_3.5.gif) |
It would depend on how the CAD file was created. ie: Solids / Surfaces and what CAD software was used. I would also use the CAD file to re-create the geometry in the REVIT Family then delete the CAD file.
-----------------------------------
.
FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150
|
This user is offline |
View Website
|
![](images/spacer.gif) |
active
Joined: Fri, Oct 23, 2015
0 Posts No Rating |
Many thanks for the reply. The file was made in AutoCAD but unsure how. Is there a way to fix the model itself? For this part it is ok to model after the geometry in revit, but i suspect more complex parts will have the same issues in the future.
|
This user is offline |
|
![](images/spacer.gif) |
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 391 Votes](/images/stars_3.5.gif) |
Do you understand that materials in CAD files are assigned by layers and that you can assign that under object styles/imported objects?
|
This user is offline |
|
![](images/spacer.gif) |
