Hello All and WWHub

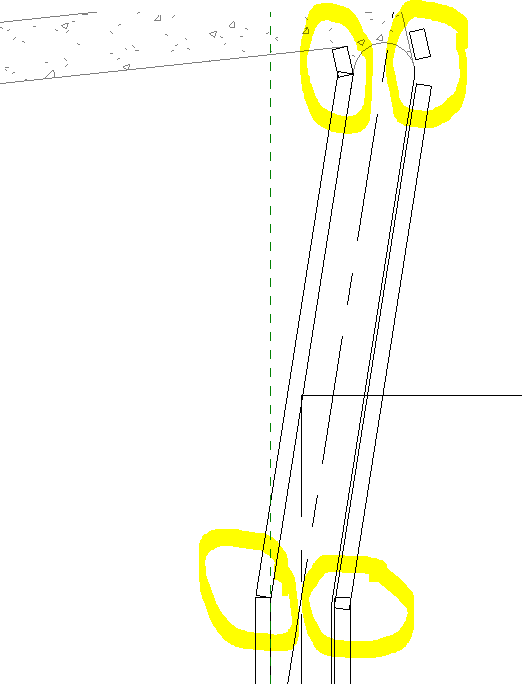

I have created generic model line based, based on other generic model. I would like to achieve so-called guide walls, with distance between them normalized by parameter (already done). However the problem is that when I am starting to draw loaded family in my model problems shown in enclosed picture happens. How to deal with them in such a way that it will be nice and easy to use them in future projects?

I enclose family file as well.

Regards.

Attached Images

Attached Files 141078_Guide-walls_-_2xwall.rfa

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

What is a guide wall?  Why not a wall?

You will never get family elements to join like walls join.
