Forums >> Revit Building >> Technical Support >> Inplace Family in callout detail prints differently to screen view.

Beaucoupnice

active

Joined: Mon, Nov 19, 2007
93 Posts

Hiya,

Revit 2015 Model:

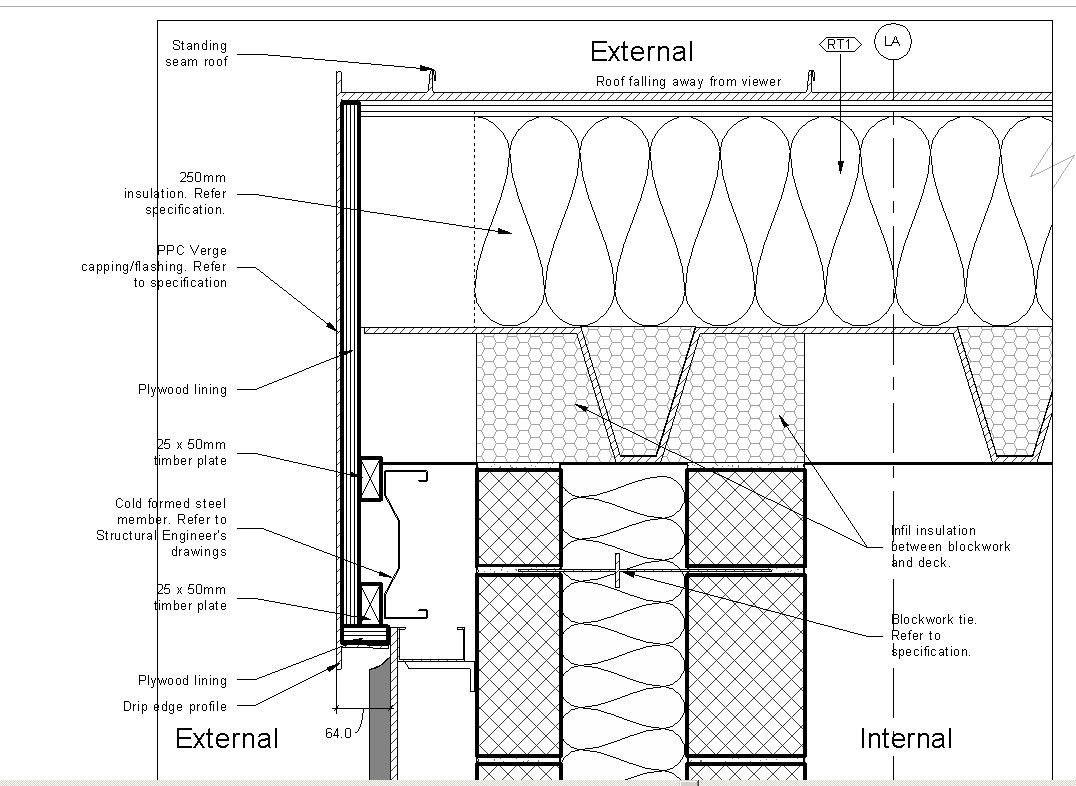

I have an inplace sweep family for a roof flashing under the category of Roof. Within a callout view, the flashing is cut and it shows correctly in section. The view depth is set to 0 so I see nothing in the background.

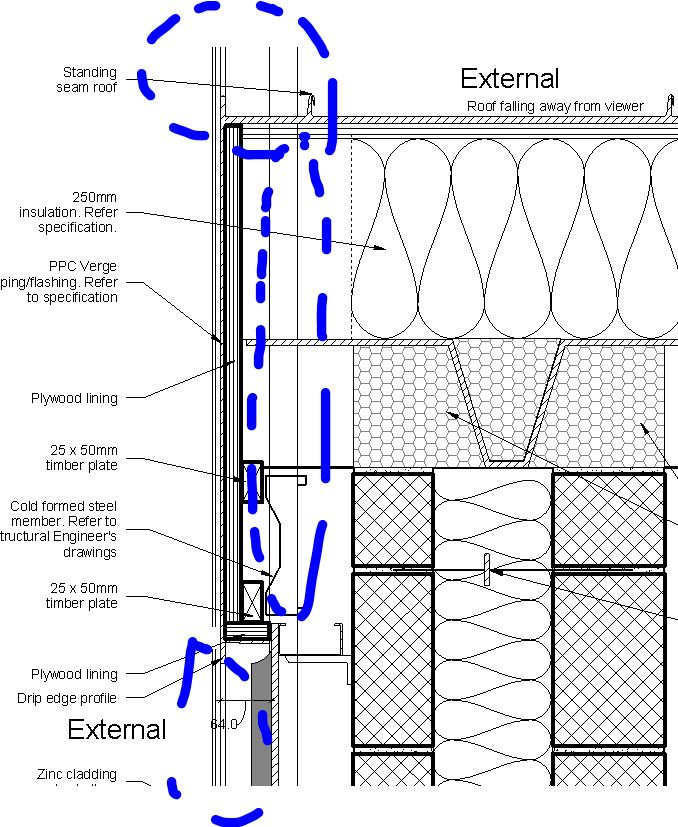

However when I plot, the inplace family shows in the background.

Any ideas whats going on.

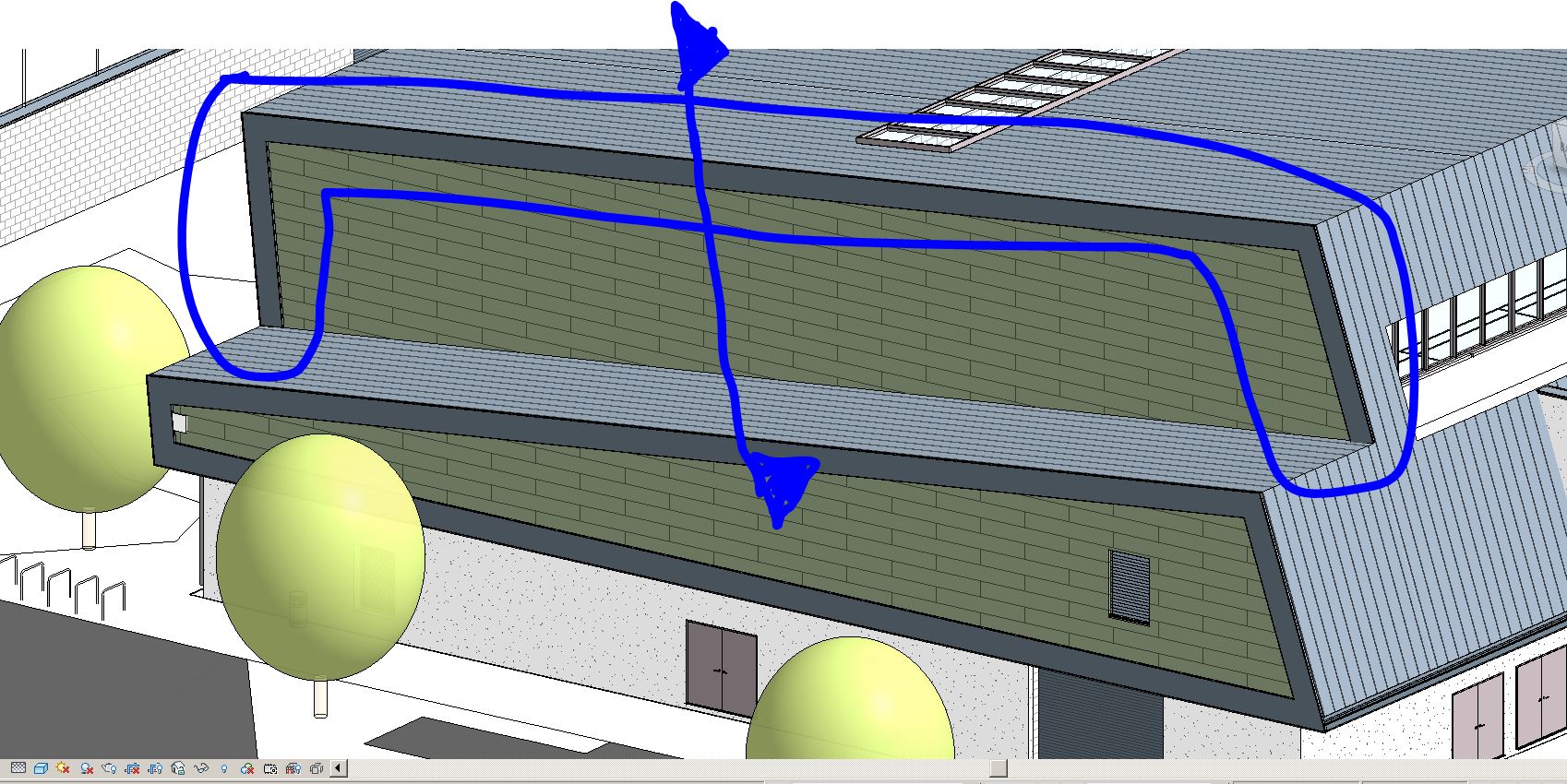

Thankyou in advance . Images attached.
