Hi all,
Ive been having a few issues trying to create a .pat file which shows our proposed tile layouts. I always struggle to get these .PAT files to work correctly.
If anyone could help, it would be much appreciated. They need to be model patterns (not drafting patterns).

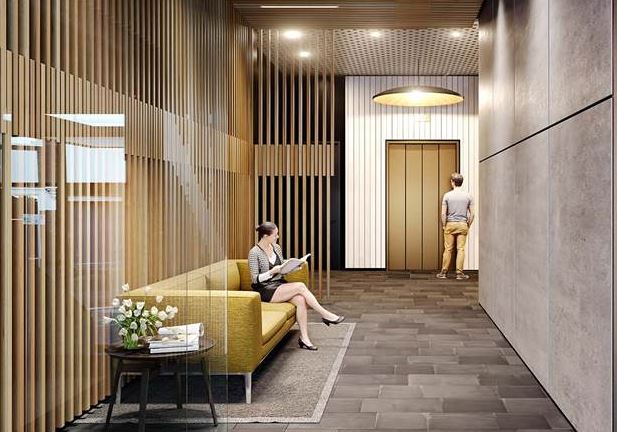

- The first pattern uses 2 tile sizes of 400x195mm & 195x195mm. The layout is as per the image attached titled Screenshot1 and the detail lines in the attached Revit 2015 file (Lobby Flooring Detail Lines).

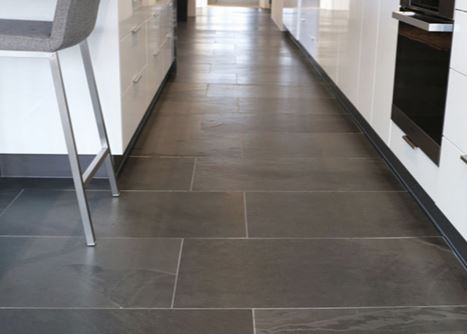

- The second pattern uses 1 tile size (either 605x400mm OR 810x400mm) with a stretcher bond type layout. Layout is as per attached image titled Screenshot2.
Much appreciated,
Kristian
|
This user is offline |
|
![](images/spacer.gif) |
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 391 Votes](/images/stars_3.5.gif) |
Kristian, you have been a member for several years. Maybe now is a good time to learn how to modify pat files.
Although neither of these are regular running bond patterns, that's a good file to start with. Find your Revit pat files. All of them are together in one file but you can copy out just one pattern, in this case I would start with block because the pattern is easy to see. You will recognize the length and height (and 1/2 length) numbers. Change one of these, load the pattern and see what happens.
Here is a 1/3 running bond pattern (english) for you to experiment with.
*6X26 1-3rd running bond MODEL
;%TYPE=MODEL
0, 0,0, 0,6
90, 0,0, 0,26, 6,-6
90, 8.67,6, 0,26, 6,-6
Hint... the 8.67 is the 1/3 (26)
Edited on: Thu, Jul 30, 2015 at 7:35:27 AM
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Thu, Sep 27, 2012
0 Posts No Rating |
Thanks for your reply WWHub,
Whilst i appreciate your feedback, the tone of your first line sounded very condescending.
I may have been a member for several years, but rarely do i come here for anything unless im truely stuck.
I didnt say i dont know how to make .pat files. Just that i struggle to make them work correctly. This is not always the case, just sometimes the offsets and distances all become quite confusing, and when you have time constraints and directors breathing down your neck, it is often best left to the experts who can create a file that works correctly first go, rather than me sitting here for hours trying to figure it out.
In the perfect world, sure, id sit here all day and learn how to create great .pat files, but in reality, thats not ever going to happen.
So again, i thank you for your feedback, but maybe next time keep the condescending comments to yourself. Thank you.
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Tue, Jan 27, 2004
80 Posts
![3.5 Stars: 4 Votes](/images/stars_3.5.gif) |
Interesting. TIL you cannot manipulate Line Styles within a .rfa which adds an item to my to-do list ...
Attached is a pattern exported from Revit that was created by HatchKit directly from the pattern template contained in the family file originally posted.
For the time being it's much easier if the arrangement is presented in a project file rather than in a family file so if you are still baffled please post the second as a .rvt ![Smile](/images/smiles/smile.gif)
-----------------------------------
