Forums >> General Discussion >> Revit Project Management >> please help with ibr roof
|
|
active
Joined: Sun, Jan 4, 2015
0 Posts No Rating |
hi im from Namibia and here we use 90 ibr roofs when we build houses.
i tried to follow this tutorial but cannot get it right. can anyone please make and upload the profile and show me how to do it like ibn a video
here is the link
http://revitfamilies.blogspot.com/2008/08/quantify-profiled-roof-sheeting.html
|
This user is offline |
|
![](images/spacer.gif) |
|
active
![Beaucoupnice Avatar](user_avatar/46219.jpg)
Joined: Mon, Nov 19, 2007
93 Posts
![3.5 Stars: 6 Votes](/images/stars_3.5.gif) |
I wouldn't suggest 3D modelling a profile roof sheeting, as the amount of 3D information each sheet would contain would make your model size very large and slow it down too much.
I would build up the roof to give you the correct overall thickness ( from face of internal finish to face of external finish and make sure the external finish material uses a region fill model pattern that matches your profile sheet pattern. This way any view (elevation, section, roof plan) you take of that roof will show the correct sheeting pattern and any section you take through the roof will show the correct overall buildup. When you come to do the 1:5/1:10 details of the roof then just draw over the top of the 3D section, the 2d linework to represent the true metal profile.
If you want to show the actual profile in 3D try searching through youtube, there is heaps of help videos there including:
1) https://www.youtube.com/watch?v=bG2SxClyb5M
2) https://www.youtube.com/watch?v=YfILPy61lGM
-----------------------------------
__________I'm the guy they come to when they didn't follow my recommended workflows.__________ |
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Sun, Jan 4, 2015
0 Posts No Rating |
i already have sumthing like that.
do u might a pat file that resembles ibr zinck roofing, just sumthing similiar
|
This user is offline |
|
![](images/spacer.gif) |
active
![Beaucoupnice Avatar](user_avatar/46219.jpg)
Joined: Mon, Nov 19, 2007
93 Posts
![3.5 Stars: 6 Votes](/images/stars_3.5.gif) |
Sinc roofing patterns will differ depending on what your supplier uses.
Start by searching Revitcity for pat files such as
http://www.revitcity.com/downloads.php?action=downloadnow&object_id=3080&object_file_type=pat
http://www.revitcity.com/downloads.php?action=downloadnow&object_id=3137&object_file_type=pat
or try googling revit pat files

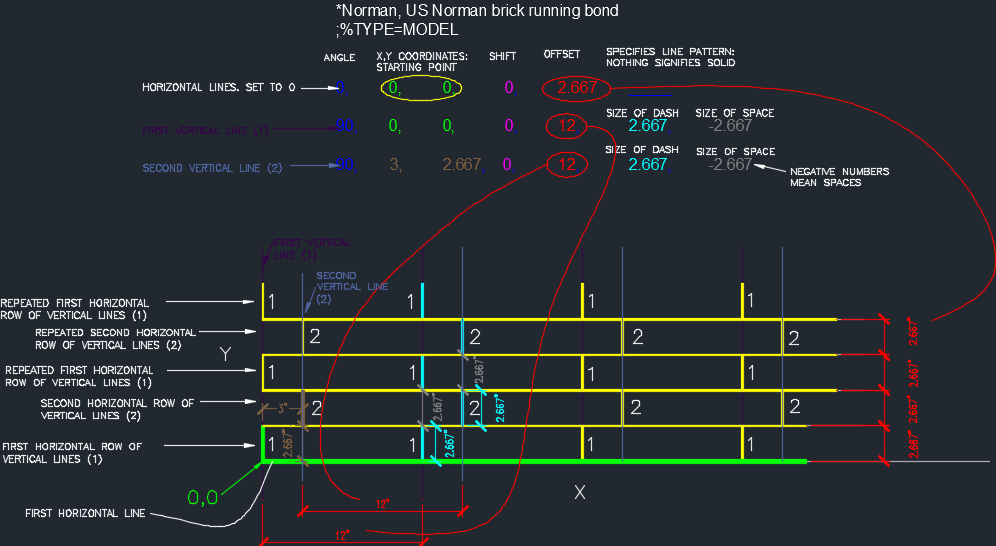

or better still you can learn to write your own pat files (see attached description)
-----------------------------------
__________I'm the guy they come to when they didn't follow my recommended workflows.__________ |
This user is offline |
|
![](images/spacer.gif) |
active
![rbcameron2 Avatar](user_avatar/78200.jpg)
Joined: Sun, Oct 19, 2008
101 Posts
![4 Stars: 25 Votes](/images/stars_4.gif) |
I still believe Hatch-22 is available, but only for Revit 2012/13/14/15
http://mertens3d.com/tools/tools.php
-----------------------------------
RB Cameron
3D Medical Equipment
Download Revit Healthcare Models Now
Download Other Revit + 3dsMax Models Here |
This user is offline |
View Website
|
![](images/spacer.gif) |
active
Joined: Sun, Jan 4, 2015
0 Posts No Rating |
can u create a pat file for me? the examples are here
http://3.bp.blogspot.com/_973-gVAIYow/SLa7C0dv1uI/AAAAAAAAAJU/8Ao02ja2t4k/s320/IBR+Beam.jpg
http://www.roofrollformingmachine.com/photo/roofrollformingmachine/editor/20140322134453_62259.jpg
http://i01.i.aliimg.com/img/pb/546/186/268/1285054436127_hz-myalibaba-web-temp1_2127.jpg
http://www.corrline.co.za/images/IBR_Corrline.jpg
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Sun, Jun 14, 2009
68 Posts
![3.5 Stars: 4 Votes](/images/stars_3.5.gif) |
here is a helpful link for you.
http://revitfamilies.blogspot.com.au/
cheers
|
This user is offline |
|
![](images/spacer.gif) |
![](images/spacer.gif) |
