Hi, I am playing around with stair representations, as my boss dislikes how revit displays stairs.

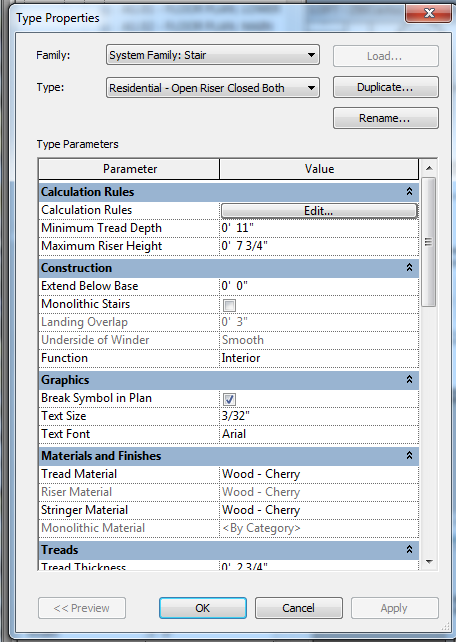

Ive been adjusting with in the VG, hiding given lines, above supports I remember within the type properties of Stairs, under graphics there is an option for a double cut line/break line... Giving some sepparation where the stair is being cut, this option is missing from mine or possible It has been moved... See image below... Thanks

Im not sure and hopfully its not due to the type of stair, or VG ive adjusted...

Thanks in Advance...

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

What Revit????

Stair by sketch and by component are different.   By component has the double line possibility.

This user is offline

kottwitz

active

Joined: Mon, Oct 25, 2010
10 Posts
No Rating

Sorry, 2015...

This is by sketch, is there a work around?

Thank you for the reply.

This user is offline

voduong

active

Joined: Sat, Jan 10, 2009
0 Posts
No Rating

When i use revit 2015 .I have confused

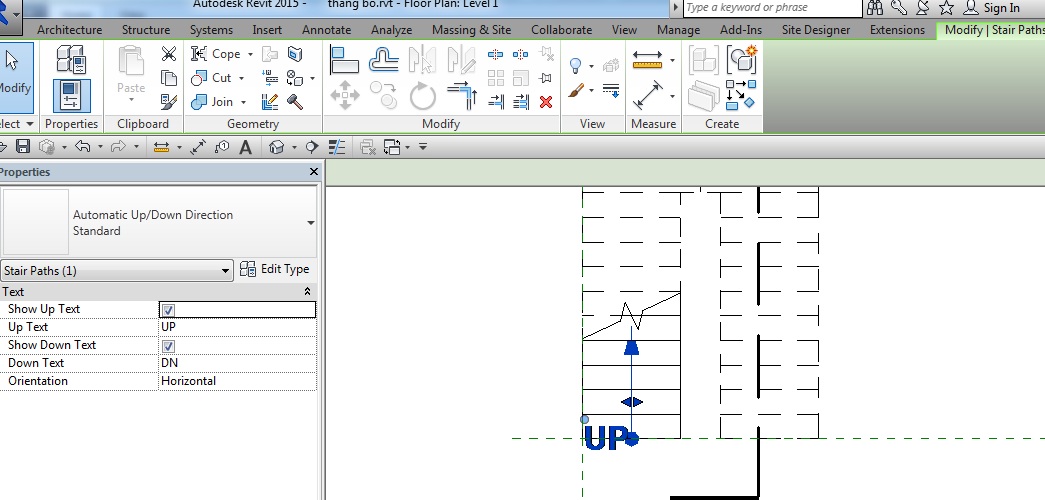

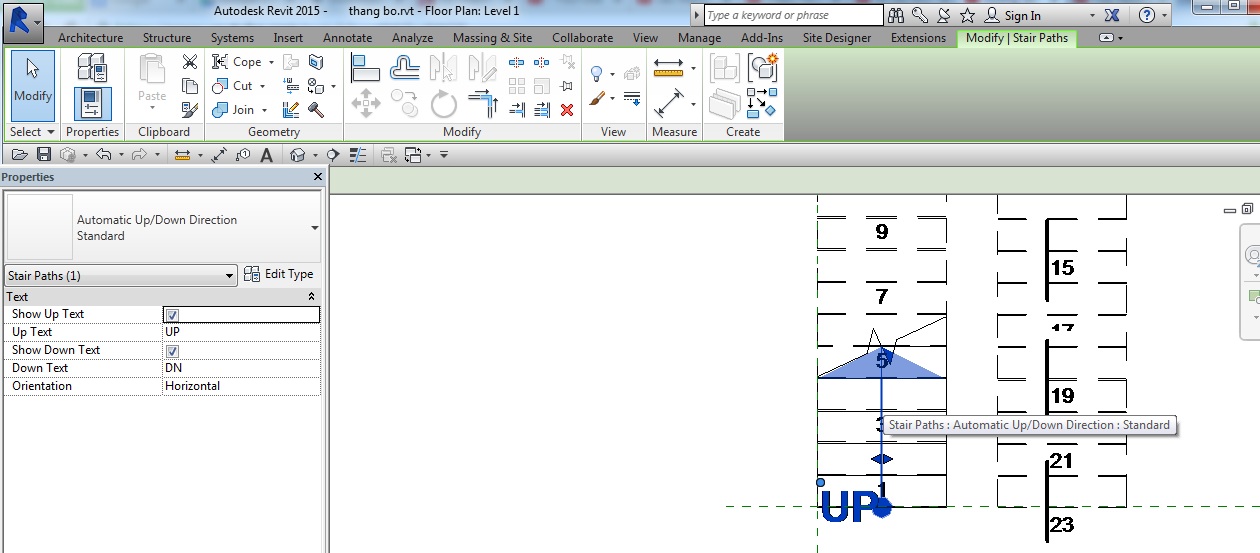

why is arrow head  covered by cut mark in stair by component ?

Attached Images
