Hi all,

I just want to ask how can I freely move / rotate my Electrical Fixture Annotation (e.g. height annotation of C.O. symbol) to where or the orientation I want it to be (vertical or horizontal, left or right)?

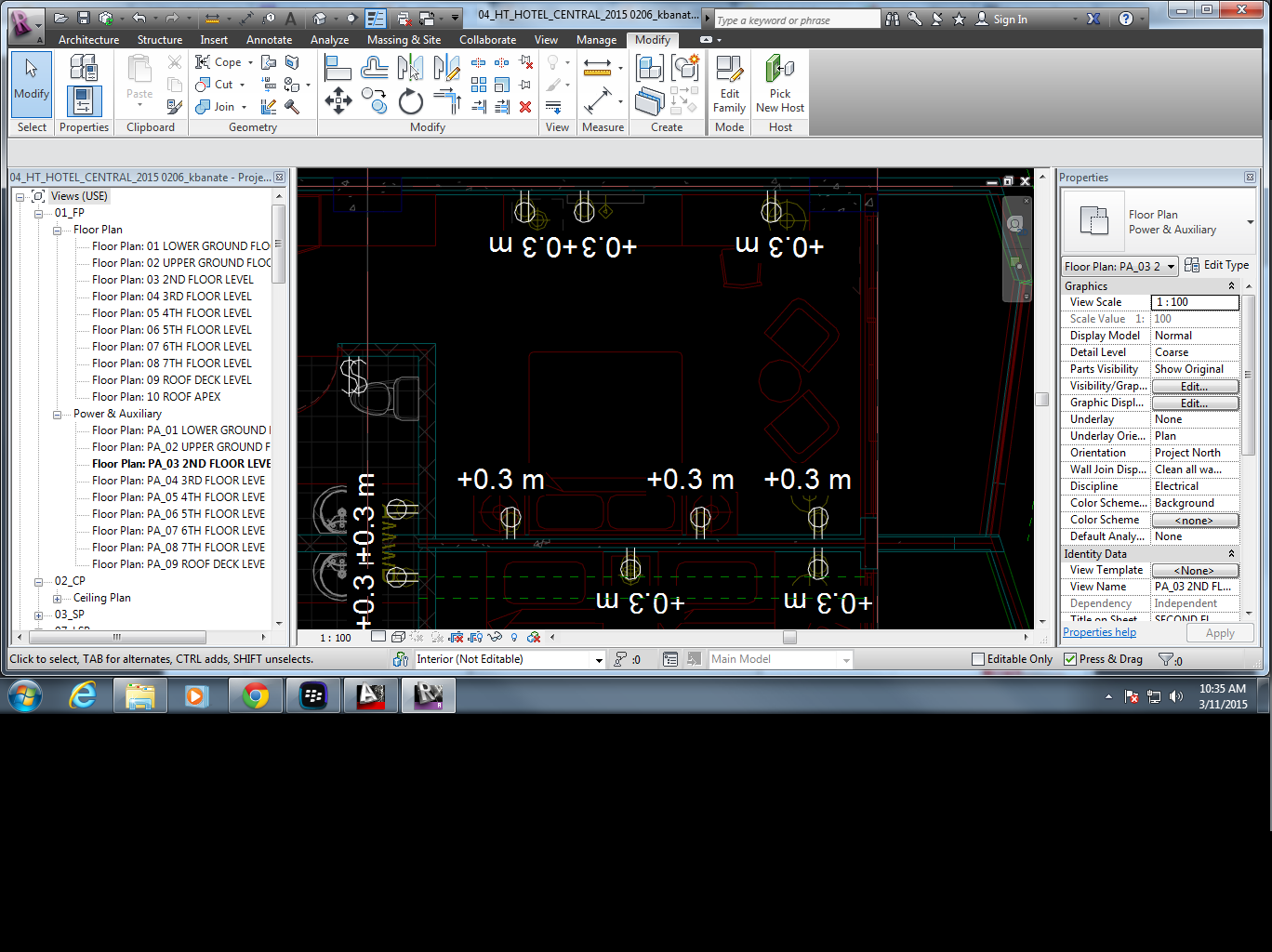

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Is that a nested annotation family or just text in the family?

This subject has been discussed many times here on RC.... Do some searches.
