Forums >> Revit Building >> Technical Support >> Mullion behind Glass Question
|
|
active
![crwinchester Avatar](user_avatar/187252.jpg)
Joined: Sat, Sep 4, 2010
173 Posts
![4 Stars: 5 Votes](/images/stars_4.gif) |

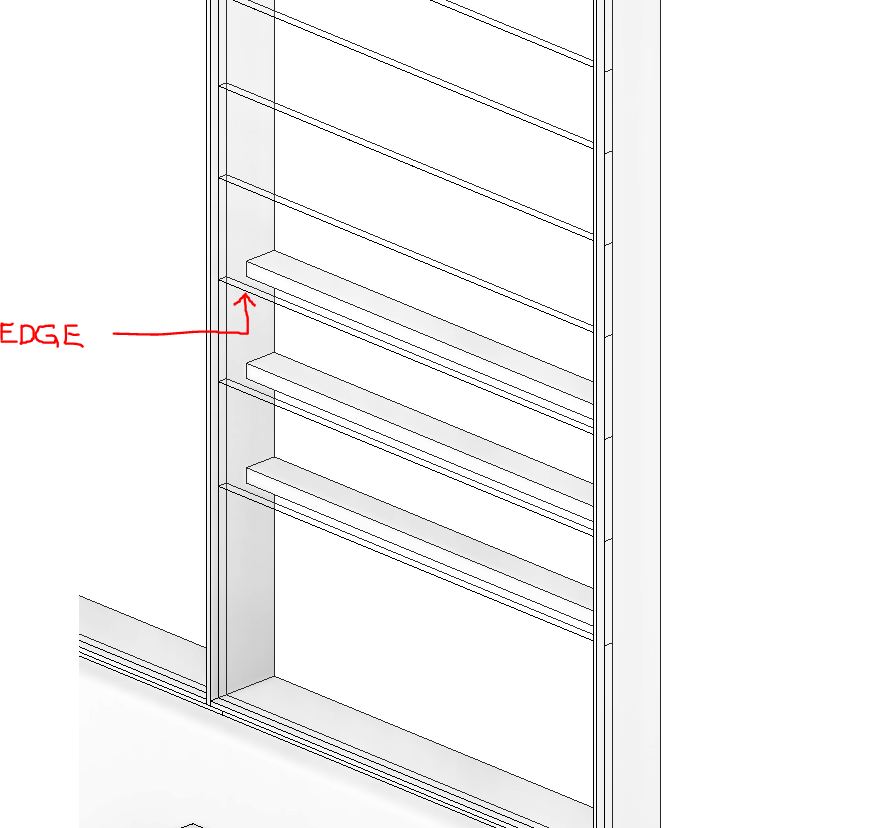

I'm trying to model a Curtain Wall that has slats behind the glass. I'm hoping I can model the slats as mullions so that I can control them accordingly in lieu of curtain panels where the would be included. I modeled these elements using a profile that does not penetrate the center front/back reference plane so it doesn't trim the curtain panel. For the most part this works, but the mullion still divides the curtain panel. I don't want these edges to appear in any of my views, and I don't want to have to manage lineweights for the dozens of edges that would result. Does anyone have any suggestions for managing this? Thanks.
(Version: 2014)
|
This user is offline |
|
![](images/spacer.gif) |
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 391 Votes](/images/stars_3.5.gif) |
Use two curtain walls in the same place. One has only these items but no glass and no verticals.
|
This user is offline |
|
![](images/spacer.gif) |
active
![crwinchester Avatar](user_avatar/187252.jpg)
Joined: Sat, Sep 4, 2010
173 Posts
![4 Stars: 5 Votes](/images/stars_4.gif) |
I was afraid of that. Gets a little messy with the vertical mullions wanting to be the supports for both the glass and the slats. But then again that is the design and the only alternative I guess is modelling them as a curtain panels. Thanks Mr. 'Hub!
|
