Forums >> Revit Building >> Technical Support >> Linework Tool Issue
|
|
active
Joined: Mon, Feb 10, 2014
0 Posts
![3 Stars: 2 Votes](/images/stars_3.gif) |
I made a section view that cuts through a stair. I want the railings in the background to appear halftone so that they still show up, but don't interfere with the railings in the foreground (and so it gives a bit of depth perception). Since there's no "View Range" option in a section view like there is for a plan view, I tried using the Linework tool to change all the background railings to the <Beyond> linestyle.

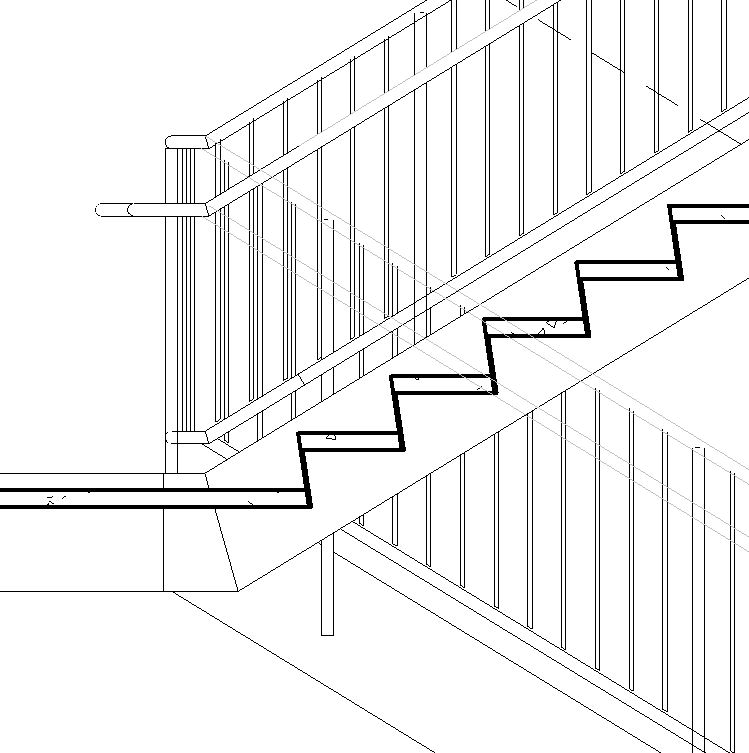

The problem is, all of the lines I change with the Linework tool show up in front of the stairs and railings in the foreground. Is this a Revit glitch? I've attached a screenshot below.
|
This user is offline |
|
![](images/spacer.gif) |
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 391 Votes](/images/stars_3.5.gif) |
When you use the linework tool, you will see a blue grip on each end for adjustment. You may have to use this tool for each length of railing. Not an easy process in this application.
|
This user is offline |
|
![](images/spacer.gif) |
active
![pijpiwo Avatar](user_avatar/187179.jpg)
Joined: Fri, Sep 3, 2010
0 Posts
![5 Stars: 25 Votes](/images/stars_5.gif) |

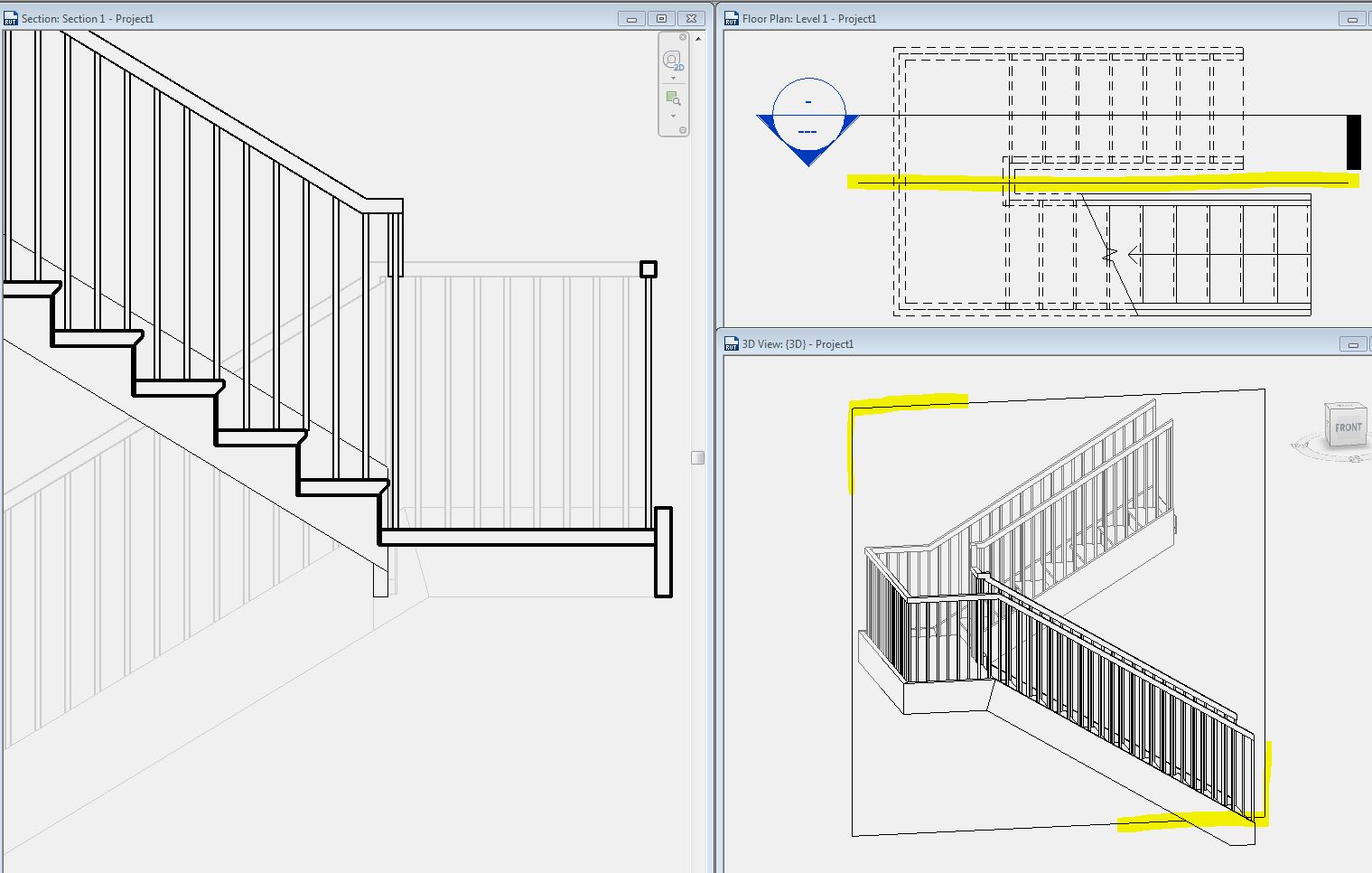

A semi-transparent object, like mass, would work. Override its transparency by element in section view and keep its global visibility off, except in section view.
|
This user is offline |
|
![](images/spacer.gif) |
site moderator|||
![teafoe5 Avatar](user_avatar/204239.jpg)
Joined: Fri, Nov 12, 2010
1749 Posts
![4 Stars: 47 Votes](/images/stars_4.gif) |
You could also do that part of the railing as a separate railing and then just override it to halftone.
|
This user is offline |
