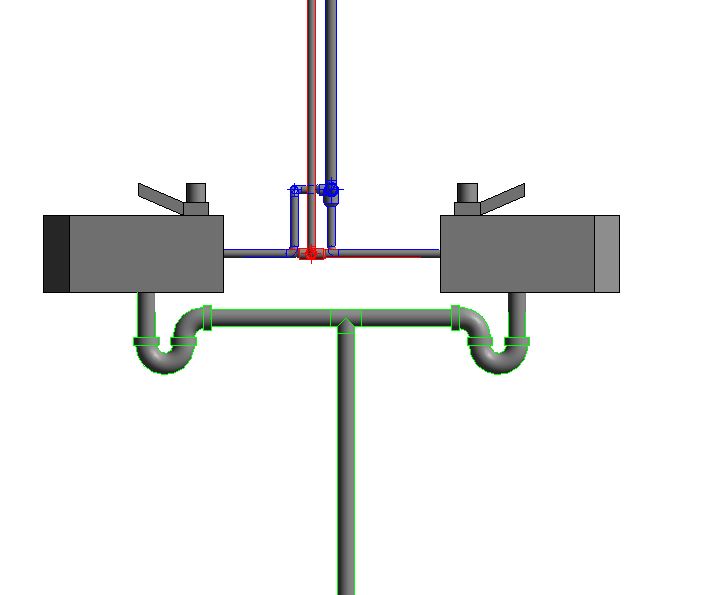

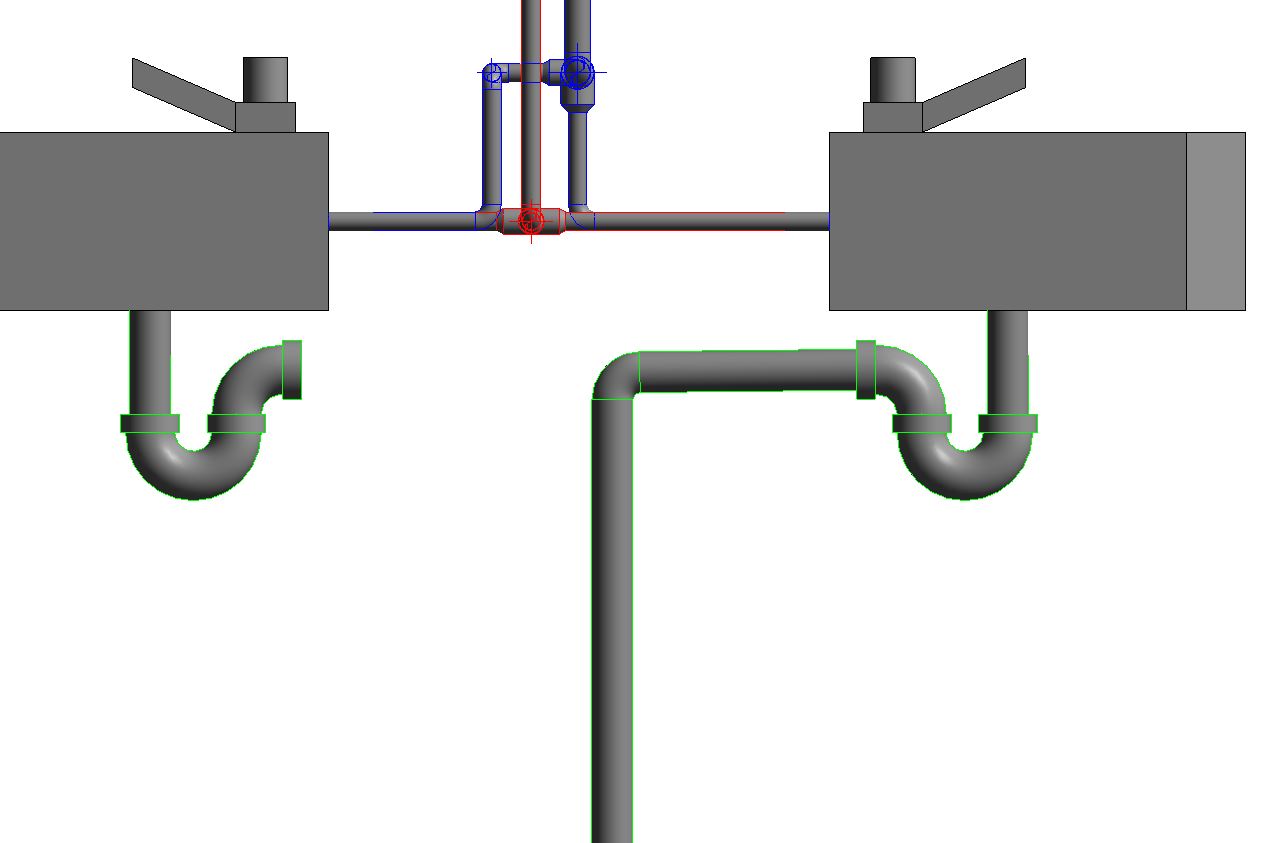

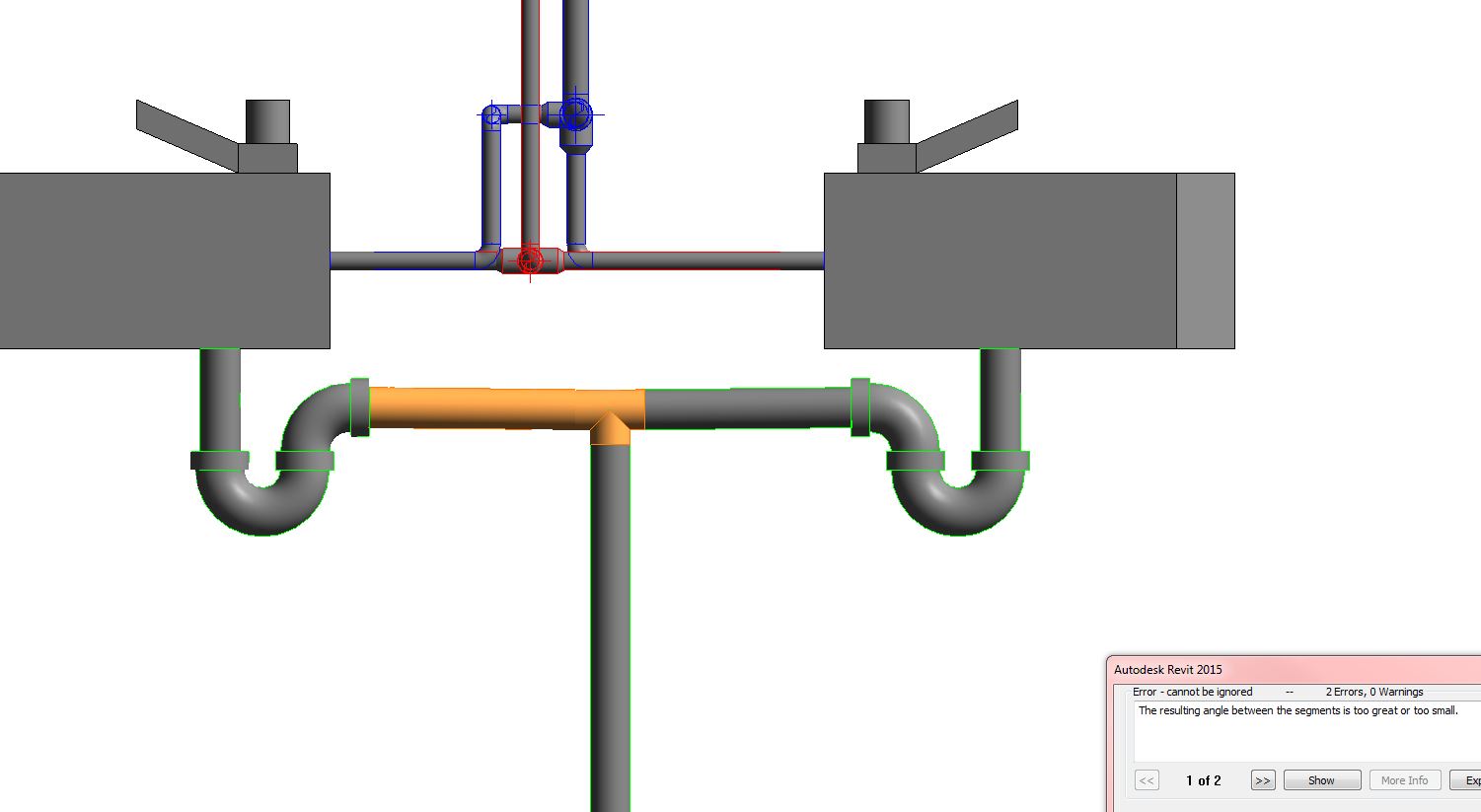

Working in Revit 2015 Update release 4. Trying to connect a sanitary line between 2 sinks. The first jpeg (no slope) depicts the sinks connected w/ no slope and there is no problem. 2nd jpeg (one side sloped) depicts one of the sinks sanitary line sloped 1/8 plf to the main and still no problem. But the 3rd jpeg (two sides sloped) both lines at 1/8 plf, it will not connect to the tee fitting and I get an error message. Anybody know how to fix this? Both sinks are equal distance from the main sanitary so elevation is not the problem.

Attached Images

This user is offline

teafoe5

site moderator|||

Joined: Fri, Nov 12, 2010
1749 Posts

I would assume it is a problem with the connection family not being able to create the segment at that angle on both sides.  If you change the angle on ONE of them to more of a slope or less do you still get the same error?

This user is offline

View Website

fastjohnnyz

active

Joined: Thu, Jan 29, 2009
51 Posts

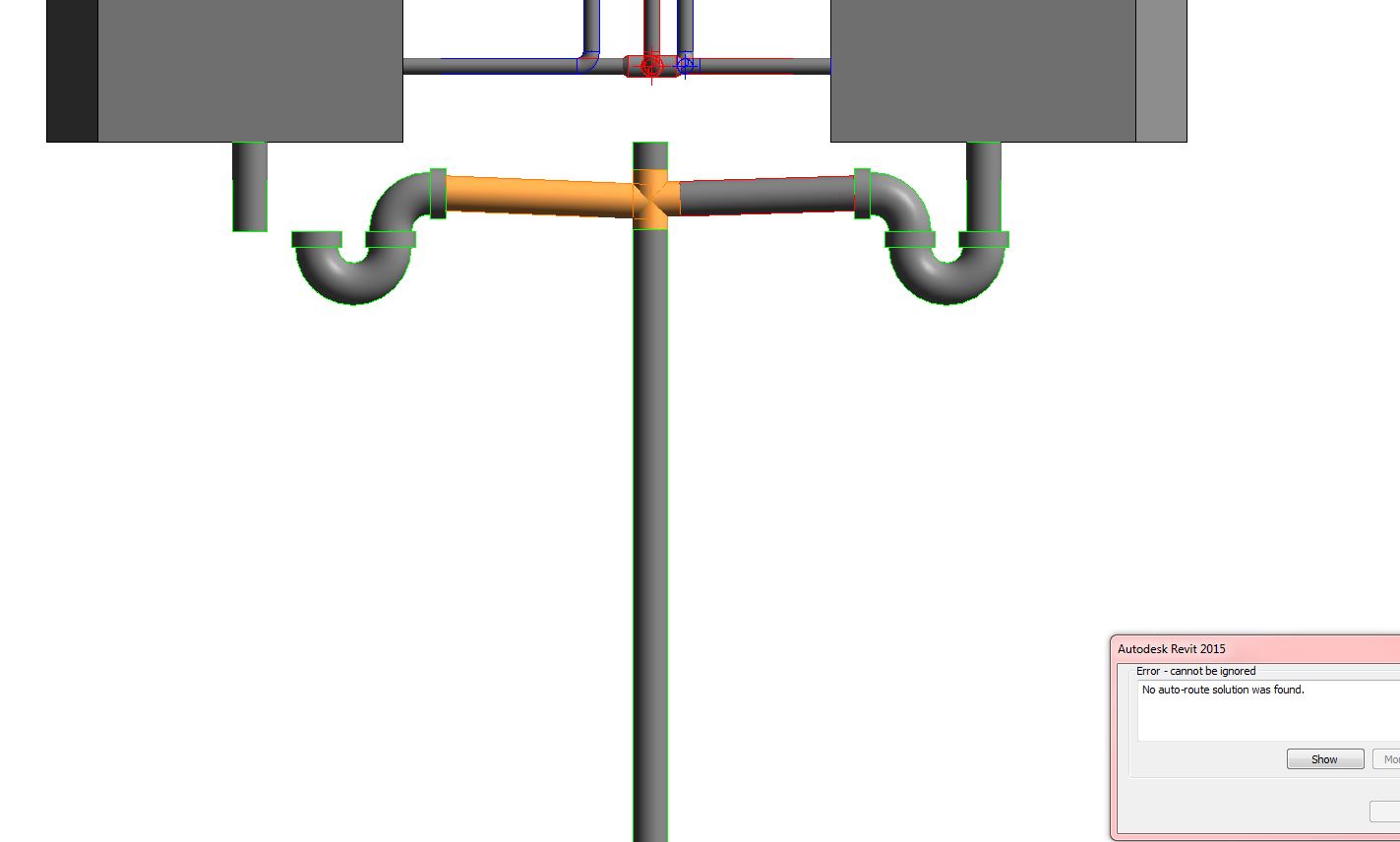

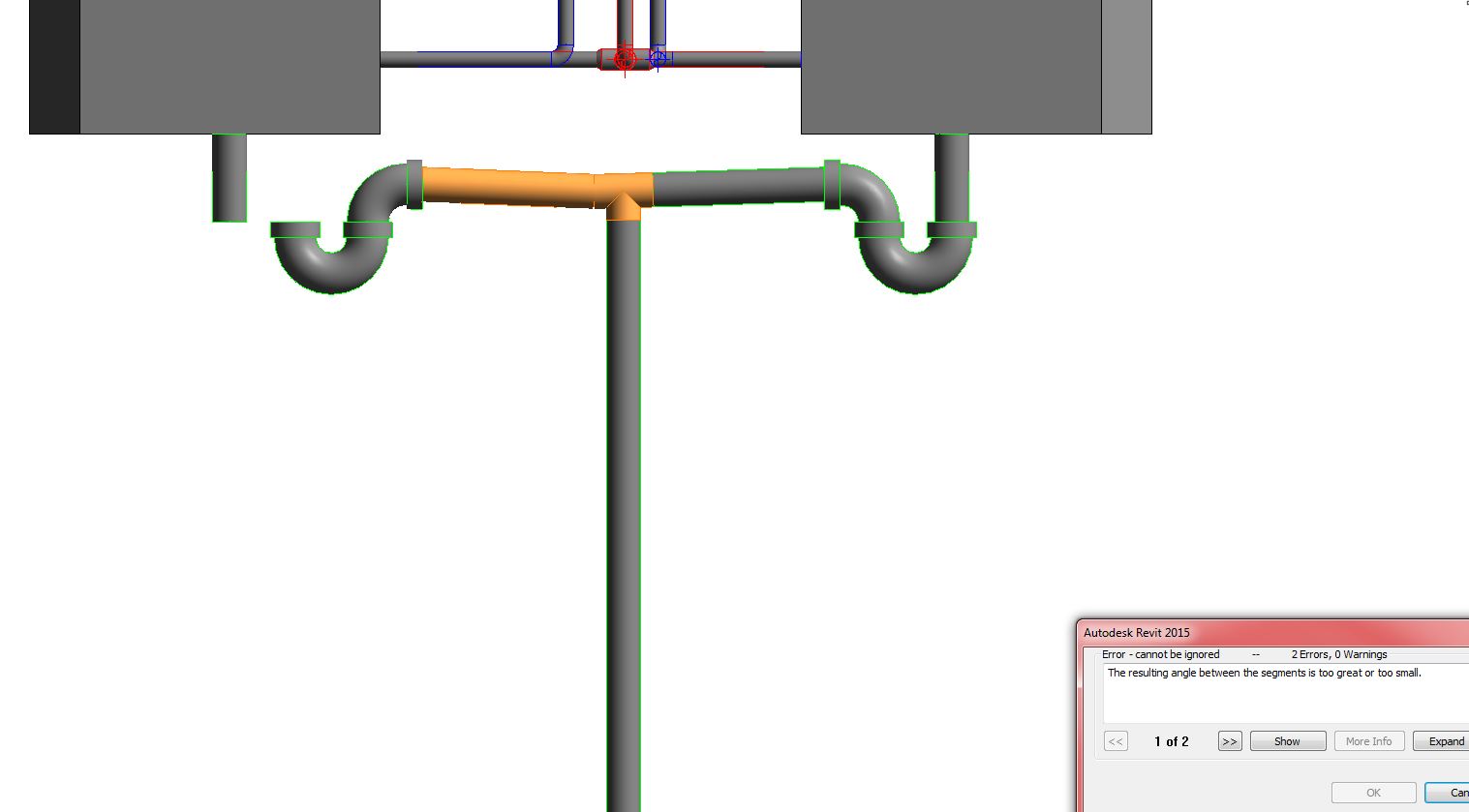

Yes and no, I tried 2 different ways. I switched my slope to 1/2" plf. I then connect one side to the main and no problem. But if I connect the other side I get the same error message (jpeg one half slope part 2) "The resulting angle......." But if I pull up the main sanitary above the connection points and then connect both lines (jpeg one half slope) I get a different error message. So in short, for the most part I can connect any line at whatever slope no problem. The fitting adusts to the slope. But when I connect with another line (mirrored from the other side) the new 'tee' fitting will not accommodate the 2nd lines slope. It retains the first line.
