Forums >> Revit Building >> Technical Support >> adding mullions to archtop with trim

Ozren

active

Joined: Wed, Apr 23, 2014
0 Posts
No Rating

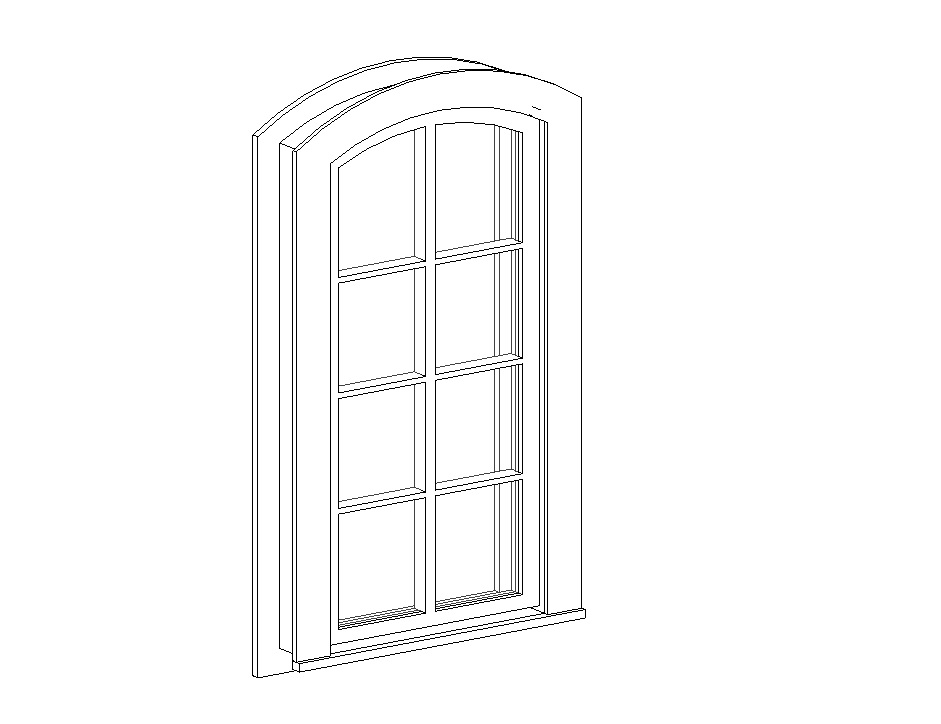

Hello good people,I would like to add some mullions to a standard archtop with trim window in 2014 (image 1), and I would like it to be parametric. I have quickly realized that simply editing the extrusion of the frame is not going to work - when I try and change the window size things go badly (image 2) and naturally it kills the extrusion as soon as I try and make the window wider. I know I have to use reference planes, but I am not sure where to place them exactly. Can anyone help me out please? Thanks for your time.

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Your question involves too much to cover here.  You need some fundmental knowledge about building families first.

Start here:

http://revit.downloads.autodesk.com/download/RAC2009/Families_Guide/ENU/Family_Guide/PDF/ArchitectureFamiliesImpENU.pdf
