Hey guys what is the best way to show the elevation spot levels in elevation.

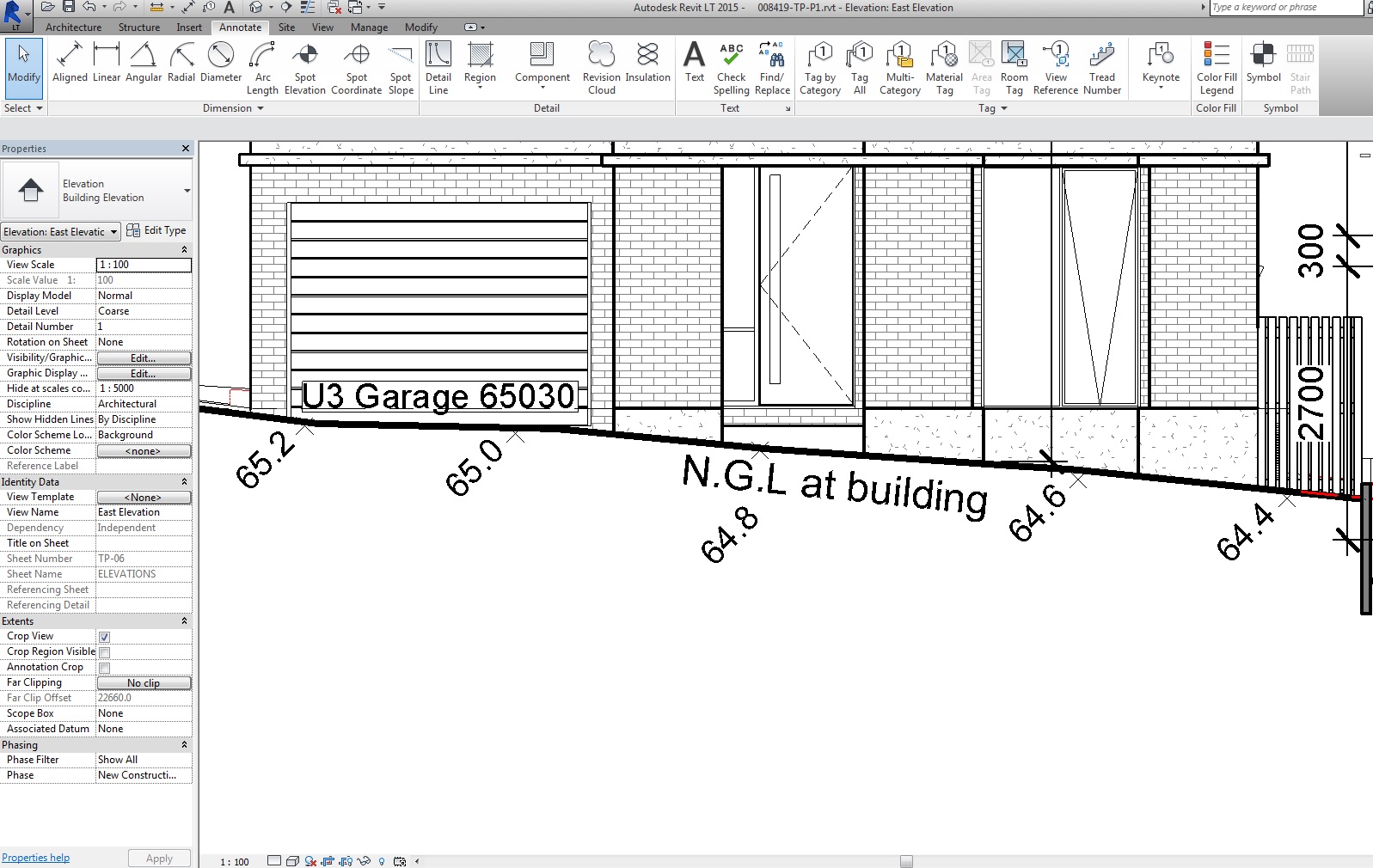

The spot elevation tool wont lock on to the topo.



Cheers.



Attached Images


-----------------------------------

Revit 2018........

This user is offline



Wed, Sep 10, 2014 at 9:36:36 PM | Ground Line elevation markers

#2

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 25 Votes


You can create horizontal (or vert.) ref planes and use spot elev. tool at the intersection of the ref planes and grade. It won’t snap to the intersection, but it should be close enough, imho.


This user is offline



Wed, Sep 10, 2014 at 10:08:32 PM | Ground Line elevation markers

#3

Jamie351


active
Jamie351 Avatar

Joined: Mon, May 23, 2011
124 Posts
4 Stars: 7 Votes


have to draw a few of them then if the site is a bit all over the place.. Thanks


-----------------------------------

Revit 2018........

This user is offline



Thu, Sep 11, 2014 at 7:57:42 AM | Ground Line elevation markers

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 395 Votes

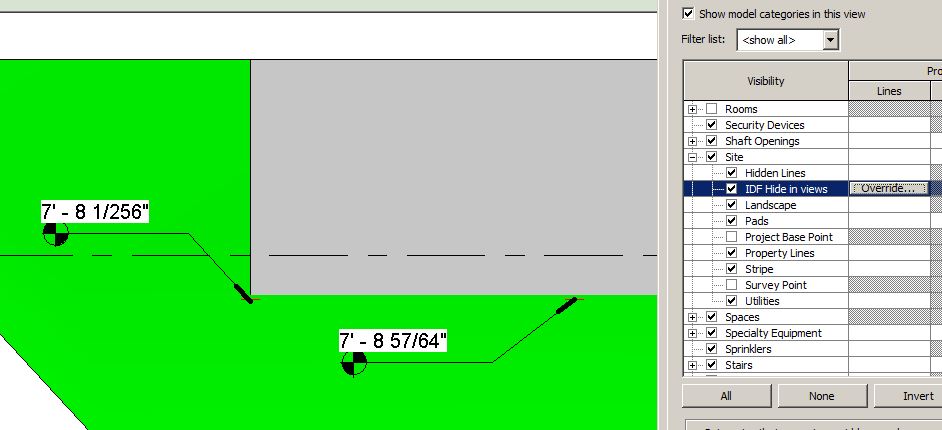

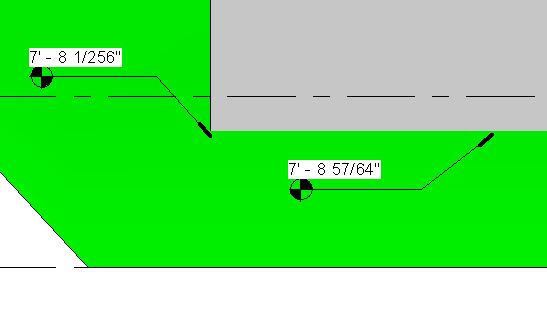

You can place a site hosted family that you can then tag the elevation.  It can be a model line in a new site sub-category that is normally off except when you need to see it to tag it.  You can just see the red line in the second image which is the IDF sub-category linetype.



Attached Images


This user is offline



Fri, Sep 12, 2014 at 12:11:47 AM | Ground Line elevation markers

#5

Jamie351


active
Jamie351 Avatar

Joined: Mon, May 23, 2011
124 Posts
4 Stars: 7 Votes


Hey WW,



How do I draw the model line. I dont have that option when I go into the topo.

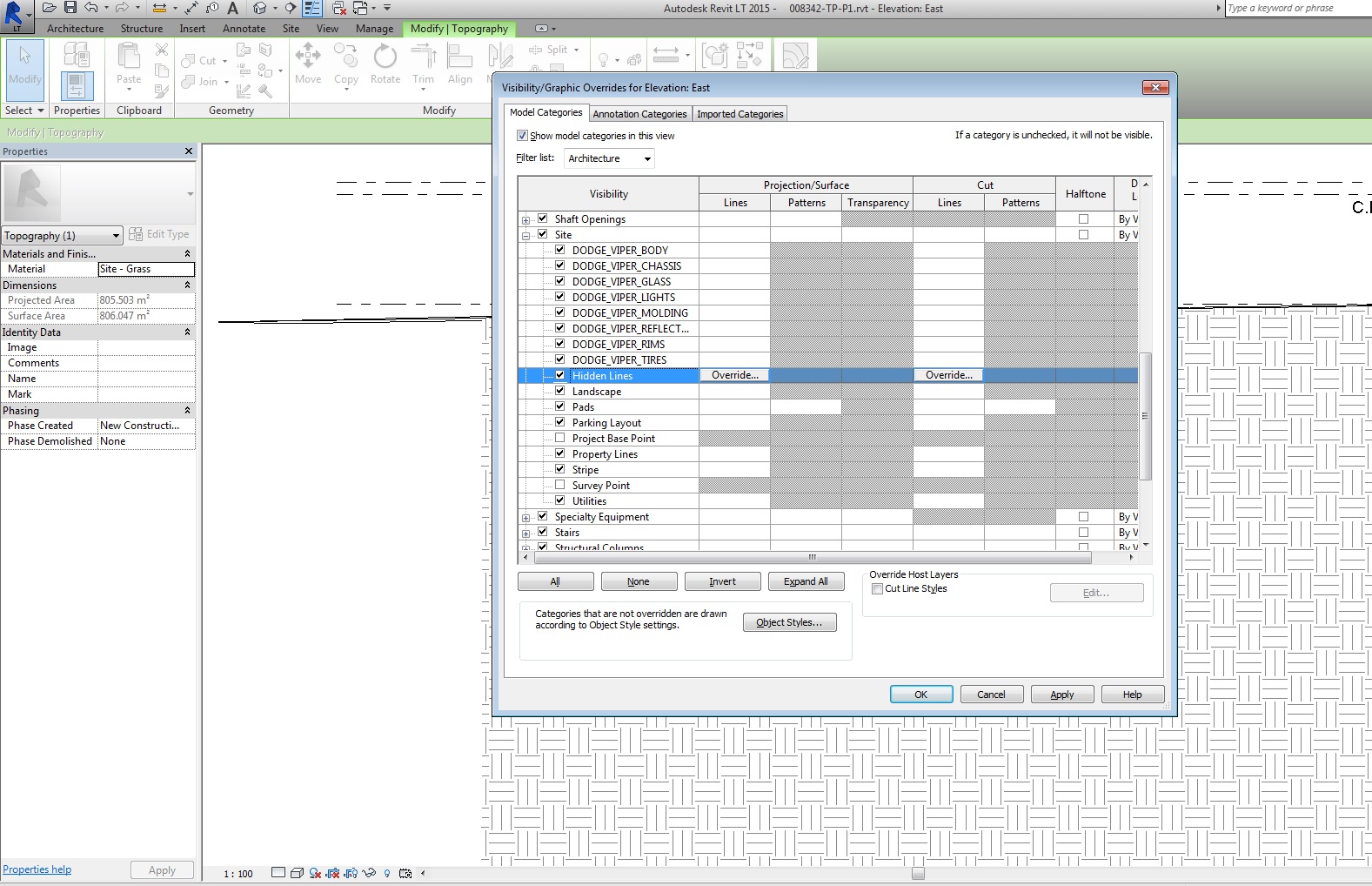

Attached Images


-----------------------------------

Revit 2018........

This user is offline



Fri, Sep 12, 2014 at 7:55:50 AM | Ground Line elevation markers

#6

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 395 Votes


The model line is drawn in the family and the family is site hosted.




This user is offline



Fri, Sep 12, 2014 at 8:50:48 AM | Ground Line elevation markers

#7

Jamie351


active
Jamie351 Avatar

Joined: Mon, May 23, 2011
124 Posts
4 Stars: 7 Votes


sorry but not quite sure what you mean and how to do that.


-----------------------------------

Revit 2018........

This user is offline



Fri, Sep 12, 2014 at 9:34:08 AM | Ground Line elevation markers

#8

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 395 Votes


Here is a quickie.... modify it as you need to.   NOTE - the red circle is a model line in a whole new sub-category that can be turned off in VG.



This user is offline
