Forums >> Revit Building >> Technical Support >> Z dimension (Elevation) display on 2D plan

CBISHOP7

active

Joined: Wed, Jul 9, 2014
0 Posts
No Rating

I am using Revit MEP 2013 and am trying to produce a 2D as-built of my conduit racks with the elevations called out.  Essentially, once I build the 3D model of my conduit racks (that change in elevations (z distance), I will export the sheet for construction purposes. The end goal is to have a 24x36 floor plan that shows the conduit routing but displays and change in elevations (for example, a conduit routing along run is at 98' and then transitions up to a run at 104' (x and y dimensions may or may not change but my foreman can scale that off the drawing).

Is there any easy way to accomplish this in Revit or CAD? Otheriwse, I am going in and inserting text blocks and manually entering my elevations.

Any help is appreciated!

This user is offline

ronmalit

active

Joined: Thu, Mar 29, 2012
113 Posts

hi,

not sure what is conduit racks (google is showing me a real "rack")

if you use conduit (systems>electrical>conduit) or cable tray (systems>electrical>cable tray) to house your conduit, then both of them can be tagged to show top/bottom elevations. there is no need for manually entering elevations.

This user is offline

CBISHOP7

active

Joined: Wed, Jul 9, 2014
0 Posts
No Rating

Yes, I am just using those components. How do I tag them to show top and bottom elevations as you describe? Apologies, I don't use Revit as much as I should! Thanks.

This user is offline

CBISHOP7

active

Joined: Wed, Jul 9, 2014
0 Posts
No Rating

Anyone able to help me tag a conduit or cable tray to show its elevation in the 2D drawing layout?

Thanks.

This user is offline

ronmalit

active

Joined: Thu, Mar 29, 2012
113 Posts

hi

im so sorry, i thought you will be able to figure it out yourself

well, you can use your HELP command and read about tagging.

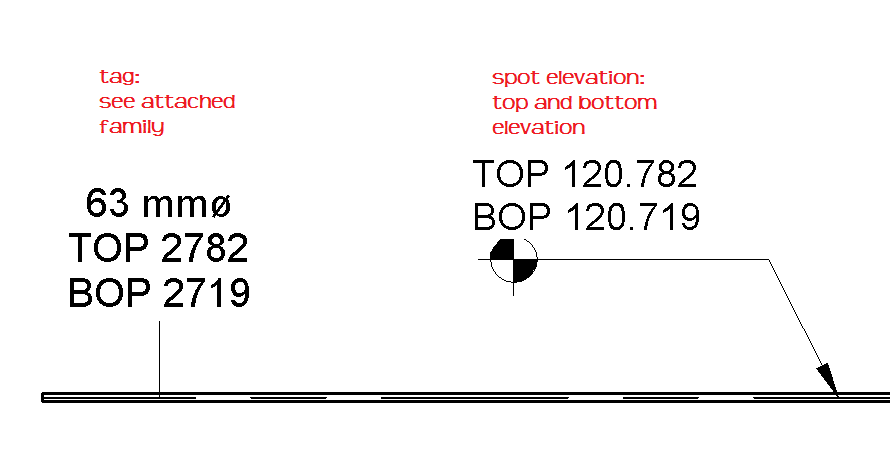

anyways. i have attached and example with 2 ways of tagging it. hope you will find it helpfull

its in revit 2013

ty

(sorry i cant attached the project.. only screenshot for you!)
