I am kinda blown away by how difficult it is to add mullions to a window. I would love to be able to add a 24"x72" fixed or casement window WITH MULLIONS. There does not appear to be anything like this with the default windows or on the Revit site online. I keep looking for a checkbox or setting to add mullions, but for the life of me, cant find one. I have looked at numerous websites for tutorials and forums for people having the same problem as me. It seems to me that having mullions on a window is a common thing. Am I wrong? I feel like I am in the Twilight Zone.
|
This user is offline |
|
![](images/spacer.gif) |
|
site moderator|||
![eldados Avatar](user_avatar/6083.jpg)
Joined: Mon, Mar 14, 2005
777 Posts
![4.5 Stars: 8 Votes](/images/stars_4.5.gif) |
you are still here with us...
to add a mullion you will need to edit the window family and add it there. you can also make it a yes/no parameter, meaning you can than have tick box you've been looking for
might be easier to download a family that has it already.
HTH
-----------------------------------
Integrator Architectural Engineering Construction KarelCAD |
This user is offline |
View Website
|
![](images/spacer.gif) |
active
Joined: Wed, Apr 2, 2008
1 Posts No Rating |
I also find this very frustrating. I do not want to create a new family of windows each time the Architect decides to change the grill pattern. I believe the grill should be a separate family attached to the window and parametric in nature. I am experimenting with face based mullions that would resize when the host window is resized but have not had much luck. If you come up with an acceptable method I would love to hear about it. I am also experimenting with curtain grids which are very cool and if you make the panels blank the can be overlayed on a window and constrained by the window edges but I am having trouble controlling what plane they wind up in.
|
This user is offline |
View Website
|
![](images/spacer.gif) |
active
![kredman Avatar](user_avatar/202799.jpg)
Joined: Mon, Nov 8, 2010
7 Posts No Rating |

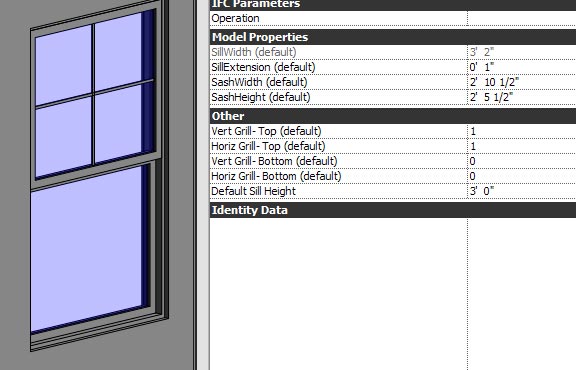

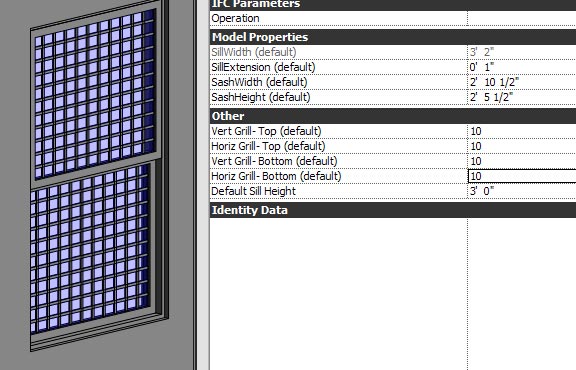

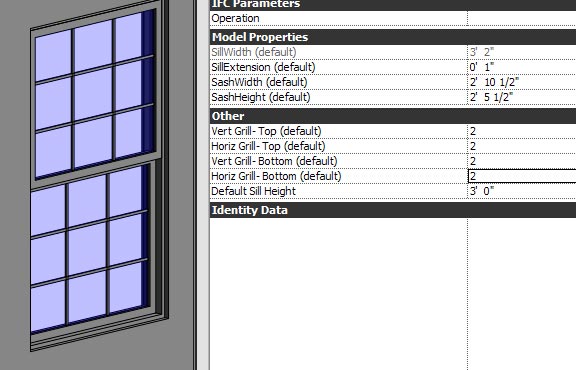

I created a way by nesting a mullion array family into my window sash. Attached are some examples of it in action. If there is any interest, I'll post how I did it.
|
This user is offline |
View Website
|
![](images/spacer.gif) |
active
Joined: Wed, Sep 10, 2008
1 Posts No Rating |
Hi Kredman, I'd be very interested to see how you created your mullion array family. Please post!
|
This user is offline |
|
![](images/spacer.gif) |
active
![kredman Avatar](user_avatar/202799.jpg)
Joined: Mon, Nov 8, 2010
7 Posts No Rating |
" Hi Kredman, I'd be very interested to see how you created your mullion array family. Please post! " Sure, I'll post a short tutorial and the rfa sometime soon!
|
This user is offline |
View Website
|
![](images/spacer.gif) |
Joined: Sat, Apr 9, 2011
1 Posts No Rating |
Hi kredman,
Can you post how you did the Muttins? I have tried to duplicate it but can't seem to figure it out. Nice job. Looks simpler comapired to others I run across.
Thx!
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Mon, Sep 23, 2013
0 Posts No Rating |
Can you please share your window.
i would like to learn how you created it and how to set up with the muntins....
thanks!
JB
|
This user is offline |
|
![](images/spacer.gif) |
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 391 Votes](/images/stars_3.5.gif) |
Folks, that poster has not been around since 2012.
Download a manufacturer window from Seek that has muttins and examine how it is made.
|
