Hi Guys,

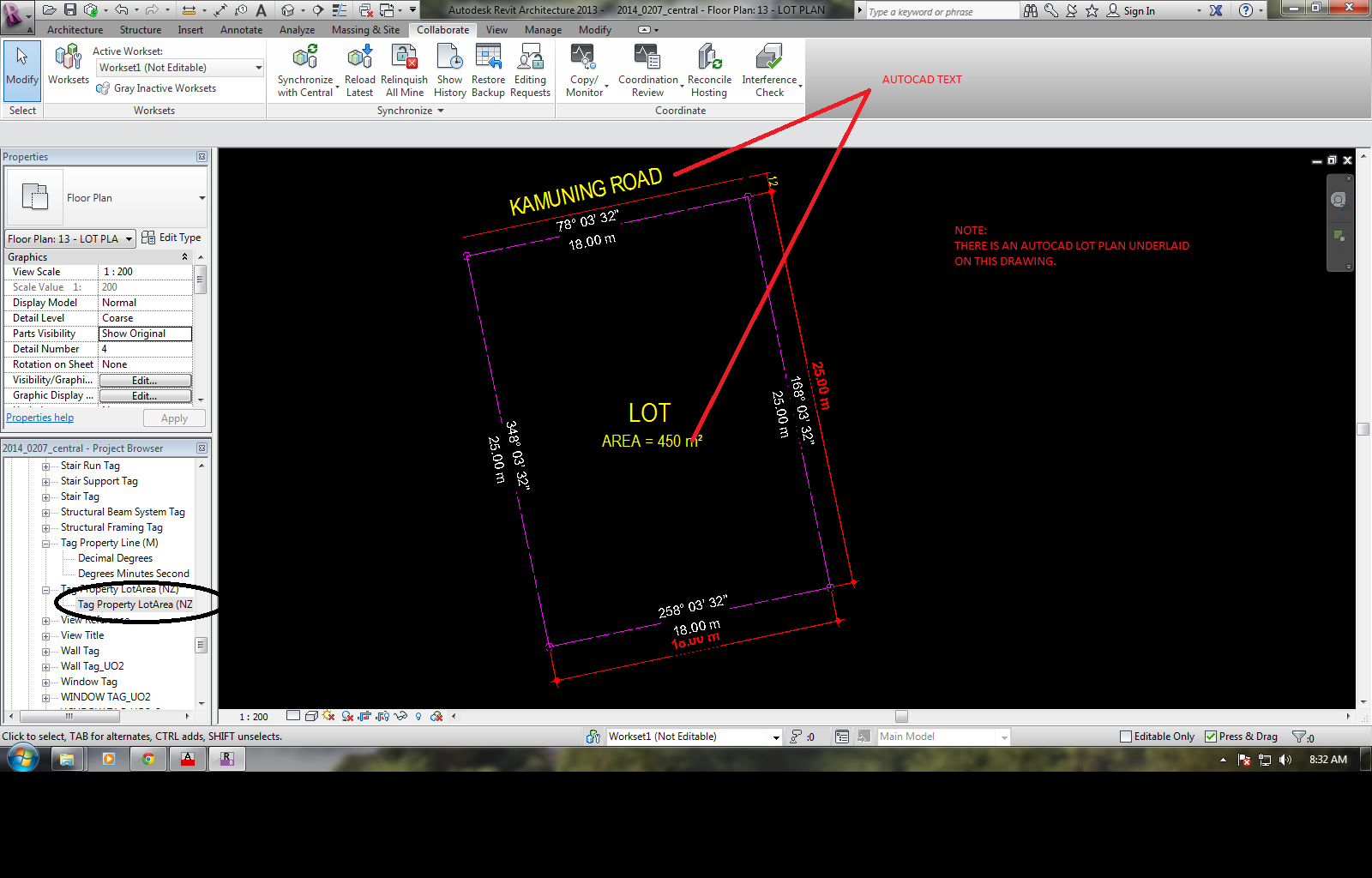

I'm having difficulty labeling my lot plan with the PROPERTY LOT AREA TAG.  It won't show on the drawing area when I drag the tag from the Project Browser (Families) and hover it within the boundary of the Lot.  Am I missing something here?

And one thing more, what tool will I use to label the lot like the street / road names, the adjacent lots, etc.  Should I simply just use the Text tool or there's a better way?

Also, i need to label the survey points of the lot. How can I do that? I'm clueless.

Hope to hear from anyone.  Thanks.

P.S. Please see attached file.

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Are the property lines in Revit - or just the CAD dwg?

In VG / annotations, do you have property tags on?

Yes - use simple text for non-taggable items like street name.

If you Survey point is correctly set, you can tag poits with the spot coordinate tag.

This user is offline

bigbrother

active

Joined: Wed, Jan 14, 2009
11 Posts
No Rating

Thank you very much WWHub.  I didn't know it was that easy.
