Hi guys,

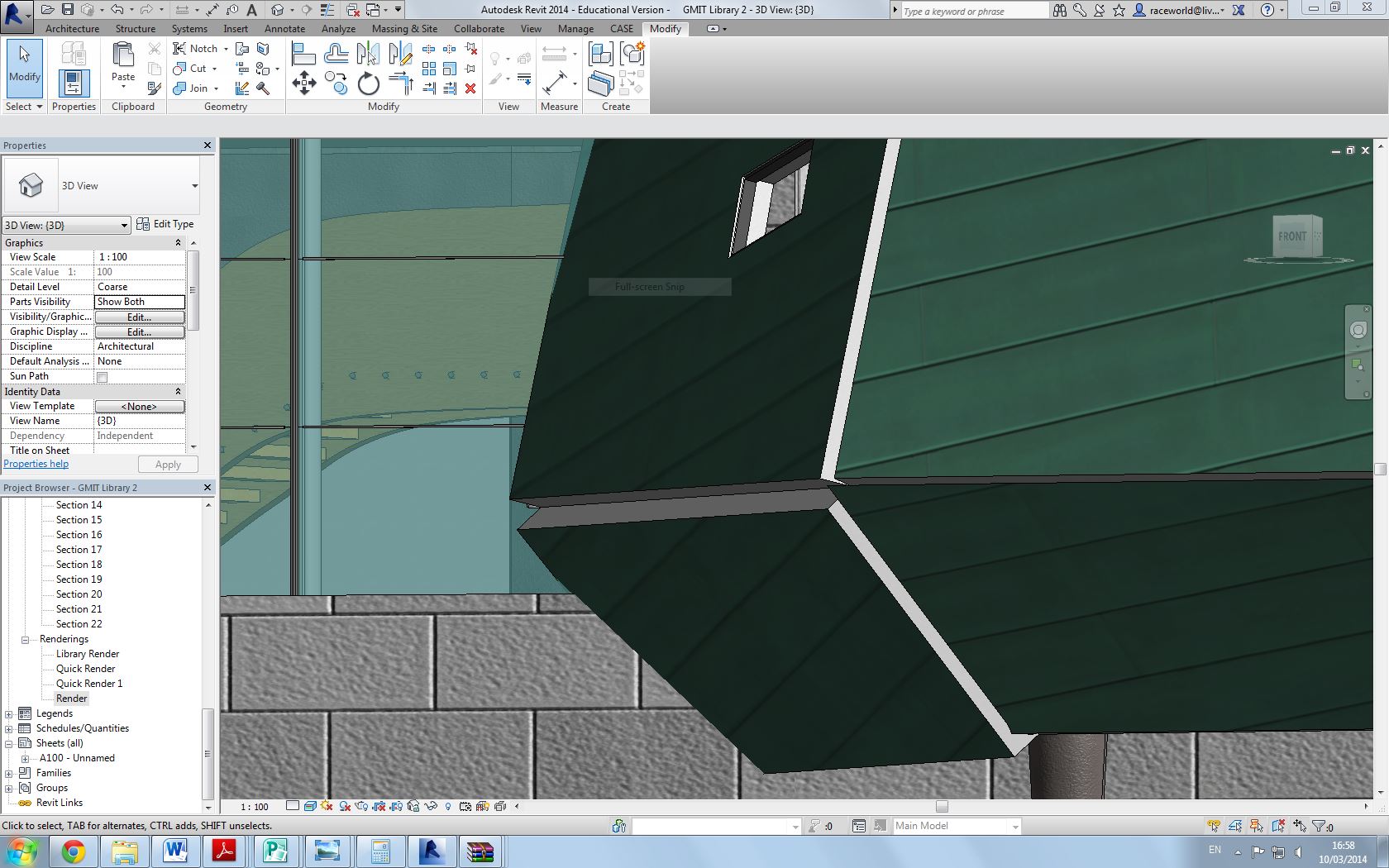

I've currnetly mid-way through a college project but I'm running into trouble joining two walls that are at an awkward angle to each other (please see image).

Can anyone shead any light on this or does anyone know a suitable workaround?

Thanks in advance,

Andy.

Attached Images

This user is offline

teafoe5

site moderator|||

Joined: Fri, Nov 12, 2010
1749 Posts

Did you create these walls using a mass?  Its hard to tell from the image what is going on exactly
