Forums >> General Discussion >> Revit Project Management >> Site Plan - Topo

stevedcnr

active

Joined: Mon, Dec 23, 2013
0 Posts
No Rating

I am creating a topo by Pick Points that I can't seem to do sharp radius for.  I am wondering what setting(s) control this function? If I do simple straight contours there is no problem. Attached is the base drawing for picking these points. If you look at that drawing when I start picking points for 1152 at the point when I get to the sharp radius point on that line the red contour line goes off and system seems to reinterpret the contours.

This user is offline

teafoe5

site moderator|||

Joined: Fri, Nov 12, 2010
1749 Posts

Your image doesn't tell us much.  Most likely you will just need to add even more points to get the desired radius, if Revit is interpreting your points wrong you will need to add more points elsewhere to "force" the contours to where you need them.

This user is offline

View Website

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Please read my posts here: http://www.revitcity.com/forums.php?action=viewthread&thread_id=31567

Contours are just an approximation.   You can also add point elevation tags to are not on the contour line if something has to be controlled.

This user is offline

markrentboi

active

Joined: Sat, Jan 4, 2014
0 Posts
No Rating

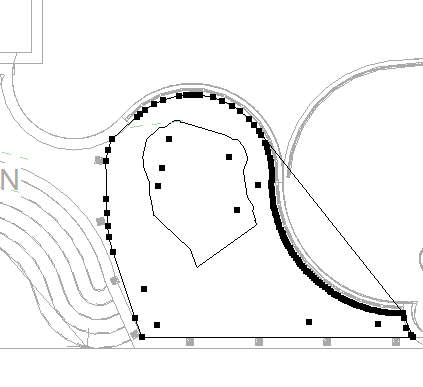

I HAVE THE SAME PROBLEM CONTROLLING THE TRIANGULATION OF MY TOPO. I ADDED POINTS ALREADY, IN THE FACT TOO MUCH! :D HOW I CAN I GO ABOUT THIS?

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

The thought that topo lines have to be in a particular location is just plain wrong!  Users that demand this don't understand what these lines represent.
