Forums >> Revit Building >> Technical Support >> What methods are there to model a panelled wall?
|
|
active
Joined: Thu, Aug 1, 2013
2 Posts No Rating |

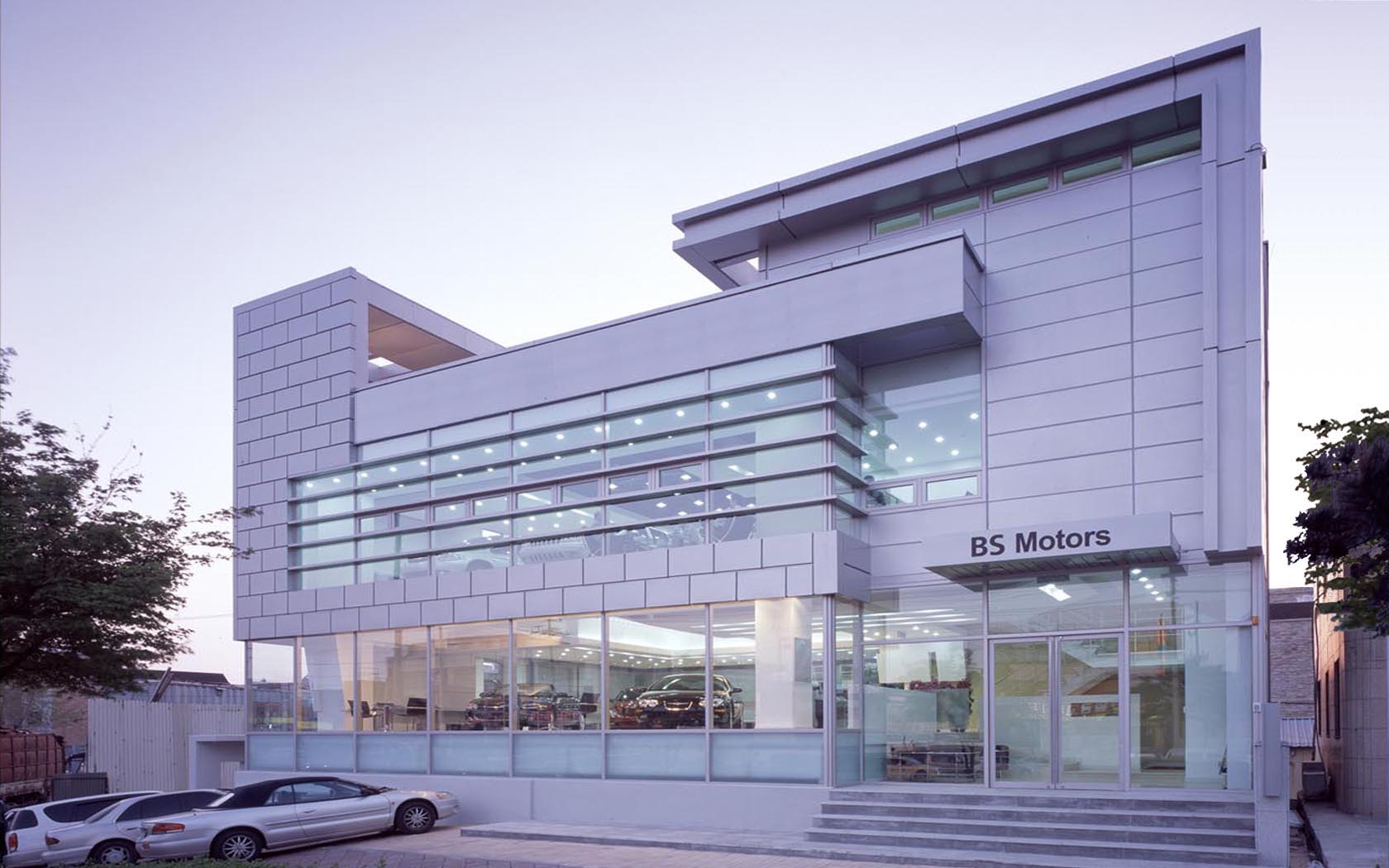

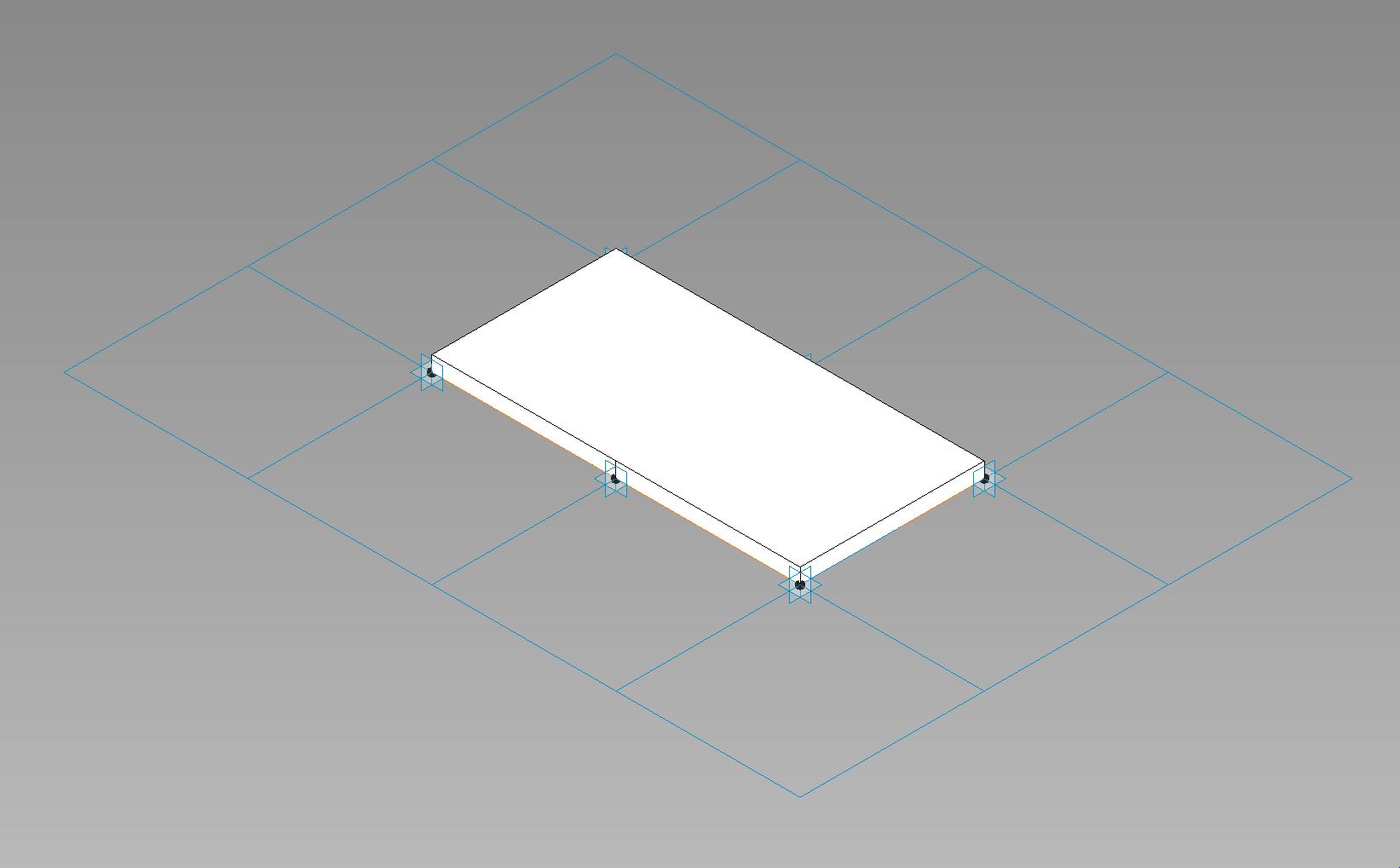

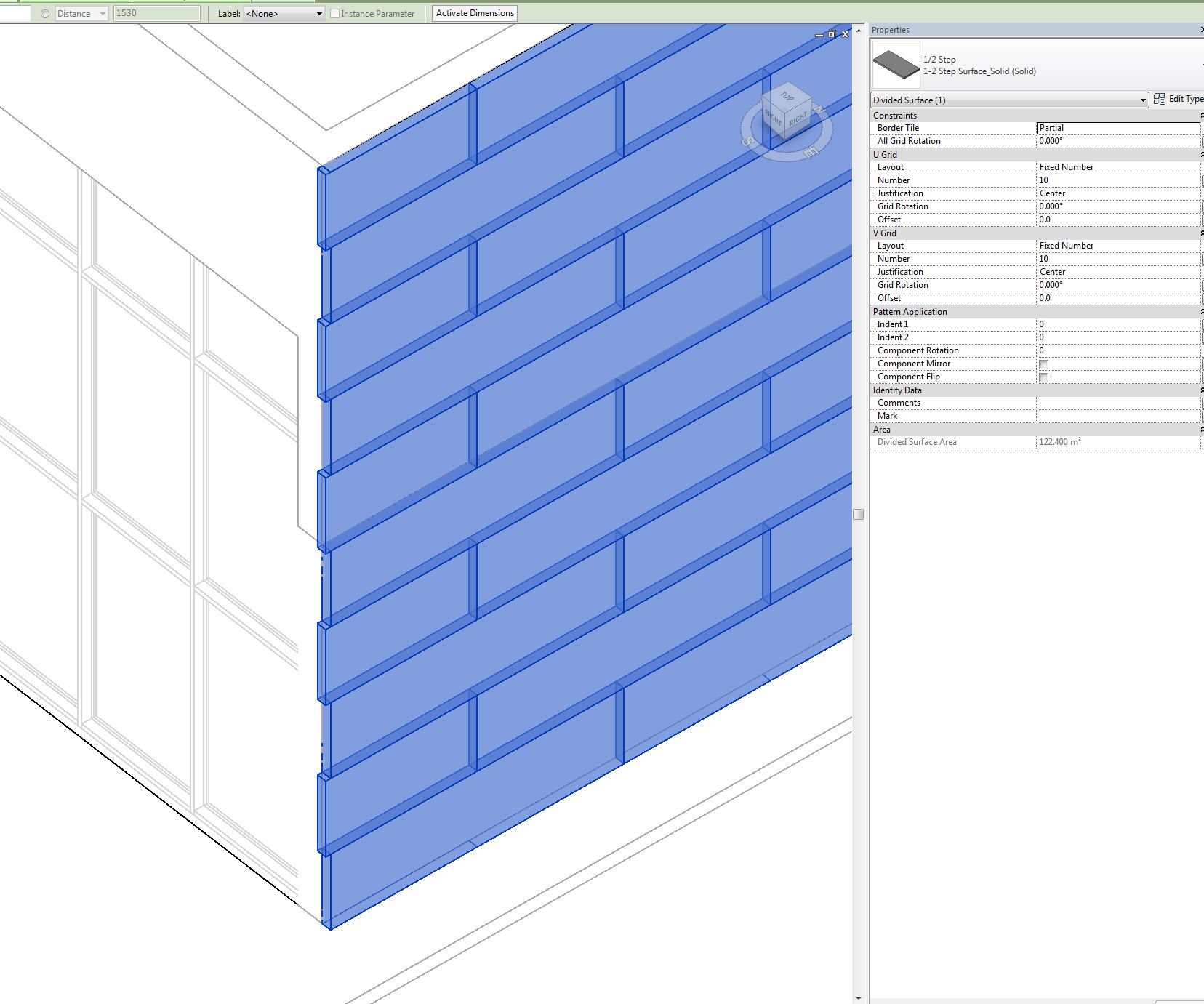

Hello, I am trying to model a facade shown in the first photo. It is a facade made with insulated metal panels. I was looking to use the divide surface method and adding pattern components to the surface, yet I came across problems with the edge panels not being flush with the surface itself, as in the 3rd photo. The panel I used for can be seen in the 2nd photo.
However, i have a feeling that this may not be the most appropriate way to model what is shown in the photo. so, how would one go about modeling such a thing?
|
This user is offline |
|
![](images/spacer.gif) |
|
active
Joined: Thu, Aug 1, 2013
2 Posts No Rating |
oops btw this is in revit 2014
|
This user is offline |
|
![](images/spacer.gif) |
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 391 Votes](/images/stars_3.5.gif) |
There is no reason to model these panels.
http://www.revitcity.com/forums.php?action=viewthread&thread_id=20779
http://www.revitcity.com/forums.php?action=viewthread&thread_id=12056
|
