Forums >> Revit Building >> Technical Support >> concrete steps on sloped sites
|
|
|
active
Joined: Fri, Nov 15, 2013
0 Posts
No Rating |
Revit version: 2014

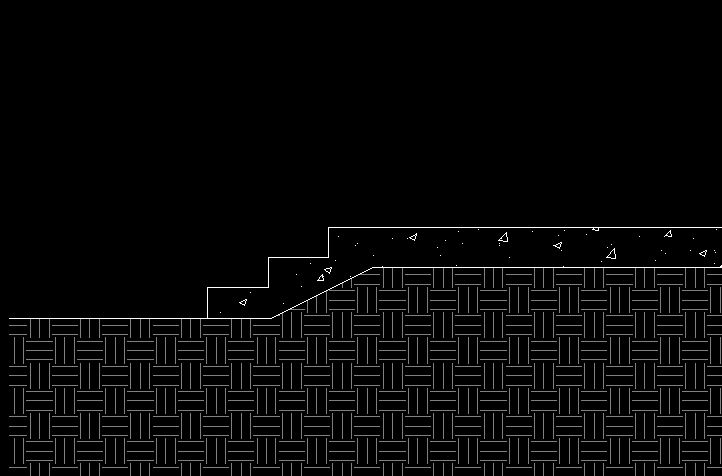

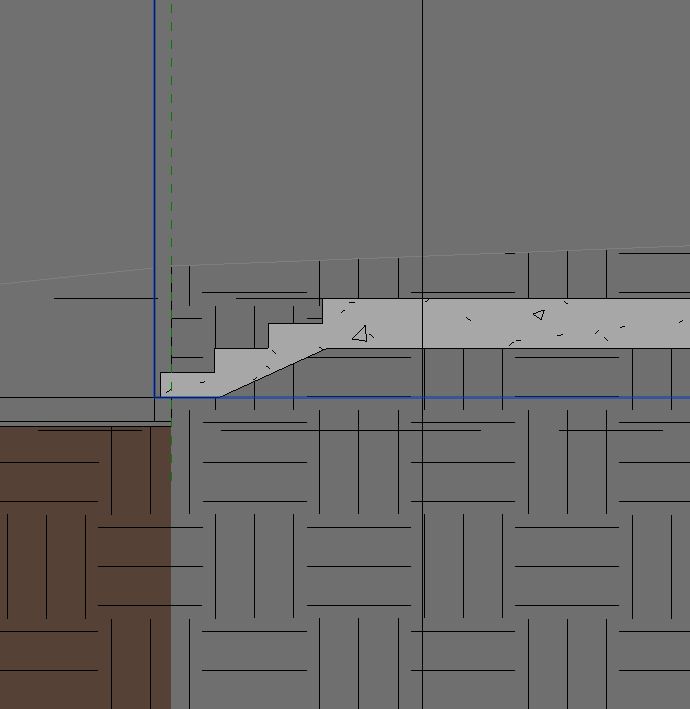

I am not sure how to explain it but I want to put concrete steps on a terrained site as in the picture(222.jpg) attached. I tried it in revit with a building pad but there's always a hole separating the earth & the stairs..I tried it without the building pad and it turned out like the second image(111.jpg)
Pleassse helppp...
-----------------------------------
Archidea |
This user is offline |
|
 | |
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |

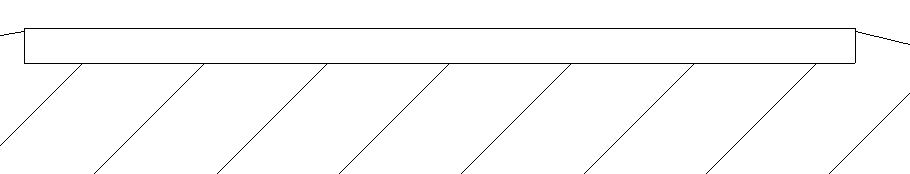

You could use multiple pads with one being sloped under the steps but why? I typically do a pad to below the stairs so topo is correct in 3D. Then in section views, I add the fill pattern where it is missing. (Non BIM - because the quantity doesn't report.)
You could also split this area out of the topo and then alter the boundry points so that the topo without the stairs would fit under this area.
|
This user is offline |
|
|
|
site moderator|||
Joined: Fri, Nov 12, 2010
1749 Posts
 |
Ah after seeing WWHubs response I get the question now.
Edited on: Wed, Dec 11, 2013 at 10:30:47 AM
|
This user is offline |
View Website
|
|
|
active
Joined: Fri, Nov 15, 2013
0 Posts
No Rating |
i see... thank you so much....
-----------------------------------
Archidea |
This user is offline |
|
|
|
