Forums >> Revit Structure >> Technical Support >> Thickened Slab not joint properly

azsaqib

active

Joined: Sat, Dec 7, 2013
0 Posts
No Rating

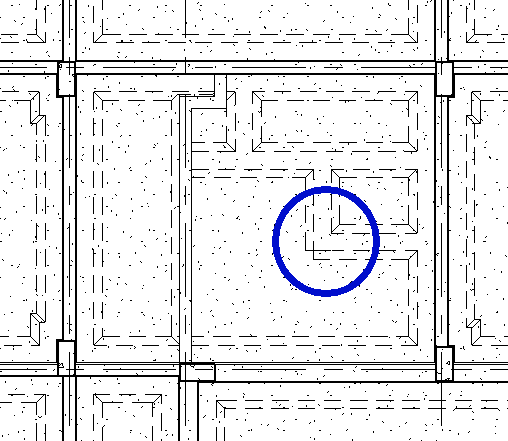

Please see the attach files and help why the slab edge  TS1 Detail) are not join properly. Thanks

Attached Images

Attached Files 126635_T-0201S202-R00-Ref.pdf

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

In order to have any sweep in Revit join properly, it needs to be done in a series, not seperate sweeps.  Remove your independent sweeps then click on the one remaining and add edges to that to create the rest of the sweep.

This user is offline

azsaqib

active

Joined: Sat, Dec 7, 2013
0 Posts
No Rating

i did not use sweep command here it is slab edge................i don't know how to use sweep for thickend slab in project neither i find sweep tool in my project. Can you Please guide me how to do that. Thanks

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

A slab edge IS a sweep, so is a cornice.  They use the sweep process but in a pre-set fashion.  Use the slab edge and do as I suggested - one operation, not multiple.

This user is offline
