Forums >> Revit Building >> Technical Support >> Arched wall lintel over an window

tksergiu

active

Joined: Fri, Jul 26, 2013
3 Posts

Hello!

I would like to create a component that simulates an arched lintel over an window or a door made out of brick. The hard part is to make the brick material to follow the arched shape, something like in this photo

Thanks

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

http://www.revitcity.com/forums.php?action=viewthread&thread_id=16075

This user is offline

tksergiu

active

Joined: Fri, Jul 26, 2013
3 Posts

Thank you for replying. Unfortunetly none of the video links posted to that thread are available anymore. I sent Typhoon an email asking him for the video but he didn't reply yet

This user is offline

Typhoon

site moderator|||

Joined: Tue, May 22, 2007
5921 Posts

I don't have the videos anymore, MEGAUPLOAD is gone and I don't have time to create videos right now but create a Wall (Face) based family with that brick then in project use the Radial ARRAY, it's very simple...

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline

dingohot

active

Joined: Mon, Mar 15, 2010
199 Posts

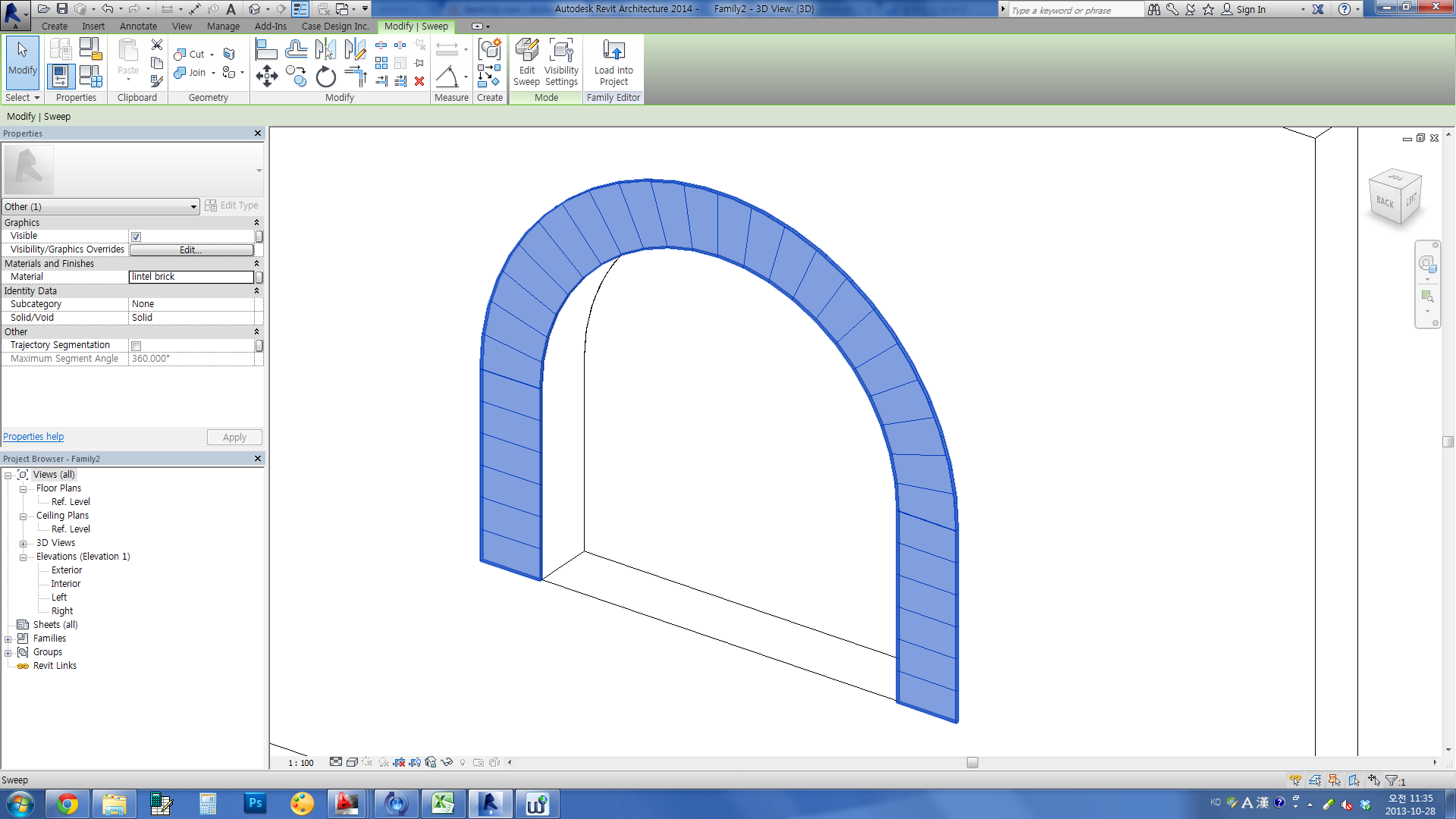

if you don't want complicated model, you can make it with pattern like this.

http://youtu.be/4479DdEyOXg

Attached Images

-----------------------------------

want more?

You can get more tips at Enjoy Revit
