Hi, i'm new to revit and would like to know how to set layered visibility on objects or a similar feature.I'm tryn to build a roof where i have the framing into the roof and need it to display realistically in a section.The roof cut shading seems to have priority over the beam cut shading and i need those beams to stand out from the roof in shaded section view

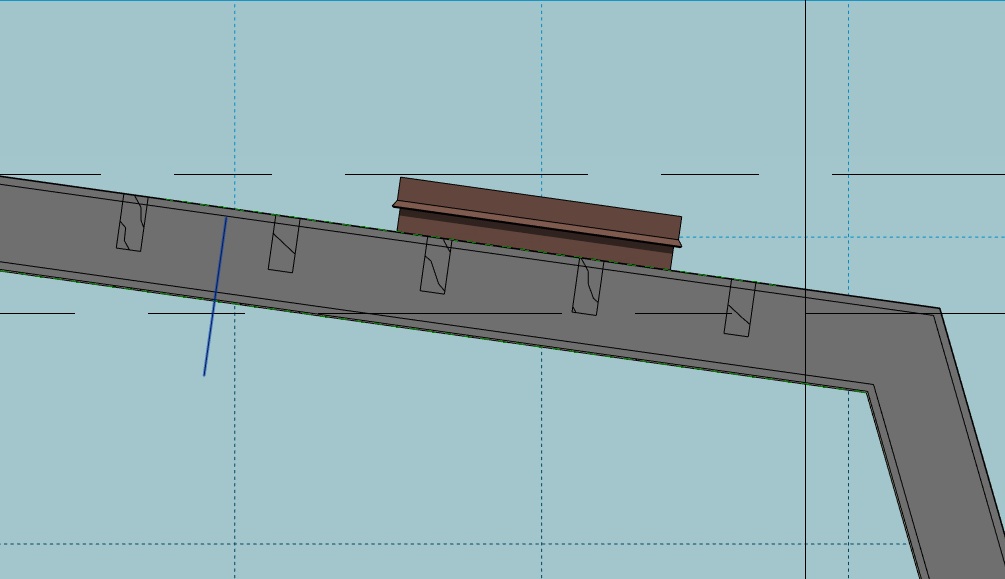

Here's a photo

Any help pls?Thnx

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

You know what you mean but you have not expressed it.  My best guess - change the material color.

This user is offline

alexandru877

active

Joined: Wed, Aug 28, 2013
2 Posts
No Rating

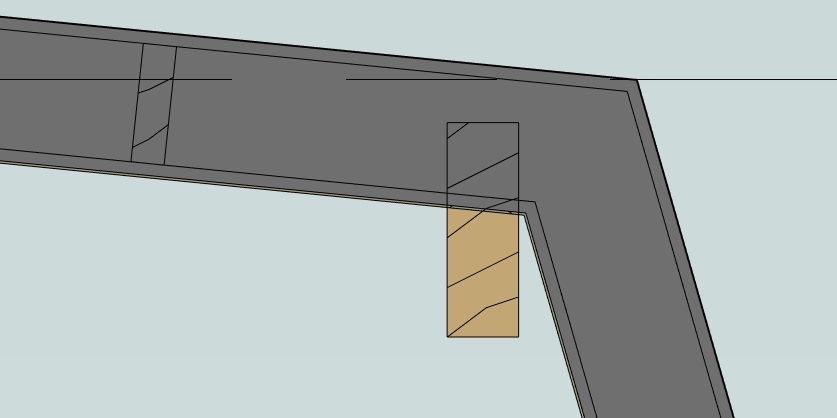

My english is not much better than my revit skills .I'm tryn to just have the thing visible, autocad style, with layers.The colors are different but i don't know where visibility rules are, who has priority.I will bump into this a lot so ... the colors are different .. i attached a new pic

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Typically, there are no priorities.  A solid in front of another solid will be solid and the element behind will not show through.  There are some over-rides that can be applied by category, instance, phase or filter but the default is as I initially stated.
