Hi all,

I am new at Revit and I have a problem with deleting the grid lines. I have unpined it and click on delete, but it's still there and won't delete. Do you all have a solution?

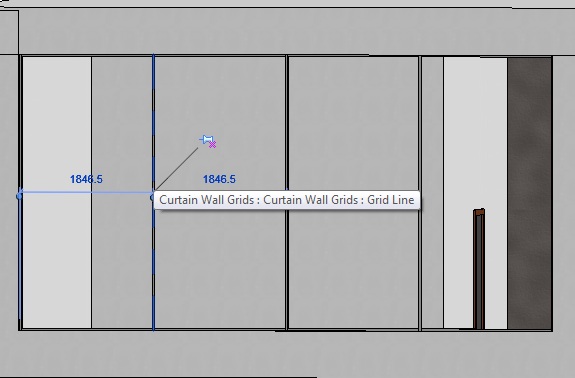

I attached a pic, it's how the grid line still stand after the delete key.

Thanks for your replay.

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Your curtain wall has an automatic spacing.  I always tell my users to change the CW to a fully manual type after initial placement so that it can be modified.

This user is offline

manb

active

Joined: Fri, May 3, 2013
10 Posts
No Rating

So I can't change aything now?

Or I have to place a new curtain wall with manual type, so i can modifie the cw then as i want?

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Change the CW to a manual type....Then you can delete the grid without any problems.

This user is offline

renatolemus

active

Joined: Mon, Apr 21, 2008
24 Posts
No Rating

yeap, select your curtain wall, in its properties there must be an option for changing the number of vertical and horizontal grid lines to a fixed number instead of a fixed distance, then you can change the number of segments in both axis

This user is offline

manb

active

Joined: Fri, May 3, 2013
10 Posts
No Rating

thank you all, it really helped me.
