Forums >> Revit Structure >> Technical Support >> window doesnt show in cut plain

Warchitect

active

Joined: Wed, Aug 20, 2008
318 Posts

I have been having this problem for a while now.

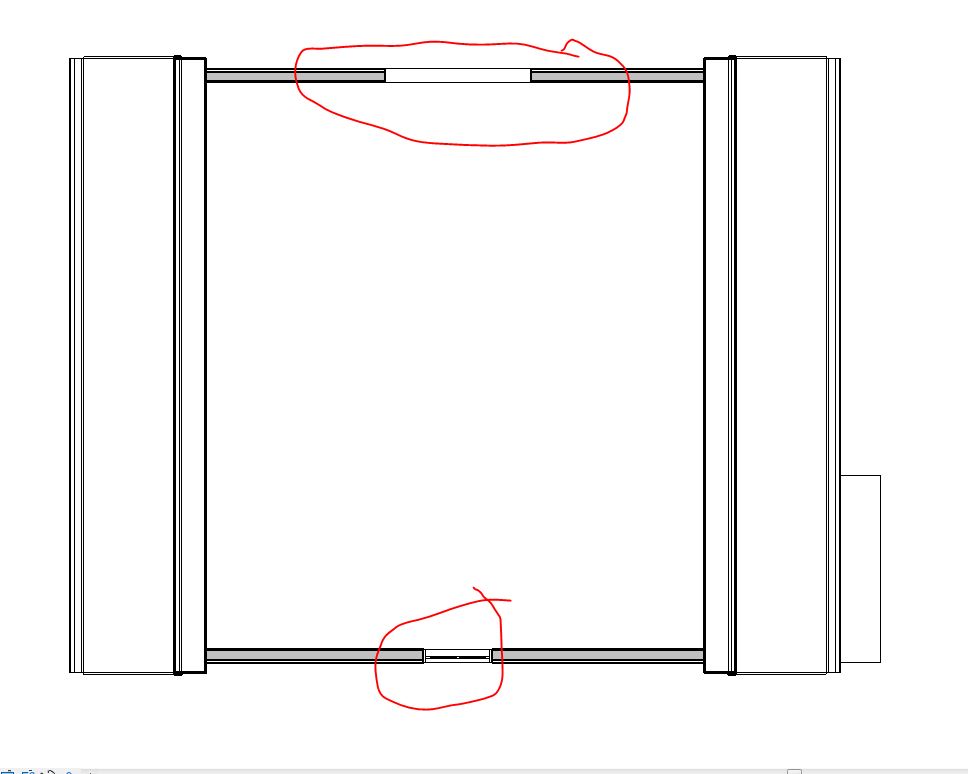

Sometimes I build a window and when I insert it into my project the cut plain cuts it, but doesn not show it. I have adjusted the cut plain a bunch, but nothing in this regard changes. does anyone know how to fix this, or what Im doing wrong?

Thanks in advance,.

edit: here is the file stripped down. DUDE I CANT EDIT THIS POST!!!!

Edited on: Wed, Aug 21, 2013 at 1:11:11 PM

Edited on: Wed, Aug 21, 2013 at 1:11:31 PM

Edited on: Wed, Aug 21, 2013 at 1:12:05 PM

Attached Images

This user is offline

View Website

Warchitect

active

Joined: Wed, Aug 20, 2008
318 Posts

here is the stripped down version...if this site lets me post anymore..:-(

This user is offline

View Website

Warchitect

active

Joined: Wed, Aug 20, 2008
318 Posts

Im sorry. I figured it out.

the actual 3d parts in the window had their visibility turned off in plan view.
