Forums >> Revit Building >> Technical Support >> tilted slab edge !!!
|
|
active
Joined: Fri, Jul 12, 2013
23 Posts No Rating |

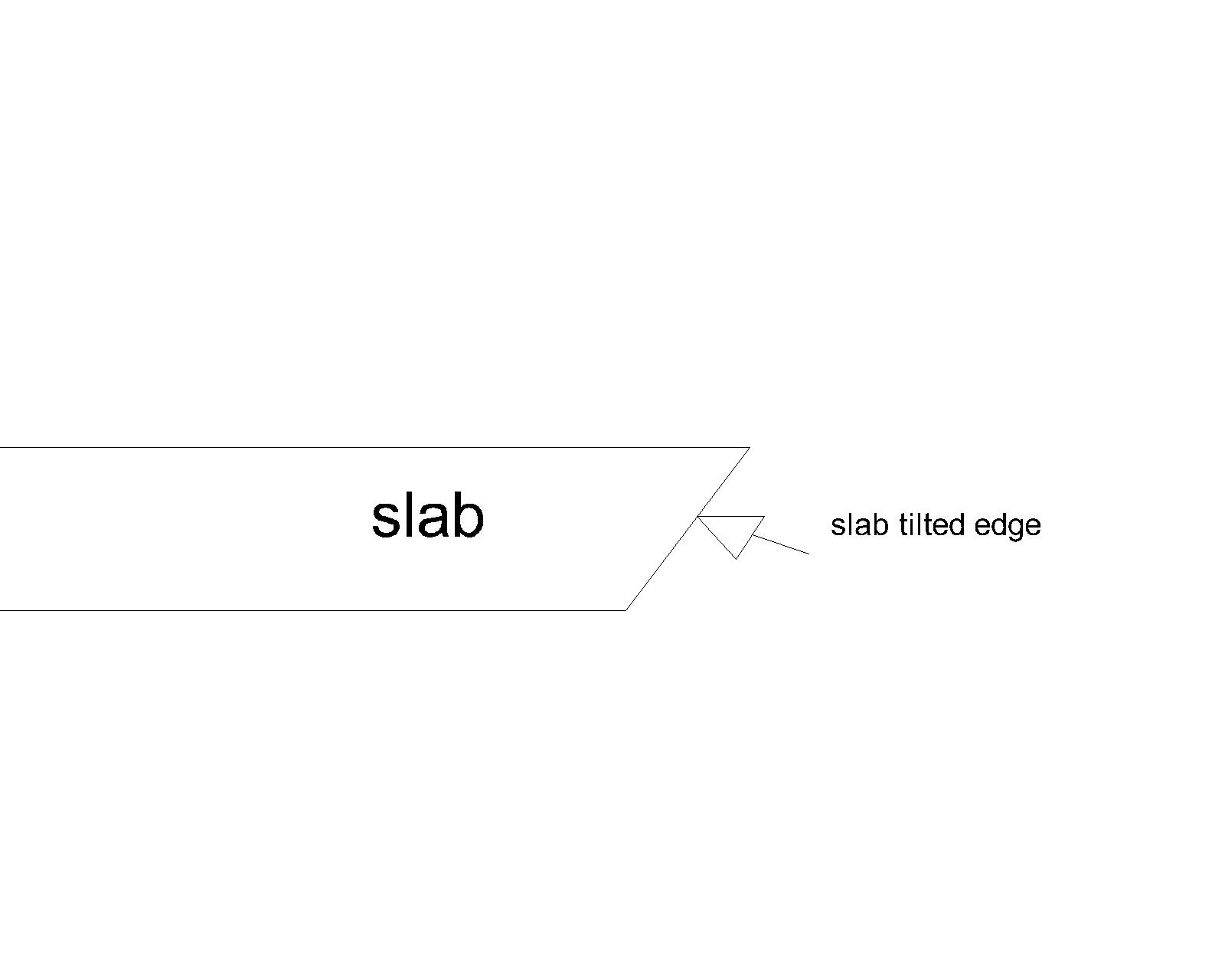

is there anyway to make a tilted slab edge .. like the shown on the attachement ...
|
This user is offline |
|
![](images/spacer.gif) |
|
active
![dingohot Avatar](user_avatar/155924.jpg)
Joined: Mon, Mar 15, 2010
199 Posts
![3.5 Stars: 5 Votes](/images/stars_3.5.gif) |
try with Model in-place.
creat void sweep that follows original slab edge with Model in-place tool, and cut the slab with the void.
this is a simular case.
http://youtu.be/p9vExWmqybs
-----------------------------------
want more?
You can get more tips at Enjoy Revit |
This user is offline |
View Website
|
![](images/spacer.gif) |
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 391 Votes](/images/stars_3.5.gif) |
No need for model in place. Just use a slab edge - under the floor pull down. That can be positive or negative and will join correctly at corners.
|
This user is offline |
|
![](images/spacer.gif) |
active
![dingohot Avatar](user_avatar/155924.jpg)
Joined: Mon, Mar 15, 2010
199 Posts
![3.5 Stars: 5 Votes](/images/stars_3.5.gif) |
"
No need for model in place. Just use a slab edge - under the floor pull down. That can be positive or negative and will join correctly at corners.
"
That's right. but i feel more comfotabe to use MIP just for cut something..
beacause after cut something, i don't have to take care about voids. they are invisible and no need calculation.
-----------------------------------
want more?
You can get more tips at Enjoy Revit |
This user is offline |
View Website
|
![](images/spacer.gif) |
active
Joined: Fri, Jul 12, 2013
23 Posts No Rating |
"
No need for model in place. Just use a slab edge - under the floor pull down. That can be positive or negative and will join correctly at corners.
"
but how can i cut from the slab using the slab edge .... thank you ..
|
This user is offline |
|
![](images/spacer.gif) |
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
![3.5 Stars: 391 Votes](/images/stars_3.5.gif) |
The last time I did this, I probably didn't do a negative but an added edge with a slope ... so an in-place void sweep (floor category) will work as dingohot says.
|
This user is offline |
|
![](images/spacer.gif) |
active
Joined: Fri, Jul 12, 2013
23 Posts No Rating |
ya thats what i assumed ... thank you anyway ![Smile](/images/smiles/smile.gif)
|
